29. Remove Shims and metering assembly from
metering ring.

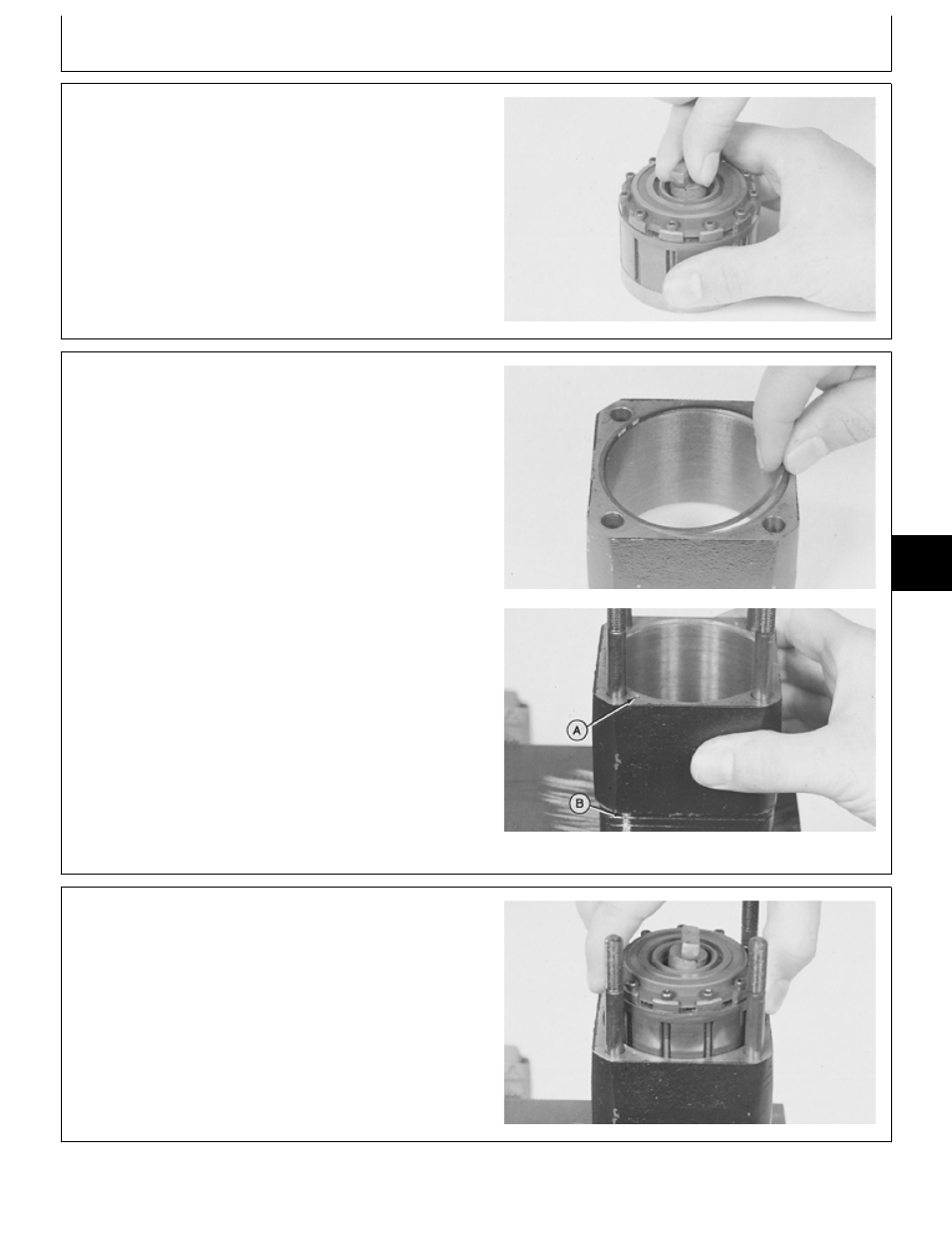

30. Install THICK end of drive link into the slot in the
rotor. Hold the drive link and rotate the metering
assembly by hand. The rotor should turn freely inside the
stator.
If the rotor binds or does not move, disassemble and
inspect to find the cause.
M36866
-UN
-29AUG88
31. Apply petroleum jelly on seal ring. Install seal ring on
metering ring end without pin holes.
IMPORTANT: Align pin hole (A) in metering ring with
groove (B) on upper cover plate so that
remaining parts can be aligned
correctly.
32. Install metering ring over bolts with pin holes up.
M36867
-UN
-29AUG88
M36879
-UN
-29AUG88
33. Apply multipurpose grease on drive plate surface.
34. Install metering assembly, with drive plate down, into
metering ring. Turn metering assembly until the steering
shaft engages the drive plate hole. When properly
seated, the metering assembly is below the surface of
the metering ring.
M36868
-UN
-29AUG88
MX,15906006,43 -19-29MAR95
MX,15906006,44 -19-01MAR95
MX,15906006,45 -19-01MAR95
Steering—318 and 420/Steering Valve
TM1590 (17MAY95)
60-06-17
