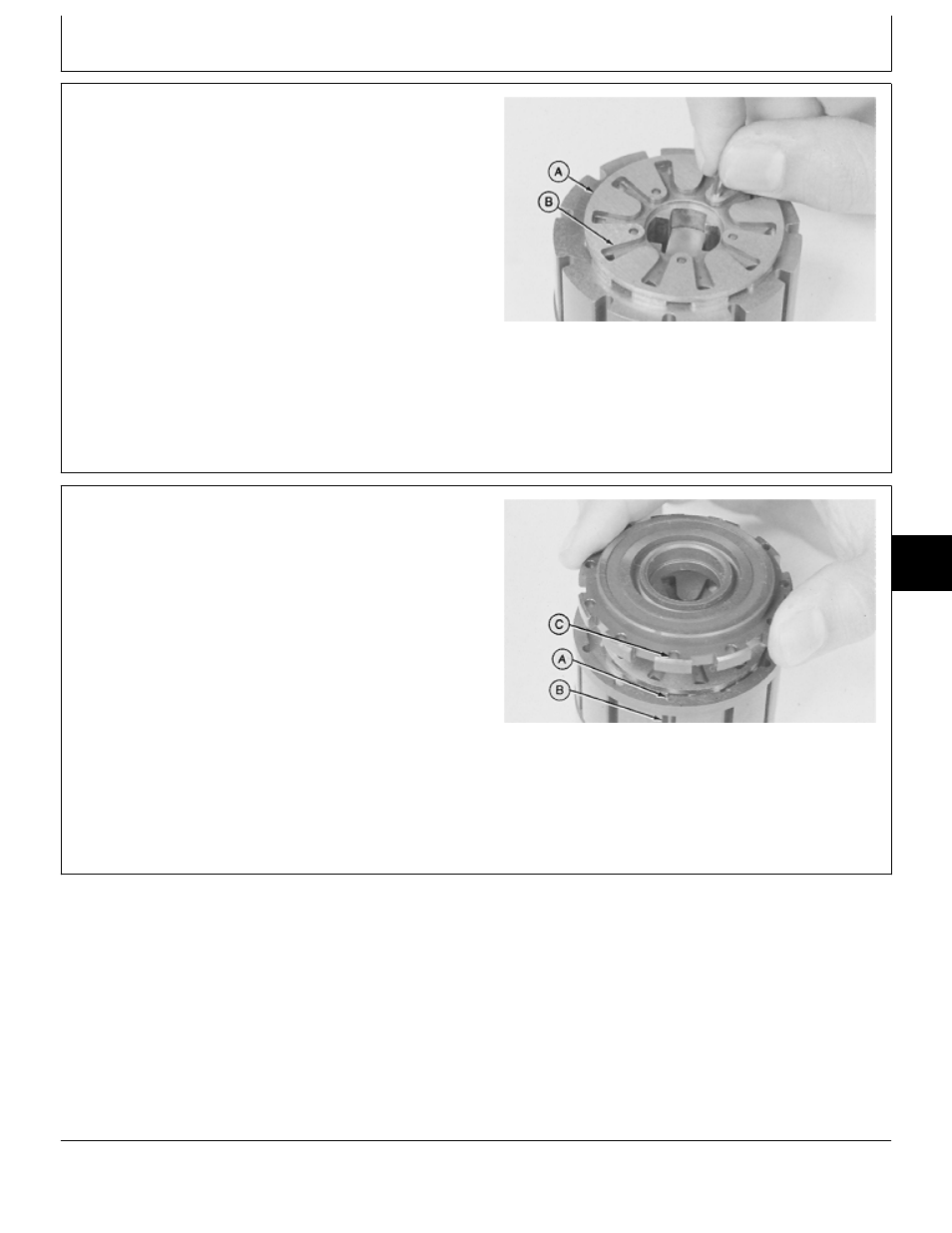

19. Install commutator (A) on rotor, with long grooves (B)
upward.
IMPORTANT: Pins must be installed below the
surface of the commutator to prevent
commutator cover damage.
20. Align commutator holes with rotor holes and install
five pins.
21. Put a few drops of clean John Deere Low Viscosity
HY-GARD
® oil into each groove of the commutator.
M36862
-UN
-29AUG88
22. Align commutator ring slots (A) with stator slots (B)
and install commutator ring.
23. Align commutator cover holes (C) with commutator
ring slots. Install commutator cover with flat surface
toward commutator.
24. Clean screw threads using Clean and Cure Primer.
Apply Thread Lock and Sealer (low strength) to threads
of commutator cover-to-commutator screws.
25. Install 11 screws into metering assembly. DO NOT
tighten screws at this time.
M36863
-UN
-29AUG88
MX,15906006,39 -19-01MAR95
MX,15906006,40 -19-01MAR95
Steering—318 and 420/Steering Valve
TM1590 (17MAY95)
60-06-15
316, 318 & 420 Lawn and Garden Tractors
