2. Components and Specifications
An EZ-SCREEN System includes a compatible emitter and receiver (equal length and
resolution; available separately or in pairs), and two cables. Mounting hardware is
included with each emitter and receiver. Interfacing solutions include IM-T-.. modules,
redundant positively guided contactors, or an optional muting module; see Section 2.4.
Standard models (as listed in the following tables) feature a yellow painted aluminum
housing. Other housing finishes are also available, including black, white, and silver
(nickel-plated); contact the factory for more information.
Standard models are listed with integral QD fitting; for a 300 mm (12") pigtail with M12/
Euro-style 8-pin QD fitting, replace the “Q” in the model number with “P”. The 13 mm
(0.5") minimum bend radius accommodates low-clearance installations. When used in
a cascade installation, the pigtail models can reduce the number of cables and improve
clearance and cable management.
Electro-static Dissipative Models
Electro-static dissipative (ESD-safe) versions with nickel-plated housing are also
available, with a static-dissipative polymer coating which protects nearby components
from damaging ESD voltages.
NOTE: ESD-safe models are not available with the pigtail QD option.

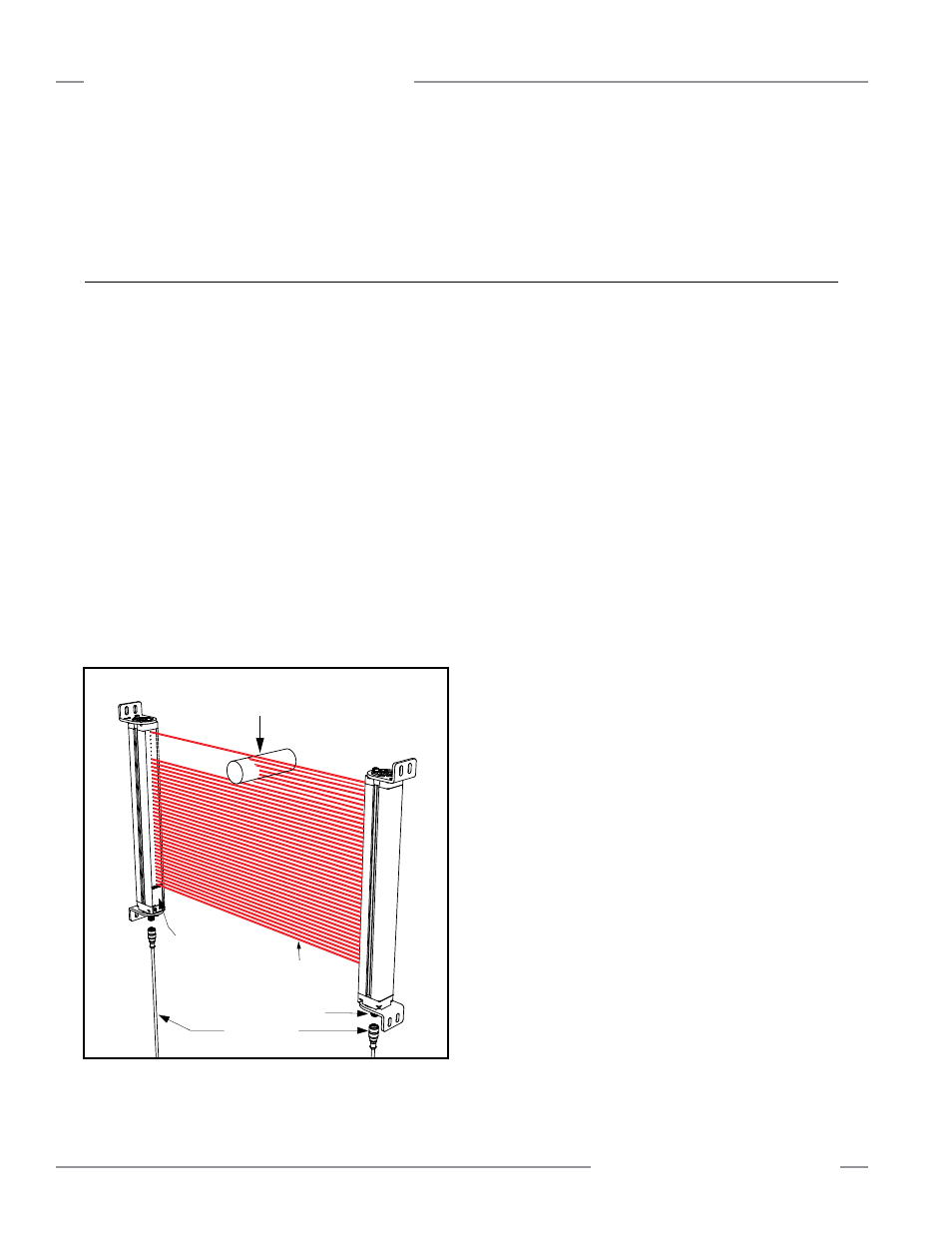

Figure 2-1. Banner EZ-SCREEN: emitter, receiver, and two
interconnecting cables
Receiver
Emitter
Specified Test Piece
(2 diameters supplied
with each receiver)
Status indicators
and configuration
switches behind
clear access panel
Defined
Area
QD Fitting
QD Cordsets
