EZ-SCREEN
Instruction Manual
System Operation

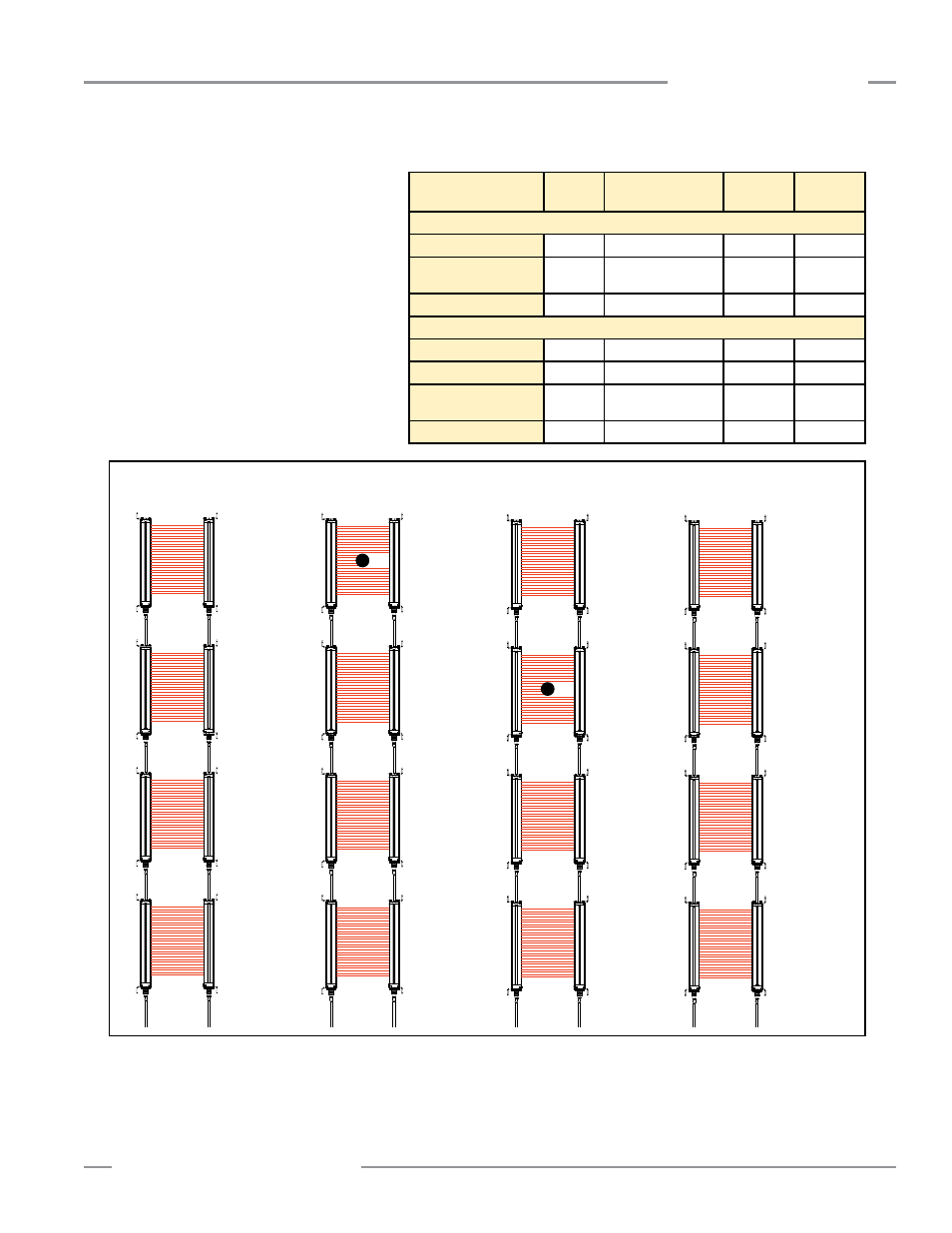

Figure 4-7. Cascade indicator status conditions
EZ-SCREEN Cascade Diagnostics
Condition OSSDs Display
Reset
Indicator
Status
Indicator
Receiver #1 (Master)
Clear
ON L ON Green
CSSI Stop (Receiver
#2, 3, or 4 is blocked)
OFF |– – –| ON Red
Latch OFF L Flashing Red
Receiver #2, 3, or 4
Clear
ON – ON Green
Blocked OFF # Beams blocked ON Red
CSSI Stop (Receiver
upstream is blocked)
OFF |– – –| ON Red
Cleared ON – ON Green
Status Indicators for Cascaded Applications
When multiple light screens are cascaded, some
unique indications may occur, as indicated in
Figure 4-7 and in the table at right.
When a receiver’s CSSI input is in a Stop
condition (because of a blocked light screen
further upstream in the cascade, or because of a
Stop signal from an E-stop button, for example),
the display on the downstream receivers, including
the master receiver, will be bracketed by a pair
of vertical “goalposts.” See Section 5.1.1 for an
illustration.
Config: Trip
Display: ―
OSSDs: ON
Reset: ON
Status: Green
Cascade Powered Up
Clear
Object is Blocking
Light Screen #4
Object is Blocking
Light Screen #3
Object Has Been Removed;
Cascade is Waiting for Reset
Config: Latch
Display:│- - -│
OSSDs: OFF
Reset: ON
Status: Red Config: Latch
Display:│- - -│
OSSDs: OFF
Reset: ON
Status: Red
Config: Trip
Display:│- - -│
OSSDs: OFF
Reset: ON
Status: Red
Config: Latch
Display: L
OSSDs: OFF
Reset: Flashing*
Status: Red
Config: Trip
Display: ―
OSSDs: ON
Reset: ON
Status: Green
Config: Trip
Display: ―
OSSDs: ON
Reset: ON
Status: Green
Config: Trip
Display:│- - -│
OSSDs: OFF
Reset: ON
Status: Red
Config: Trip
Display:│- - -│
OSSDs: OFF
Reset: ON
Status: Red
Config: Trip
Display: ―
OSSDs: ON
Reset: ON
Status: Green
Config: Trip
Display: # beams
blocked
OSSDs: OFF
Reset: ON
Status: Red
Config: Trip
Display: ―
OSSDs: ON
Reset: ON
Status: Green Config: Trip
Display: # beams
blocked
OSSDs: OFF
Reset: ON
Status: Red
Config: Latch
Display: L
OSSDs: ON
Reset: ON
Status: Green
Config: Trip
Display: ―
OSSDs: ON
Reset: ON
Status: Green
Config: Trip
Display: ―
OSSDs: ON
Reset: ON
Status: Green
* Waiting for reset
