Components and Specifications
Banner Engineering Corp. • Minneapolis, U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
Components and Specifications

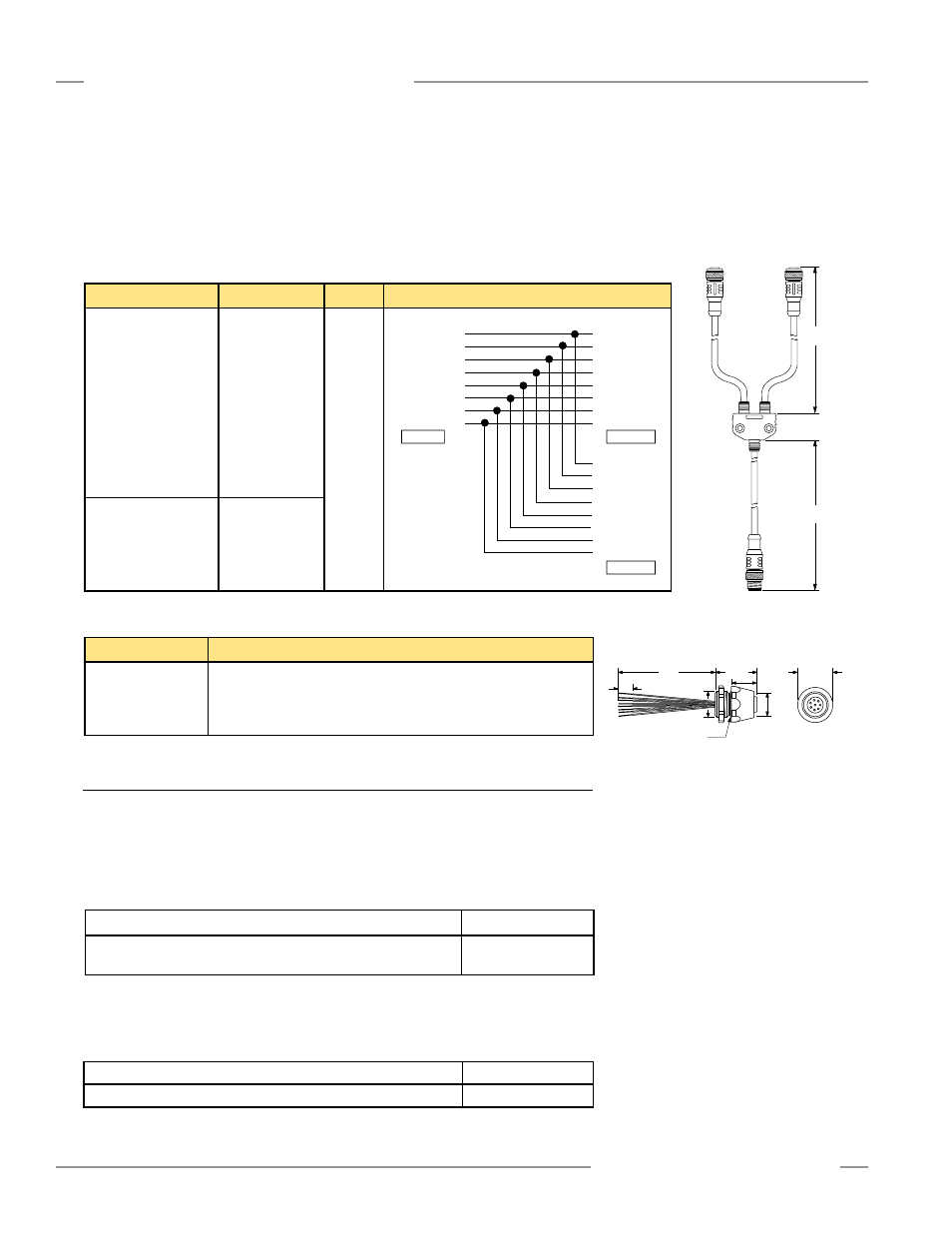

Splitter Cordsets
Model CSB splitter cordsets allow easy interconnection between an EZ-SCREEN 8-pin receiver and its
8-pin emitter, providing a single “homerun” cable for the optional “swapable” hookup (see Figure 3-16).
The model DEE2R-.. double-ended cables described on page 8 may be used to extend the lengths of
the QD trunk, branch #1, or branch #2. (Branch #1 and branch #2 cable sections are 300 mm/1'
long.) The model QDE-8..D single-ended cables may be used to extend the QD trunk for cut-to-length
applications.
2.4 Accessories
Additional interfacing solutions and accessories continue to be added; refer to
www.bannerengineering.com for a current list.
Interface Modules
Provide forced-guided, mechanically-linked relay (safety) outputs for the EZ-SCREEN.
See Banner data sheet p/n 62822 and Figure 3-23 for more information.
Contactors
The N.C. contacts are to be used in an External Device Monitoring (EDM) circuit. If used,
two contactors per EZ-SCREEN System are required. (See Figure 3-18.)
Interface module (3 N.O. redundant-output 6 amp contacts) IM-T-9A
Interface module (2 N.O. redundant-output 6 amp contacts, plus 1
N.C. auxiliary contact)
IM-T-11A
10 amp positive-guided contactor 3 N.O., 1 N.C. 11-BG00-31-D-024
16 amp positive-guided contactor 3 N.O., 1 N.C. BF1801L024
Model Number Trunk Length Wire Pinout
CSB-M1281M1281
CSB-M1288M1281
CSB-M12815M1281
CSB-M12825M1281
0.3 m (1')
2.4 m (8')
4.5 m (15')
8 m (25')
22
gauge
CSB-UNT825M1281
8 m (25')
(unterminated)
Pin #1 (+24V dc)
Pin #2 (EDM#2)
Pin #3 (EDM#1)
Pin #4 (OSSD#2)
Pin #5 (OSSD#1)
Pin #6 (0V dc)
Pin #7 (GND)
Pin #8 (RESET) Pin #1 (+24V dc)
Pin #2 (EDM#2)
Pin #3 (EDM#1)
Pin #4 (OSSD#2)
Pin #5 (OSSD#1)
Pin #6 (0V dc)
Pin #7 (GND)
Pin #8 (RESET)
Pin #1 (+24V dc)
Pin #2 (EDM#2)
Pin #3 (EDM#1)
Pin #4 (OSSD#2)
Pin #5 (OSSD#1)
Pin #6 (0V dc)
Pin #7 (GND)
Pin #8 (RESET)
M12 Male
or
unterminated
M12 Female
M12 Female
300 mm
(1.0')
see
table
Bulkhead Connector
Model Number Description
PMEF-810D
Connector for panel connection of EZ-SCREEN emitter and receiver
cables. 8-pin Euro-style female connector with 3 m (10') wires cut to
length (Banner color code); 22 gauge.
3 m
(9.8')
21.5 mm
(0.85")
13.0 mm
(0.51")
M12 x 1
O-Ring
1/4-18NPT
ø 18.0 mm
(0.71")
7.0 mm
(0.28")
