Hardware features, Segment display – Rockwell Automation AutoMax ControlNet Communication Interface Module User Manual
Page 13
AutoMax ControlNet Module Page
13
Publication number DSMBCN-UM001B-EN-P February 2003

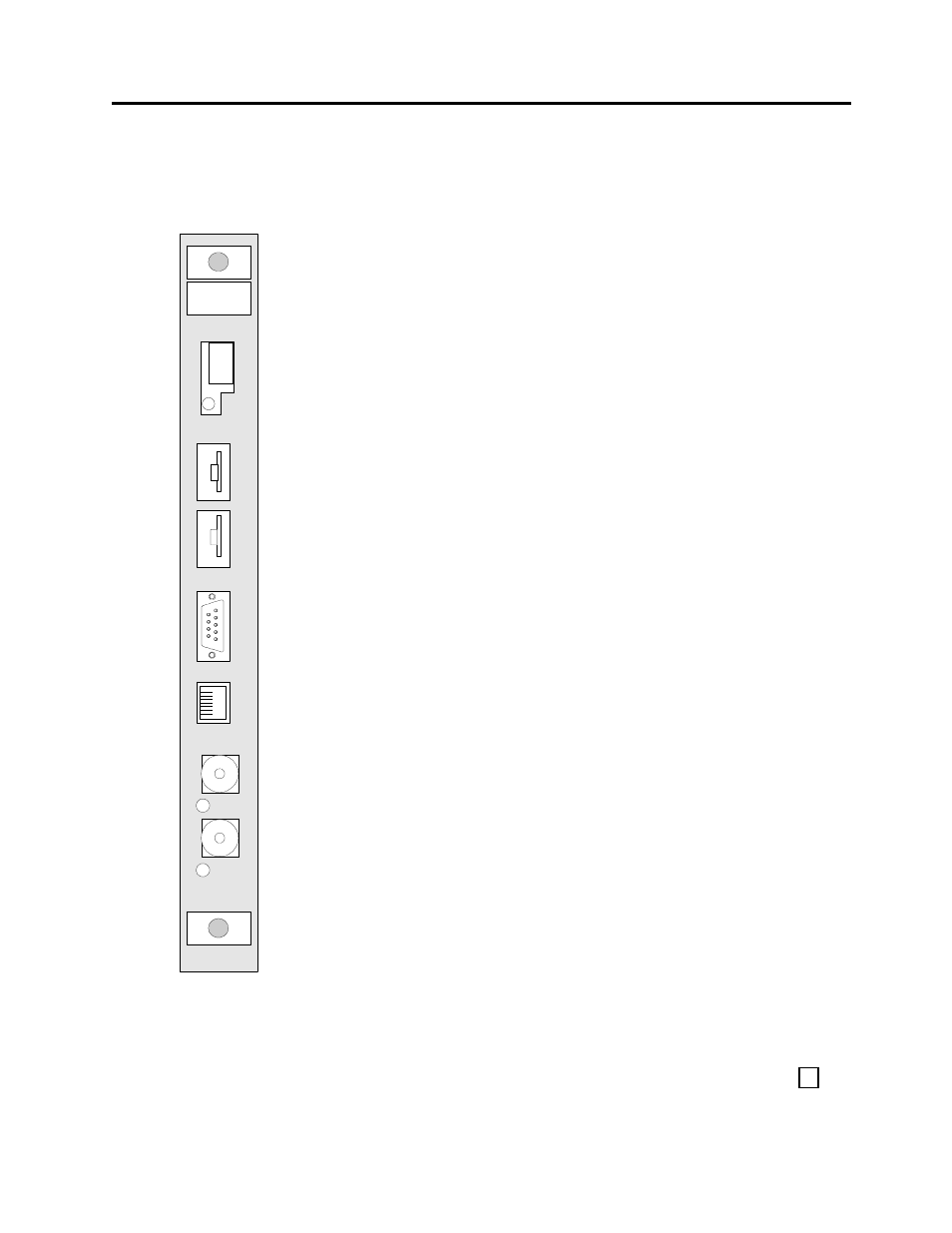

Hardware Features
MBCN
O-58820
Fault
Code
OK
MAC ID
10
1
C
onf
ig
N
A
P
COM
COM
A
B
The main hardware features of the MBCN are:
• 7-segment display
• OK LED
• switches to set the MBCN’s ControlNet address
• serial config port for updating the MBCN firmware
• ControlNet NAP port
• ControlNet BNC connectors
• network status LEDs
These are described in detail in the following sections
7-Segment Display
The MBCN has a 7-segment LED to indicate status. Refer to page 16 for
a summary of 7-segment display codes.
