Chapter 8
Defining Strings for Serial Ports and Viewports
8–22
During run mode, upon completion of an inspection, the CVIM checks the
specified event source to see if it has met the specified source condition. If
this occurs, the string is transmitted (an exception is if an interval has been
set – setting the interval is described later in this section).

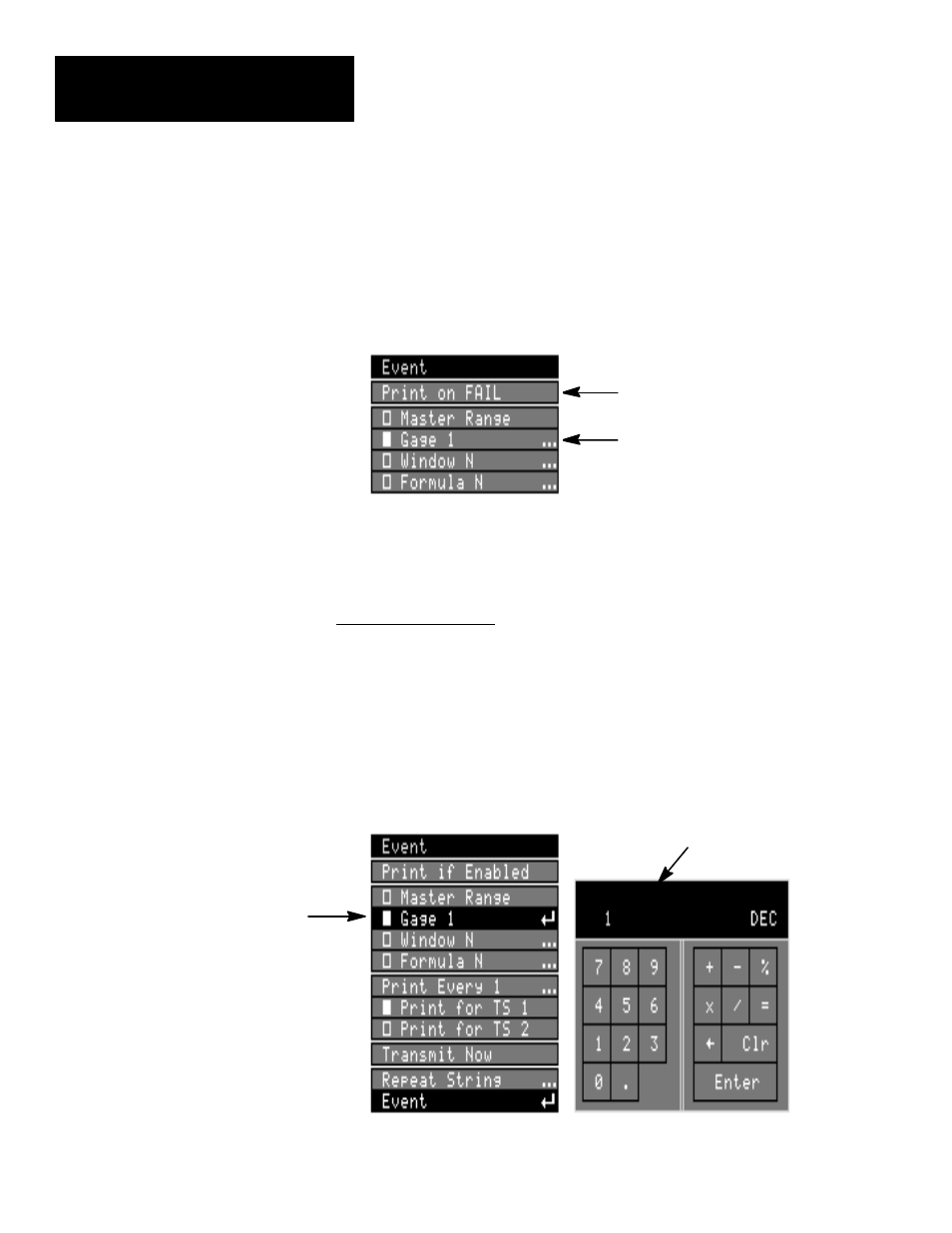

For example, you can select Gage 1 as the event source, then select Print on
FAIL as the source condition, as shown below:
Print on FAIL selected
as source condition
Gage 1 selected as
event source
With the Event specified as shown, the CVIM module checks gage 1, the
event source, upon completion of an inspection, to see if it has failed, and
thus met the source condition. If gage 1 failed, the string is transmitted. If
gage 1 passed the inspection, the string is not transmitted for that inspection.
Selecting Event Source
To select Master Range as the event source, simply pick the Master
Range box on the Event menu.
To select a Gage, Window, or Formula as the event source, you first pick
appropriate Gage, Window, or Formula box; this causes the calculator
keypad to appear. You then use the calculator pad to enter the number for a
specific gage, window, or formula.
Note: You must have the MATH–PAK option package (Cat. No.
5370–MPK) installed in order to use any
Formula selection.
Calculator Pad
Gage box
Selecting the Index Character: You can pick the value zero (0) for the
tool specifier; this results in the entry of the
# (index) character when the
