Chapter 9
Using Copy and Paste
9–4
•
Pick the Next box to select the destination viewport – viewport 2.
•
Check the Paste box. If the Paste box is disabled, viewport 2 has at
least one string for which text has been entered. In this case, in order to
use the
Paste box, you must first clear any text from the viewport 2
strings.
•
Pick the Paste box to place the source contents into the destination
viewport.
The Paste box retains the source viewport listing ( 1, in this case) until you
close and reopen the Config. Output menu. The source viewport
designation is updated if and when you select a different source viewport.
Example – String Copy and Paste
For example, to copy the contents from string 2 of viewport 1 to string 3 of
viewport 1, you would do the following:
•
Pick the Previous or Next boxes as required to select viewport 1 and
string 2.
•
Pick the Copy box to copy the contents of the selected string. The Paste
box will display the viewport number and number of the source string – in
this case, the box reads
Paste 1/2, for viewport 1, string 2.

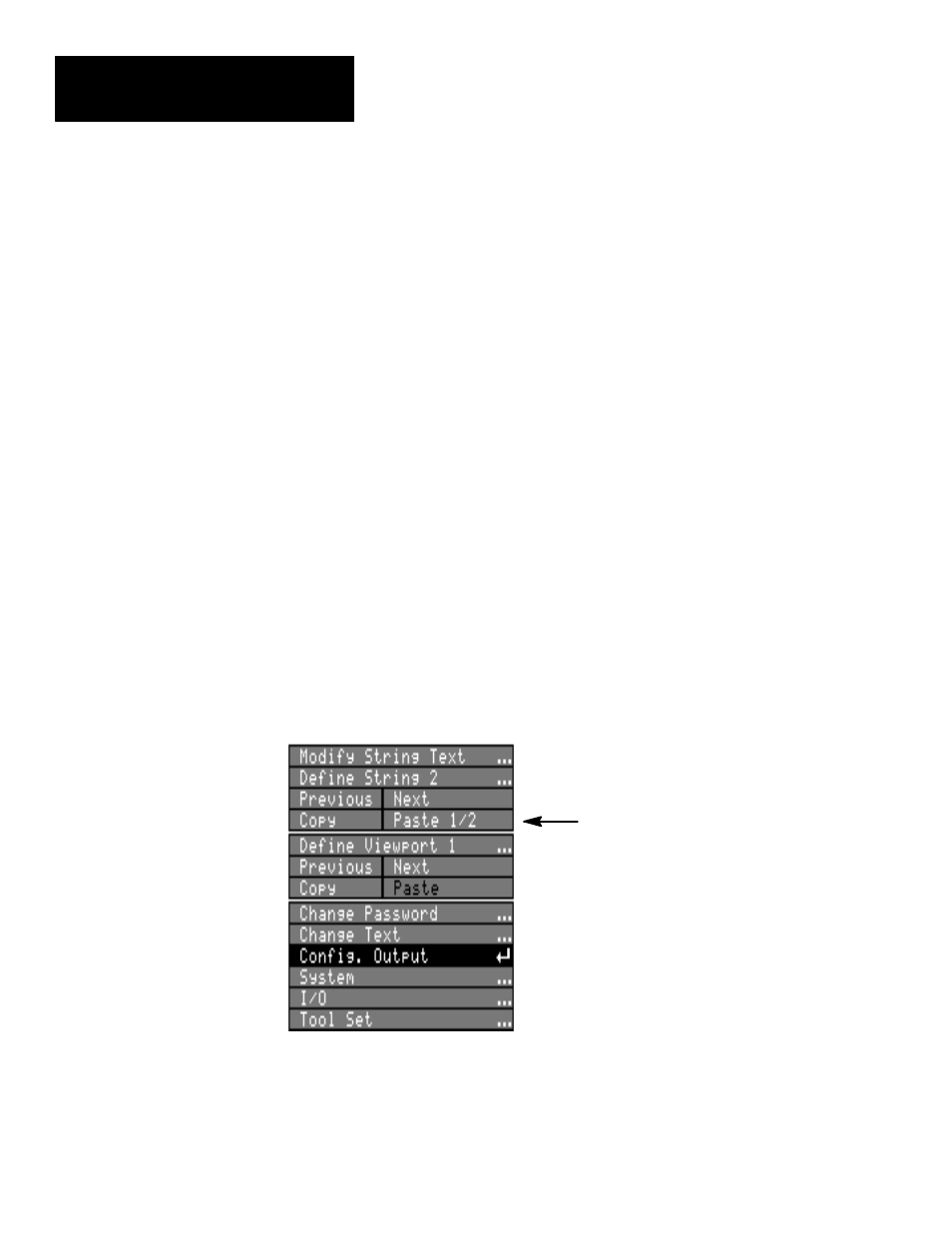

Paste box indicates source string
(1/2 – viewport 1, string 2)
•
Pick the Next box to select the destination string – string 3.
•
Pick the Paste box to place the source contents into the destination
string.
The Paste box retains the source string listing ( 1/2, in this case) until you
close and reopen the Config. Output menu. The source string listing is
updated if and when you select a different source string.
