Publication 1753-PM001A-EN-P - November 2005
1-2 Connect to the GuardPLC Controller

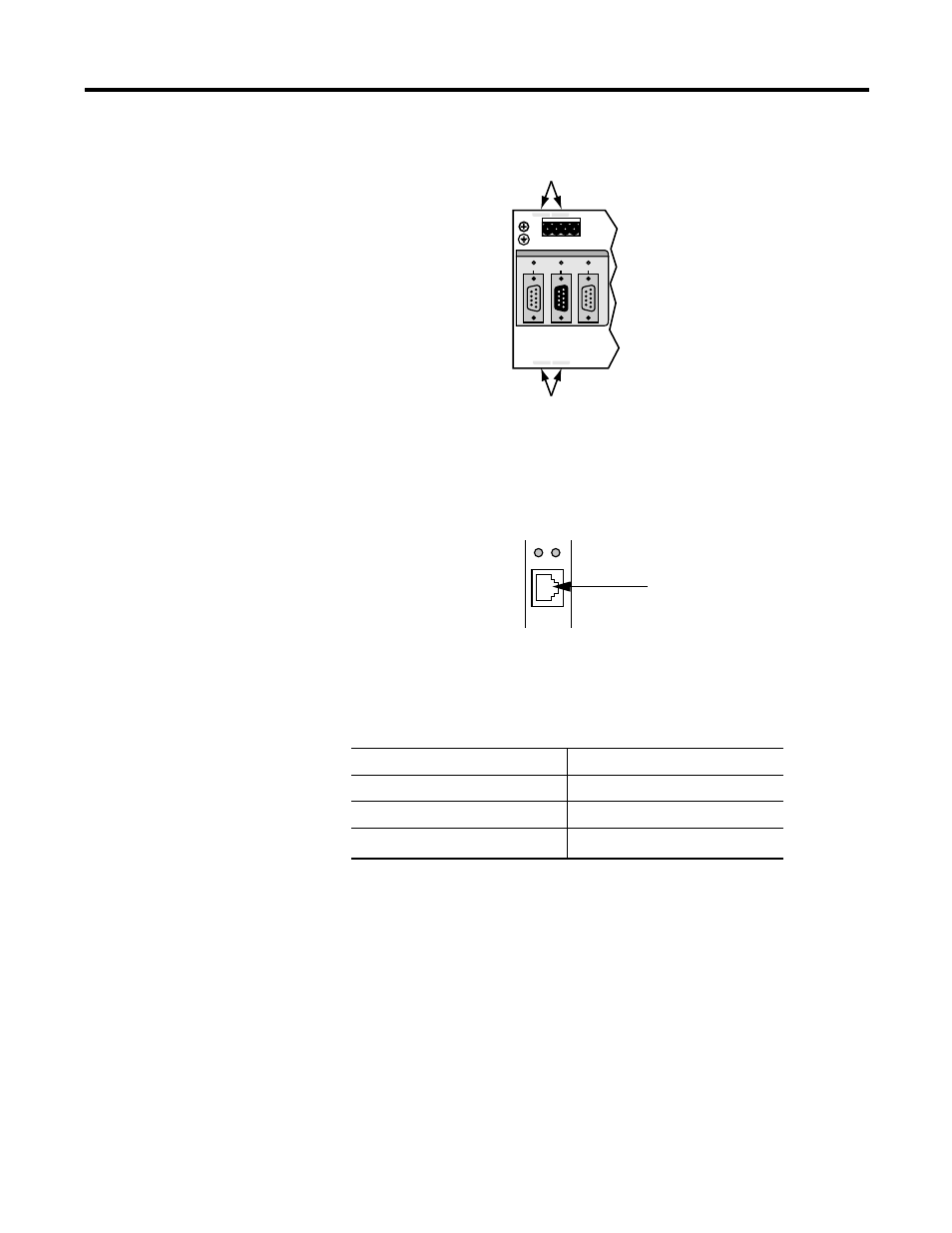

Connect to a GuardPLC 1600 or 1800 Controller
Connect to a GuardPLC 2000 Controller
GuardPLC Controller Factory Default Settings
Understand Ethernet Addressing
As with any connection between devices on Ethernet, the IP address
and subnet mask determine if the connection can take place. Every
device on Ethernet has an IP address and subnet mask.
The IP address and subnet mask are made up of four (4) octets
(001.002.003.004) The IP address is made up of the Network ID
L- L- L+ L+
COMM1
MODBUS
RS-485
24V DC
COMM2 COMM3
GuardPLC Ethernet
10/100 BaseT
ASCII/HSP
3 (—) 4 (—)
1 (—) 2 (—)
Ethernet Ports 3 and 4
Ethernet Ports 1 and 2
Tx COL
10/100 Base T
Ethernet port
Parameter Setting
IP Address 192.168.0.99
Subnet Mask 255.255.252.0
SRS
(1)
(1) The SRS code is compiled with the program. It guarantees that the program can only be
downloaded to a GuardPLC controller with a matching SRS stored in non-volatile memory.
60000
