B-22 Quick Start For the 1738-ADNX

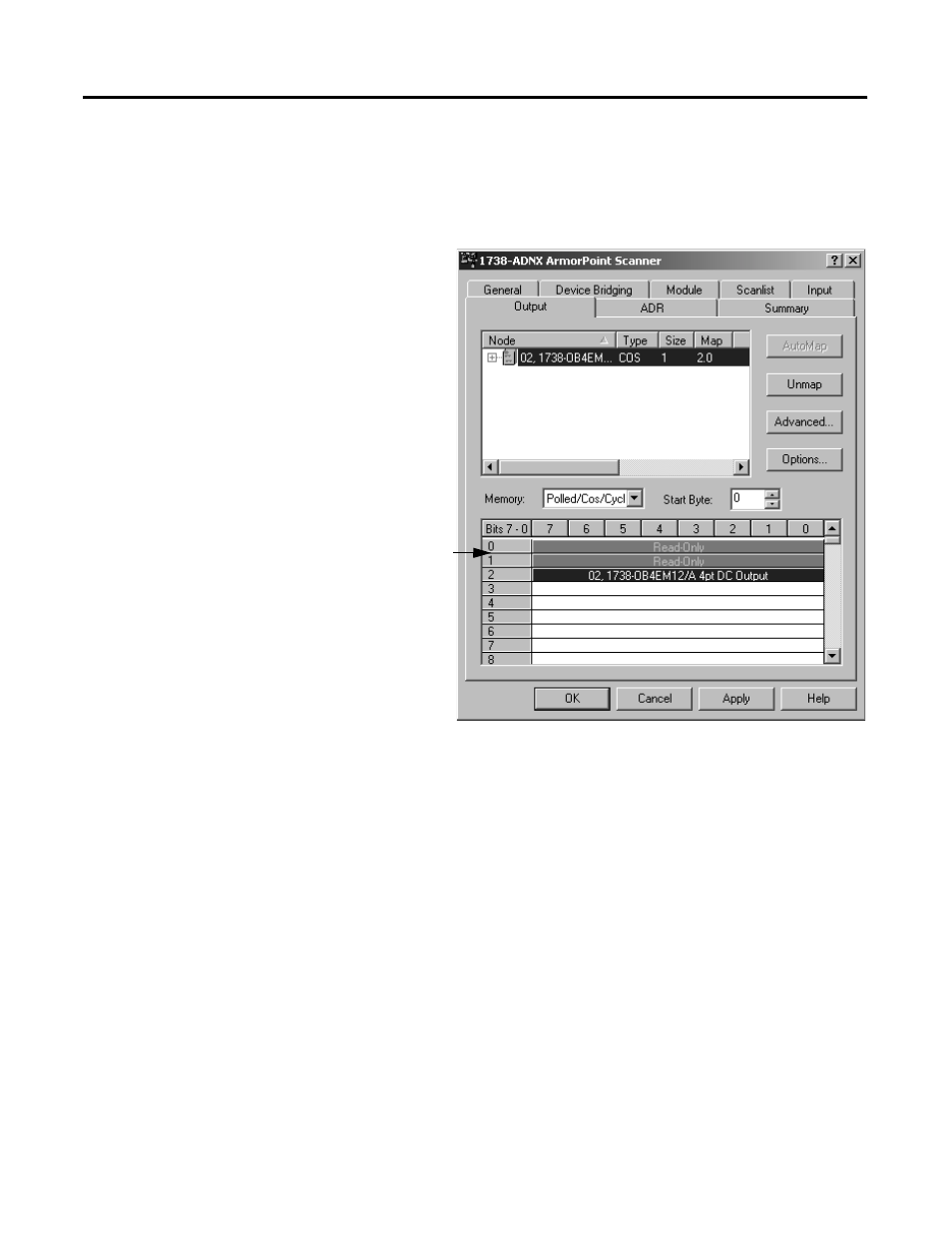

You should still be looking at the subnet 1738-ADNX Input tab.
Now select the Output tab and verify you have the following:
• Notice that only the output module 1738-OB4EM12 appears.
5. Expand the plus next to node 2.
• Several revisions ago (RSNetWorx for DeviceNet V3.21) the
ability to view I/O details from the Input and Output windows
was added into the software.
• From the Input and Output windows, you can view detailed I/O
information for each device in the scanlist of a DeviceNet
scanner.
• To view the I/O details for a particular device, click the plus sign
(+) located to the left of the device. If a plus sign is not
displayed, there are not any I/O details for that device.
• This feature is driven by each device’s EDS file.
These two say read
only, but since it is
an output tab, a
better description is
reserved for future
use.
