3-4 Use Auto Start Mode
Requirement To Using Auto Start Mode
Your ArmorPoint DeviceNet adapter must be free of I/O connections
on DeviceNet when you use Auto Start Mode. If you attempt to use
Auto Start Mode after another scanner device has established I/O
connections with the adapter, your attempt to use Auto Start Mode
will be rejected. When the adapter is configuring itself in Auto Start
Mode, no other device can establish I/O connections to the adapter.
Install the I/O Module
To install the module:
1. Using a bladed screwdriver, rotate the keyswitch on the
mounting base clockwise until the correct number for the I/O
module aligns with the notch in the base. (See the individual
ArmorPoint I/O module installation instructions for this
number.)
2. Position the module vertically above the mounting base. The
module will bridge two bases.
3. Push the module down until it engages the latching mechanism.
You will hear a clicking sound when the module is properly
engaged.
The locking mechanism will lock the module to the base.
MOD
NET
0
1
2
3
4
5
6
7
1738-OB8EM12/A
24V dc Out
0
1
2
3
4
5
6
7

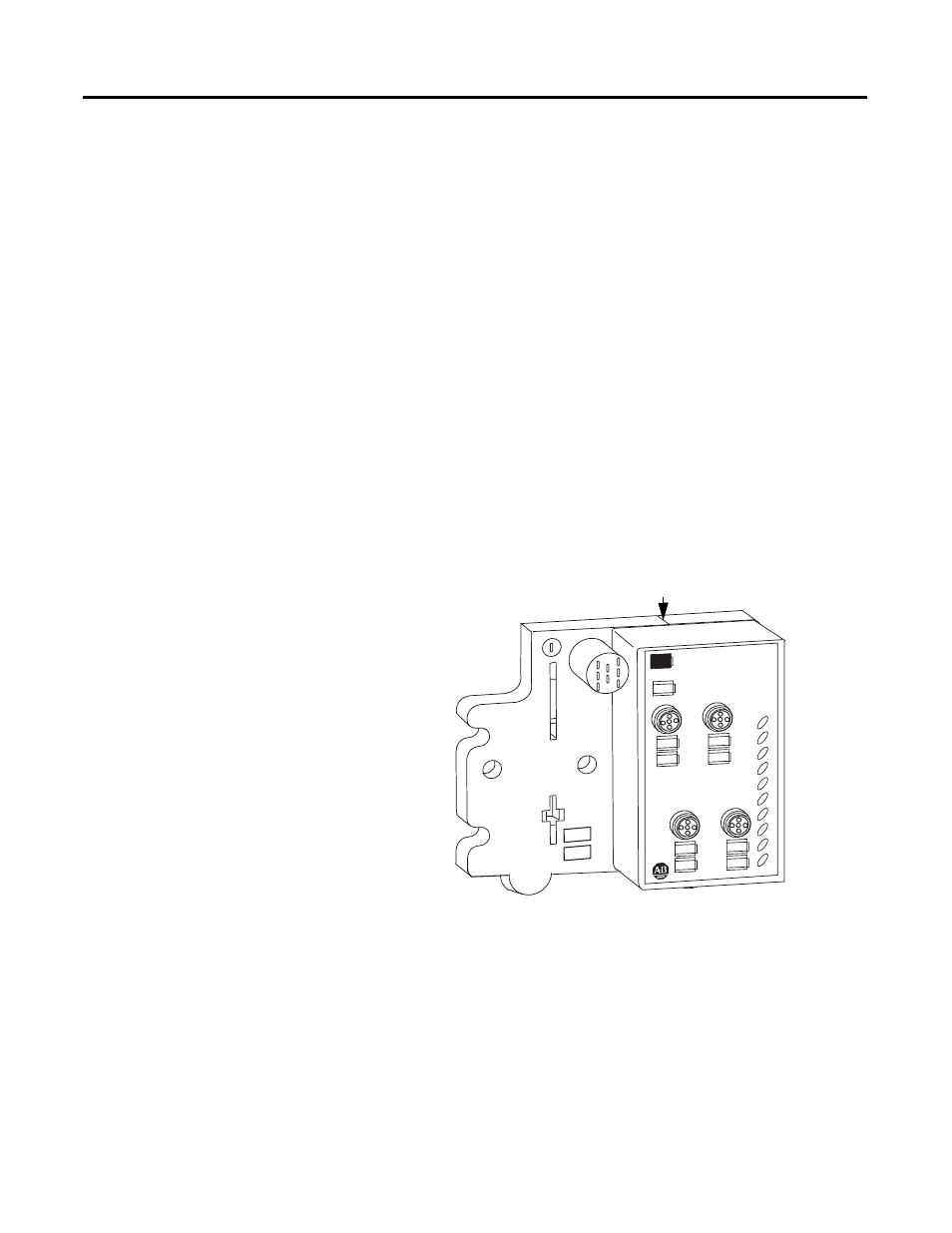

Module will bridge two bases.
