B-32 Quick Start For the 1738-ADNX

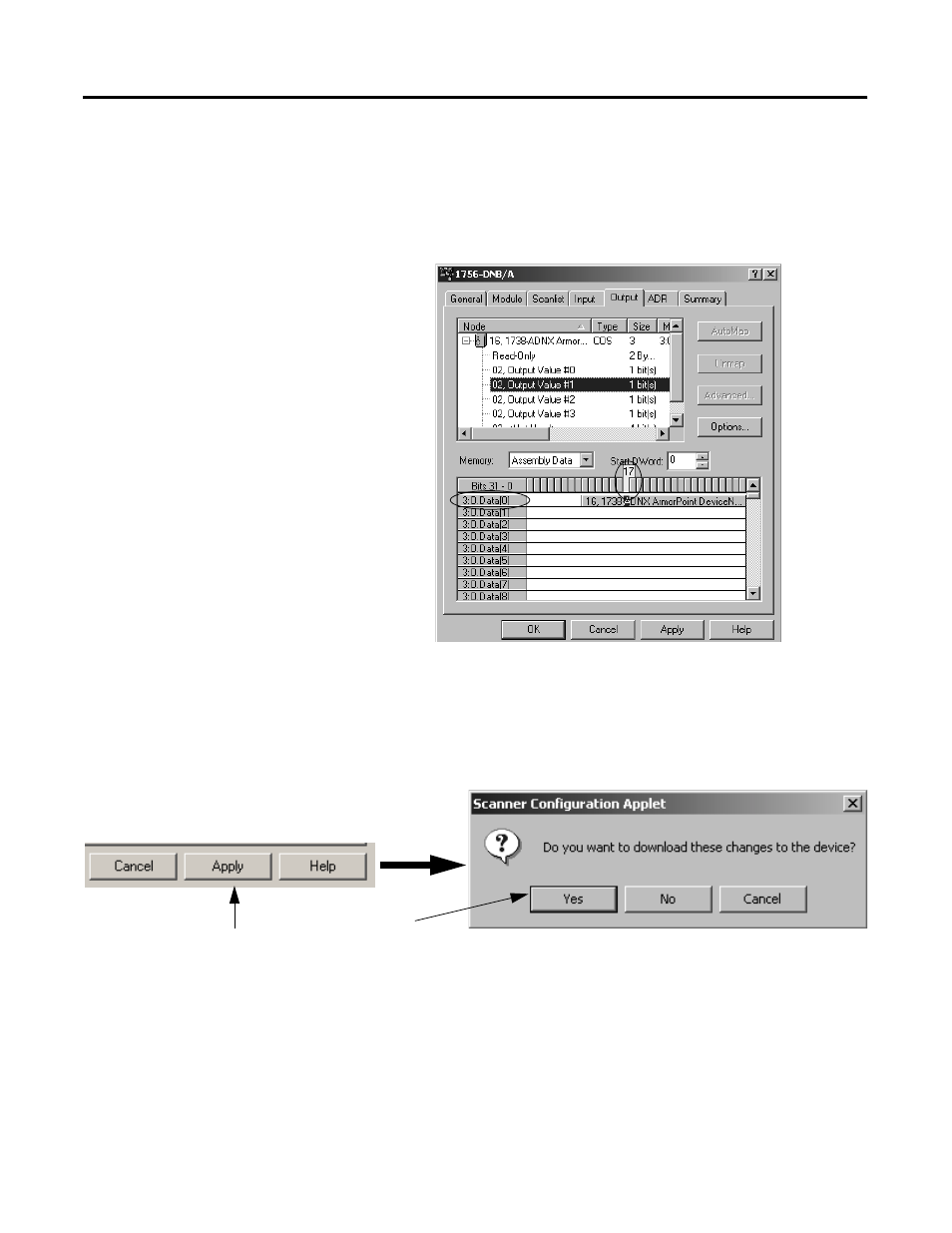

Now select the Output tab and find the bit for Output Value #1 on the
1734-OB4EM12. It should be 3:O.Data[0].17 as shown below. (NOTE:
Hold your cursor in the box above the highlighted area to cause the
last number to display.)
You are now ready to write your RSLogix5000 program.
18. Click Apply.
19. Click Yes when prompted to download these changes to the
device.
20. Click OK to close the 1756-DNB Output window.
21. Exit RSNetWorx for DeviceNet.
This is not a necessary step, but it will show you that
RSLogix5000 can launch RSNetWorx for DeviceNet
