Quick Start For the 1738-ADNX B-11
When Auto Start Mode is used, the adapter and connected I/O
modules go through the following sequence of events:
• Connections are established to I/O modules
• The adapter makes Change of State (COS) connections if the I/O
module supports COS, if not, the connection is Polled
• Data is mapped to the connections
The notes above explain parameter 1 – Max Backplane MACID. Next
you will review parameter 6, Auto Start Mode and parameter 7, Fixed
Map Size.
Review of Auto Start Mode

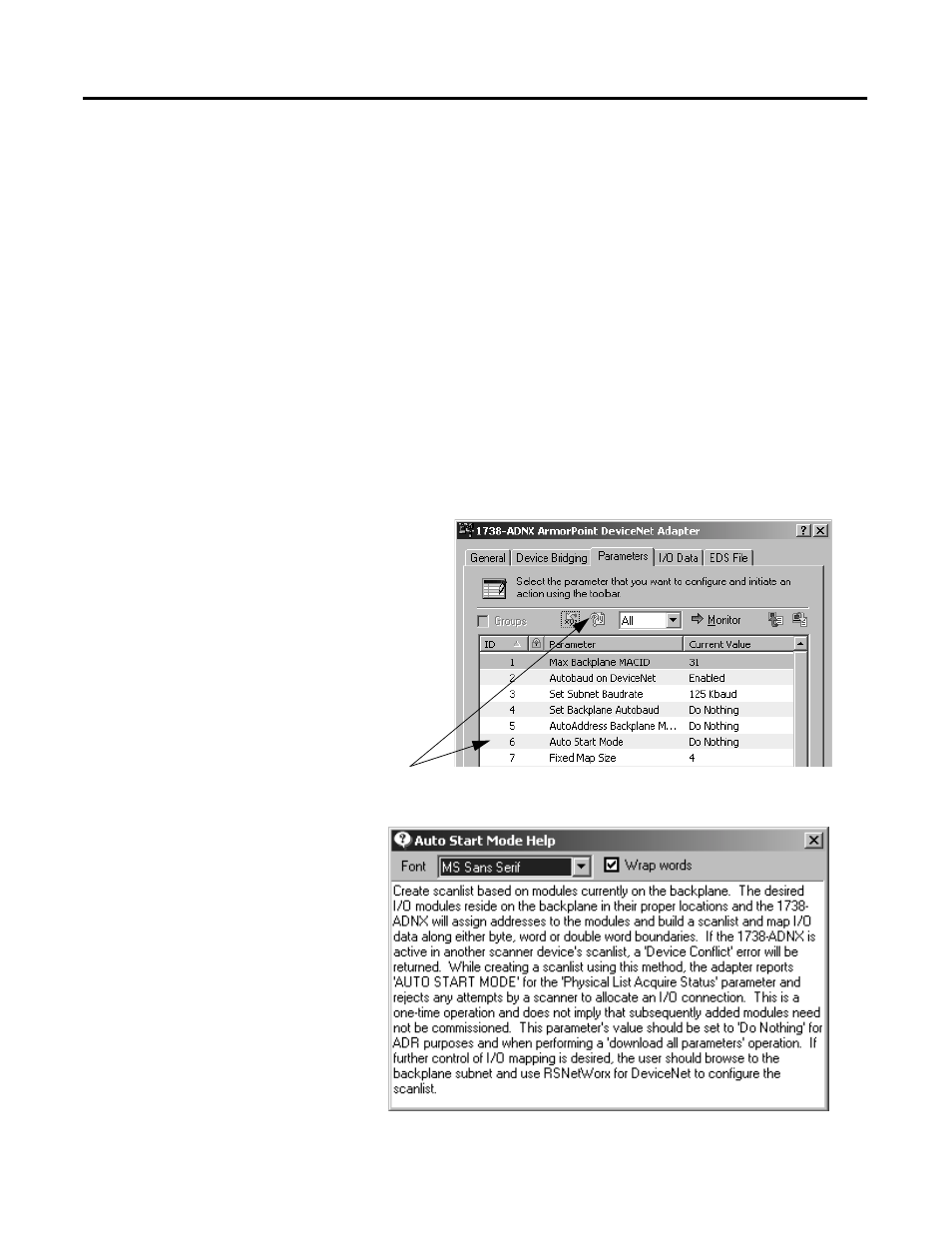

1. Select parameter 6, then click the help icon to display
information about Auto Start Mode.
A window describing Auto Start Mode opens.
