Publication 1738-UM001A-EN-P - February 2005
B-8 Quick Start For the 1738-ADNX

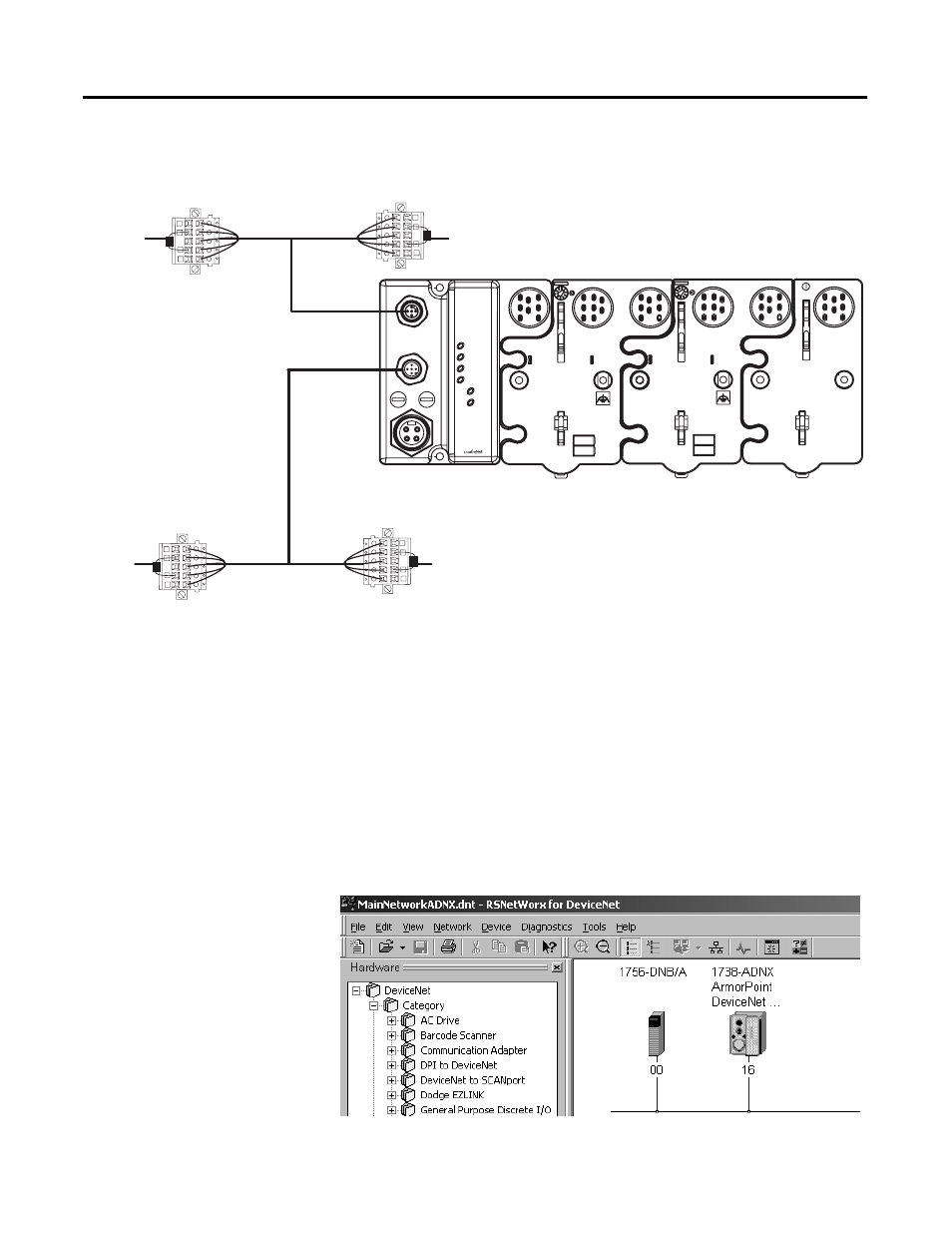

To properly terminate the 1738-ADNX when using a Subnet,
refer to the illustration.
• If you are not going to use the Subnet, you must still
terminate it!
• Note that the non-terminating base is shipped with the
1738-ADNX only. The terminating base is shipped with all the
other ArmorPoint DeviceNet adapters.
• Do not use carbon resistors. Metal film is recommended.
Continue ONLY after you have verified that the taps are
terminated correctly.
20. Double click on the 1738-ADNX to open the properties window.
In the next step you will download the EDS defaults to the
1738-ADNX.
DeviceNet In
Subnet Out
X10
X1
PWR
Adapter
Status
DeviceNet
Status
PointBus
Status
System
Power
Adapter
Power
1738-ADNX
Adapter
I/O Base
I/O Base
non-terminating base
1738-ADNX With Subnet (1738-ADNX Subnet Drop Off Subnet Trunk)
Terminator Resistor
Terminator Resistor
Main
Trunk
Drop
Terminator Resistor
Terminator Resistor
Subnet
43899
Note that standard DeviceNet
terminator resistors are
shown in this illustration.
Refer to the On-Machine
Connectivity catalog,
publication no. M115-CA001,
Network Media section, for
other DeviceNet connection
options.
Drop
Trunk
