Troubleshoot the ArmorPoint
DeviceNet Adapter
This chapter describes how to troubleshoot your adapter.
Use the Status Indicators

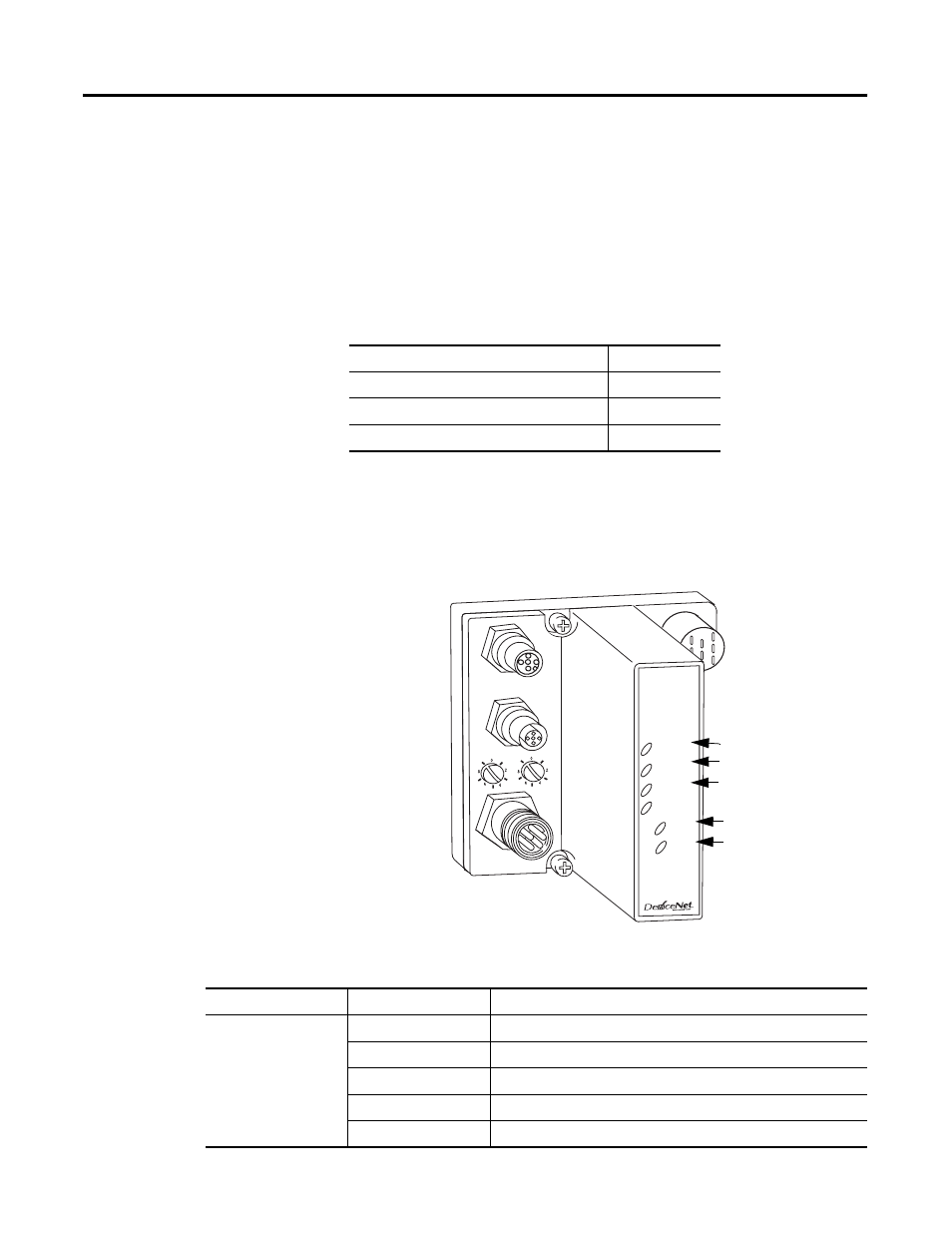

You can use the status indicators to troubleshoot your adapter. The
following graphic shows the adapter’s status indicators.
Use the table below to troubleshoot your adapter
See the following sections:
See page:
Guidelines for Using Your Adapter
1738-ADN12
DeviceNet In
DeviceNet Out
X10
Adapter
Status
DeviceNet
Status
PointBus
Status
System
Power
Adapter
Power
R
X1
PWR
Adapter Status Indicator
1738-ADN12
DeviceNet Status Indicator
PointBus Status Indicator
System Power Indicator
Adapter Power Indicator
43785
Indication
Indication
Probable Cause
Adapter Status
Off
No power applied to device.
Green
Device is operating normally.
Flashing Red
Recoverable fault.
Red
Unrecoverable fault - may require device replacement.
Flashing Red/Green
Device is in self-test.
