2-2 What Is the ArmorPoint DeviceNet Adapter?
Use the Adapter
The adapter resides on the primary DeviceNet network and the
Subnet simultaneously.

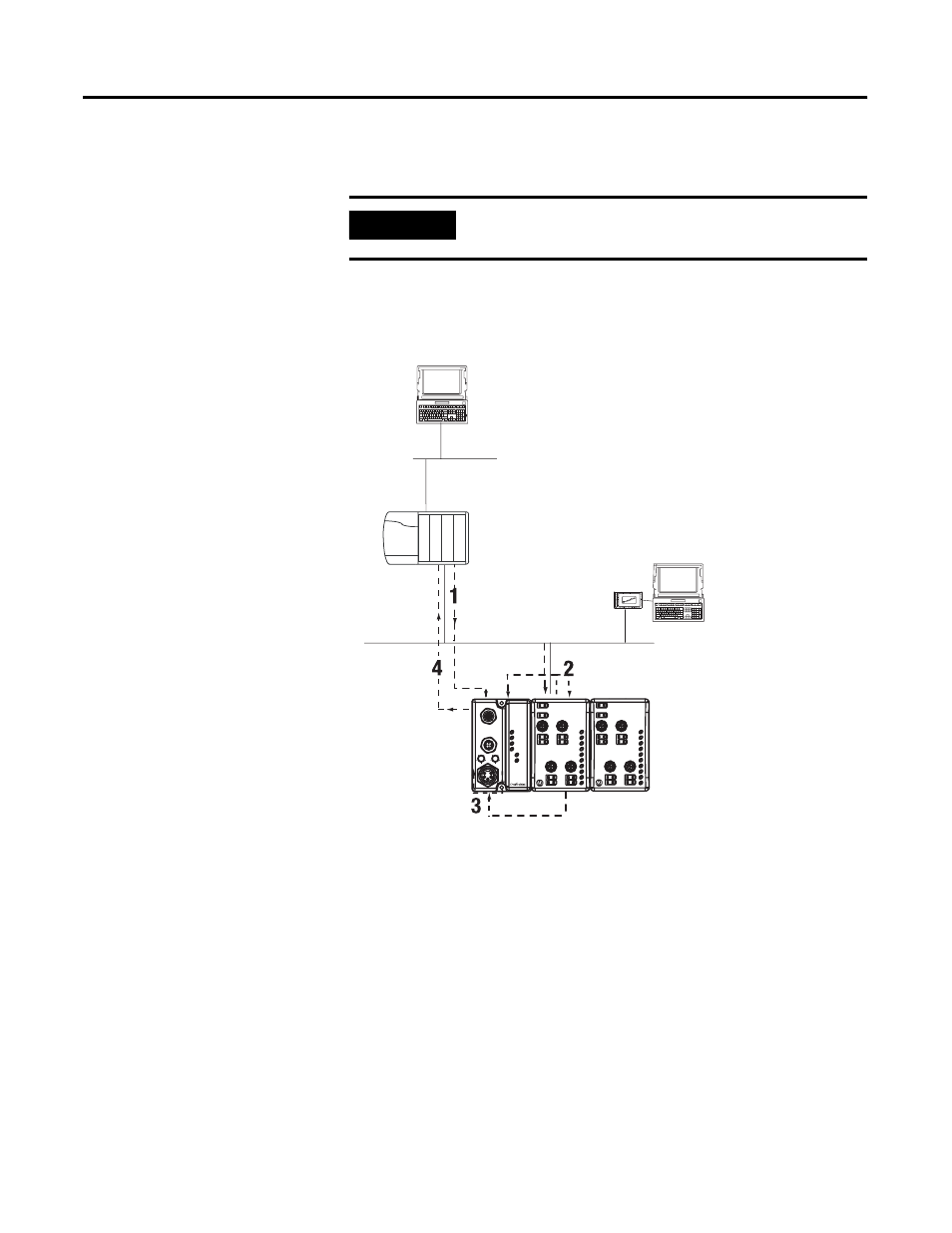

The adapter interfaces between DeviceNet devices and ArmorPoint
I/O modules. The graphic below shows the adapter on the DeviceNet
network and PointBus.
After you have installed your adapter into a ArmorPoint I/O system,
you must perform the following tasks:
1. Set Subnet/Backplane Baudrate
2. Set Subnet/Backplane I/O Module Addresses
4. Configure the Primary DeviceNet Network
The steps mentioned above are explained briefly here and then in
greater detail throughout this manual. You must complete the steps for
the adapter to work with DeviceNet masters (e.g., 1756-DNB) on the
primary network and Subnet modules.
IMPORTANT
The PointBus maintains all DeviceNet network
protocol but also offers configuration capabilities.
0
0
2
1
2
3
4
6
1
3
4
5
6
7
5
7
MOD
NET
1738-OB8EM12
24V dc Out
1738-ADN12
Adapter
Status
DeviceNet
Status
PointBus
Status
System
Power
Adapter
Power
DeviceNet Out
DeviceNet In
PWR
x10
x1
6
0
8
2
4
6
0
8
2
4
0
0
2
1
2
3
4
6
1
3
4
5
6
7
5
7
MOD
NET
1738-IB8M12
24V dc In
computer with PLC
programming software
ControlNet network
ControlLogix chassis
1784-PCD
PCMCIA card
1738-ADN12 adapter
DeviceNet network
computer with
RSNetWorx for
DeviceNet software
ArmorPoint I/O modules
43852
Subnet (1738-ADNX only)
See page 2-19 for an
explanation of the number
sequence.
