Metering
Overview While the SMC Flex controller operates your motor, it also monitors several
different parameters, providing a full function metering package.
Viewing Metering Data
To access the metering information, follow the procedure below:
(1)
(1) Refer to Metering on page 16 of Chapter 1 or Figure 43 on page 73 of Chapter 4 for details on the metering functions.

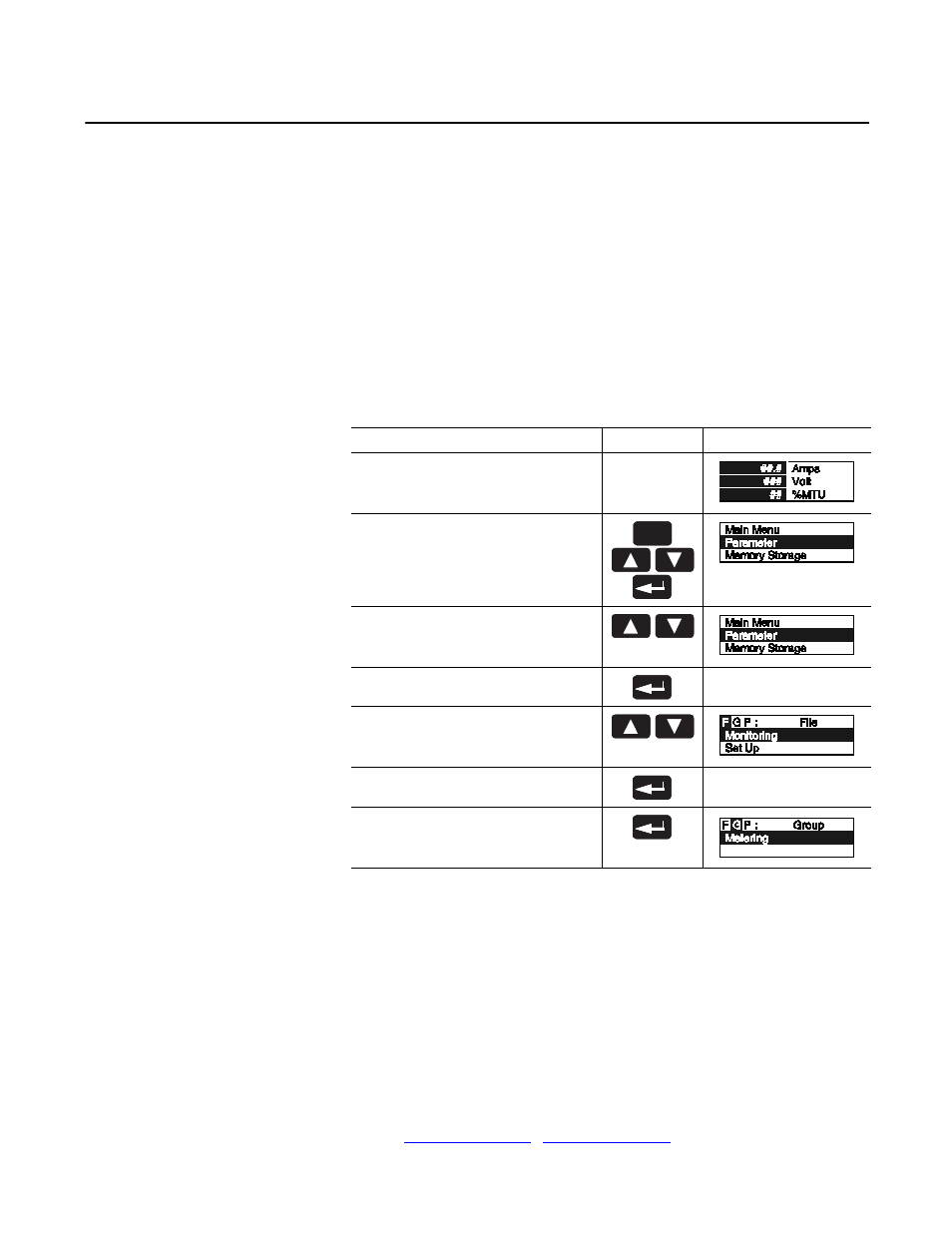

Description Action Display
– –
1. Press any key to access the Main menu.
2. Scroll with the Up/Down keys until the Parameter
option is shown.
3. Press the Enter key to access the Parameter option.
–
4. Scroll with the Up/Down keys until the Monitoring
option is displayed.
5. Press the Enter key to access the Monitoring group.
–
6. Press the Enter key to access the Metering group.
Sel Esc
