Chapter 8
Communication
Human Interface Module
The SMC Flex controller can be programmed with the built-in keypad and LCD
display or with the optional Bulletin 20-HIM LCD human interface modules.
Parameters are organized in a three-level menu structure and divided into
programming groups.
Keypad Description
The functions of each programming key are described below.

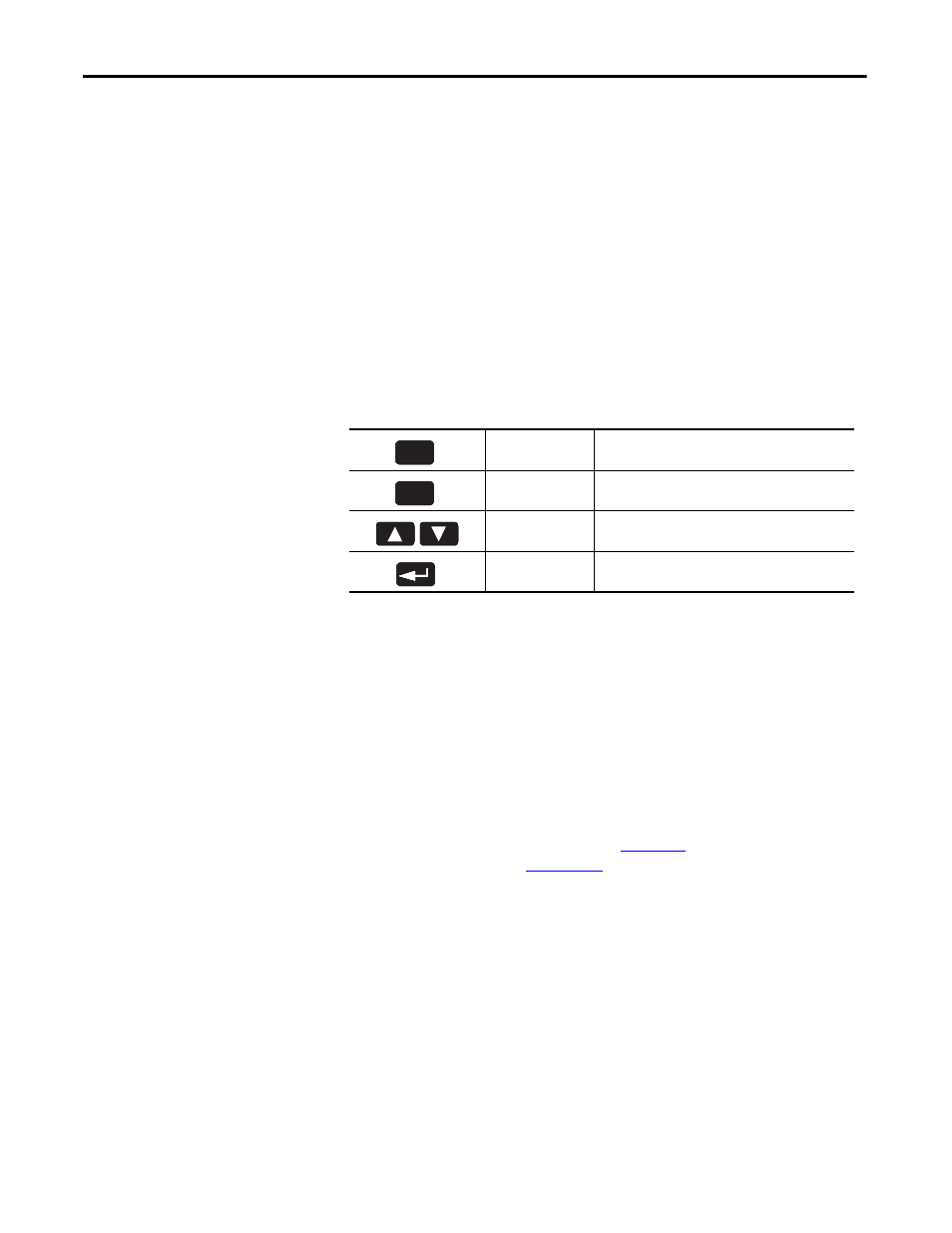

Table 10 - Keypad Descriptions
The Bulletin 20-HIM LCD interface modules may be used to program and
control the SMC Flex controller. The human interface modules have two
sections: a display panel and a control panel. The display panel duplicates the
3-line, 16-character backlit LCD display and programming keypad found on
front of the SMC Flex controller. Refer to
for a description of the
programming keys; refer to
for a listing of human interface module
catalog numbers that are compatible with the controller.
TIP
Node addressing of the DPI communication card can be programmed via
software or a hand-held DPI HIM. The onboard HIM cannot be used to address
the communication card.
Escape
Exit a menu, cancel a change to a parameter value, or
acknowledge a fault/alarm.
Select
Select a digit, select a bit, or enter edit mode in a parameter
screen.
Up/Down Arrows
Scroll through options increase/decrease a value, or toggle a bit.
Enter
Enter a menu, enter edit mode in a parameter screen, or save a
change to a parameter value.
TIP
If a human interface module is disconnected from the SMC Flex controller
while the Logic Mask is set to 1, a “Coms Loss” will occur.
TIP
For ease of programming values, after using the Enter key to edit, use the Sel
key to jump to the digit that needs to be modified, then use the arrow keys to
scroll through the digits.
TIP
Bulletin 20-HIM Rev3.002 or later must be utilized with the SMC Flex.
TIP
Extension cables are available up to a maximum of 10 m in total length.
TIP
A maximum of two HIM modules can be installed.
