192

Rockwell Automation Publication 1560E-UM051F-EN-P - June 2013

Appendix E

ArcShield Plenum Installation Instructions

STEP 5 – Extension and Elbow
Assembly

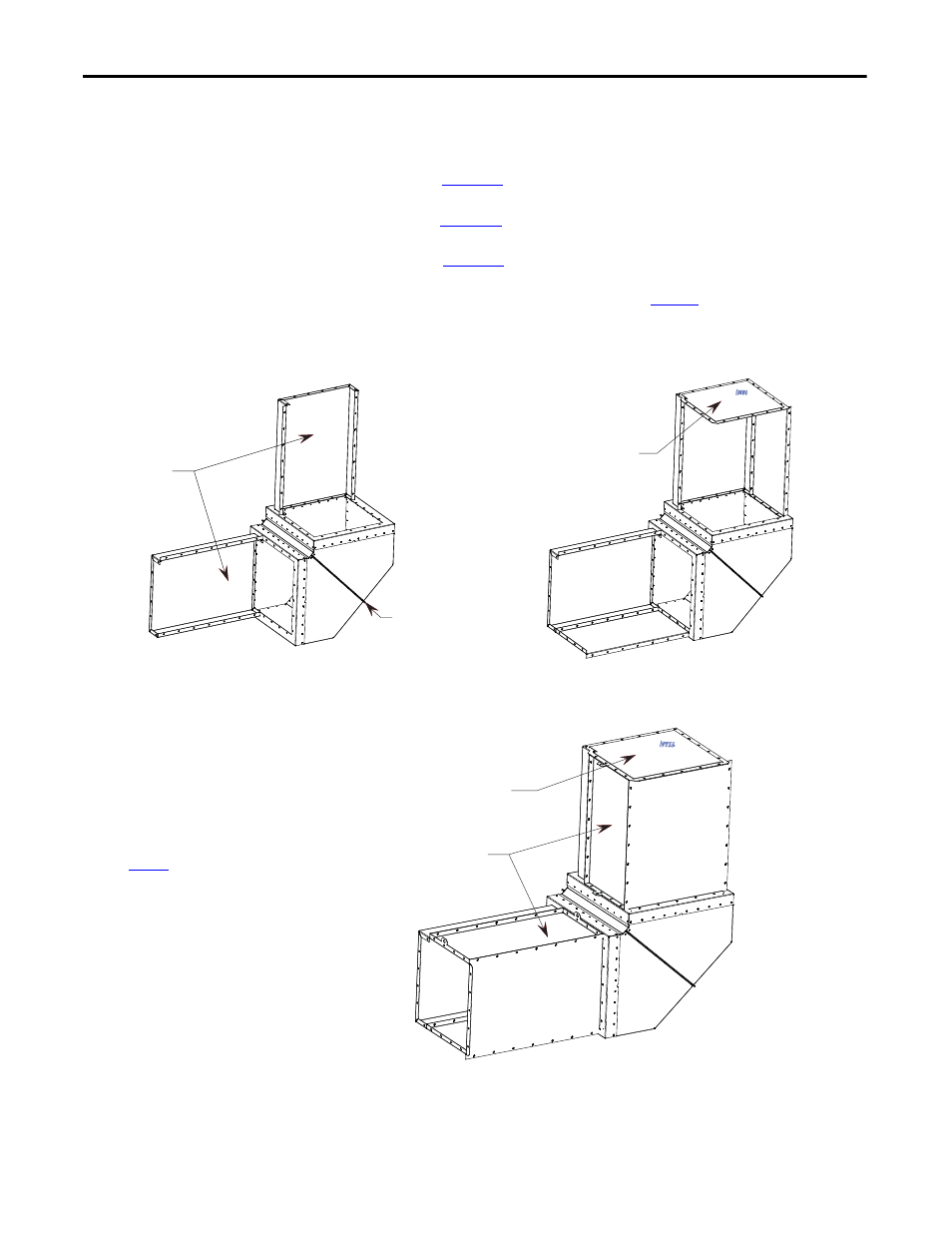

The 36" Extension components and 90° Elbow Section are to be attached using
5/16-inch hardware in the following sequence:

Step 5A – See

Figure 96

Step 5B – See

Figure 97

Step 5C – See

Figure 98

Figure 98 - 90° Elbow Section Assembly, Step 5C (Front View)

TIP

The Screen Cover Plate is attached in

Figure 97

.

Figure 96 - 90° Elbow Section Assembly, Step 5A (Front View)

Figure 97 - 90° Elbow Section Assembly, Step 5B (Front View)

36" Extensions

2-piece 90 deg.
Elbow Section

Screen Cover Plate

The Extension components are attached to the Elbow
Section using 5/16-inch Hardware.

Figure 98

illustrates what the Extension/Elbow Assembly

should resemble when finished.

36" Extensions

Screen Cover Plate

TIP

Use silicone caulking generously to fill any air gaps once the Plenum has been
securely mounted in place.
