Page 25
Deutsch-3

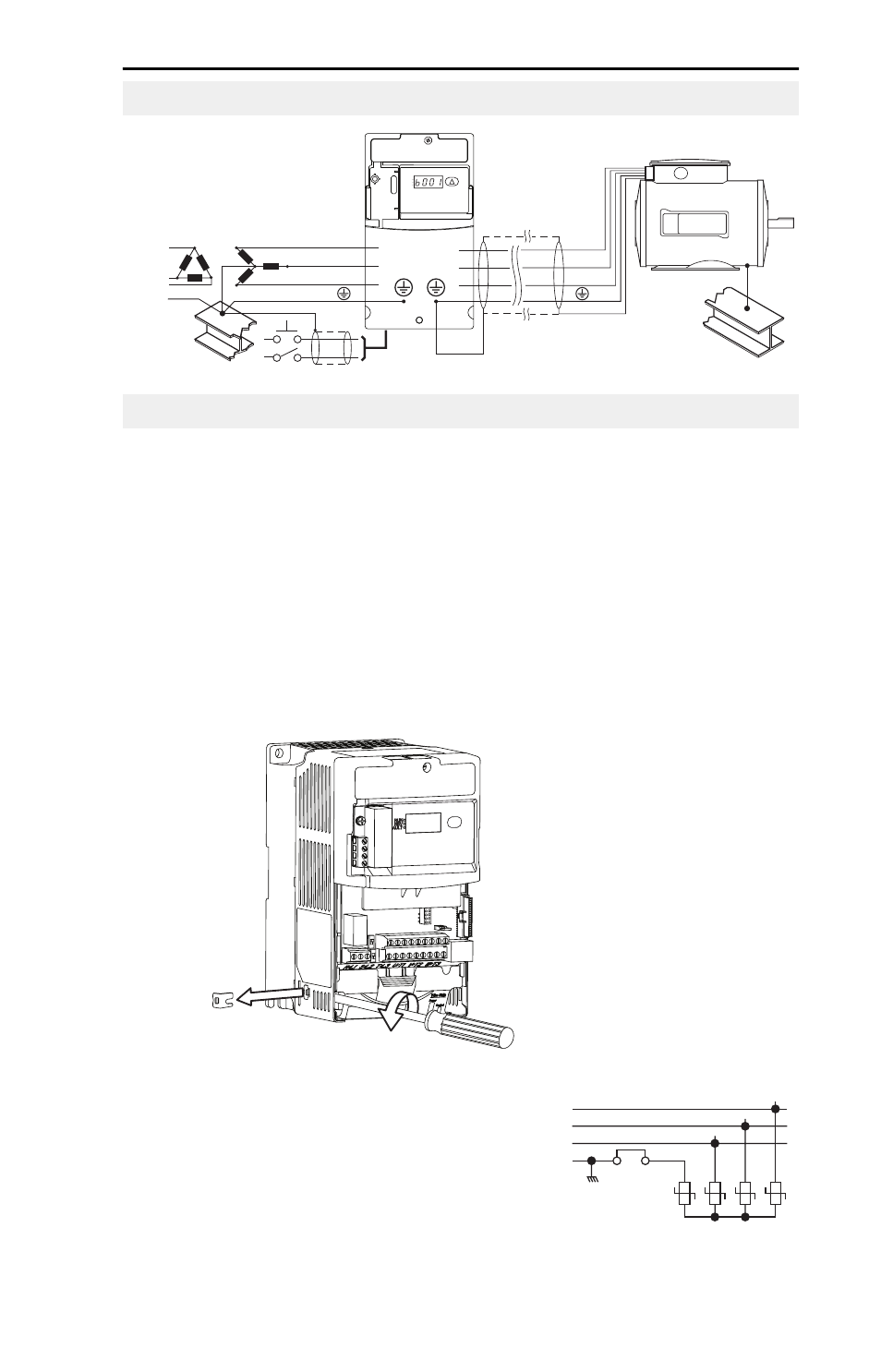

Um Schäden am FU zu vermeiden, sollten die MOV-Verbindungen
zur Erde bei Installation des FUs in einem nicht geerdeten
Verteilungssystem, in dem die Spannungen zwischen einer der
Phasen 125 % der Nenn-Leiter-/Leiter-Spannung übersteigen könnten,
unterbrochen werden. Dazu sind die in den nachstehenden Abbildungen
aufgeführten Brücken zu entfernen.
1. Zum Lösen der Schraube, diese gegen den Uhrzeigersinn drehen.
2. Brücke abziehen und aus dem FU-Gehäuse enfernen.
3. Schraube fest ziehen.
Brückenposition
Entfernung des Leiter/Erde-MOV
Wichtig: Ziehen Sie die Schraube nach dem Entfernen der Brücke fest.
Allgemeine Voraussetzungen für die Erdung
SHLD
U/T1
V/T2
W/T3
R/L1
S/L2
T/L3
RUN
REV
FAULT
Entfernen von MOVs
R/L1
S/L2
T/L3
1
2
3
4
Three-Phase
AC Input
Jumper
