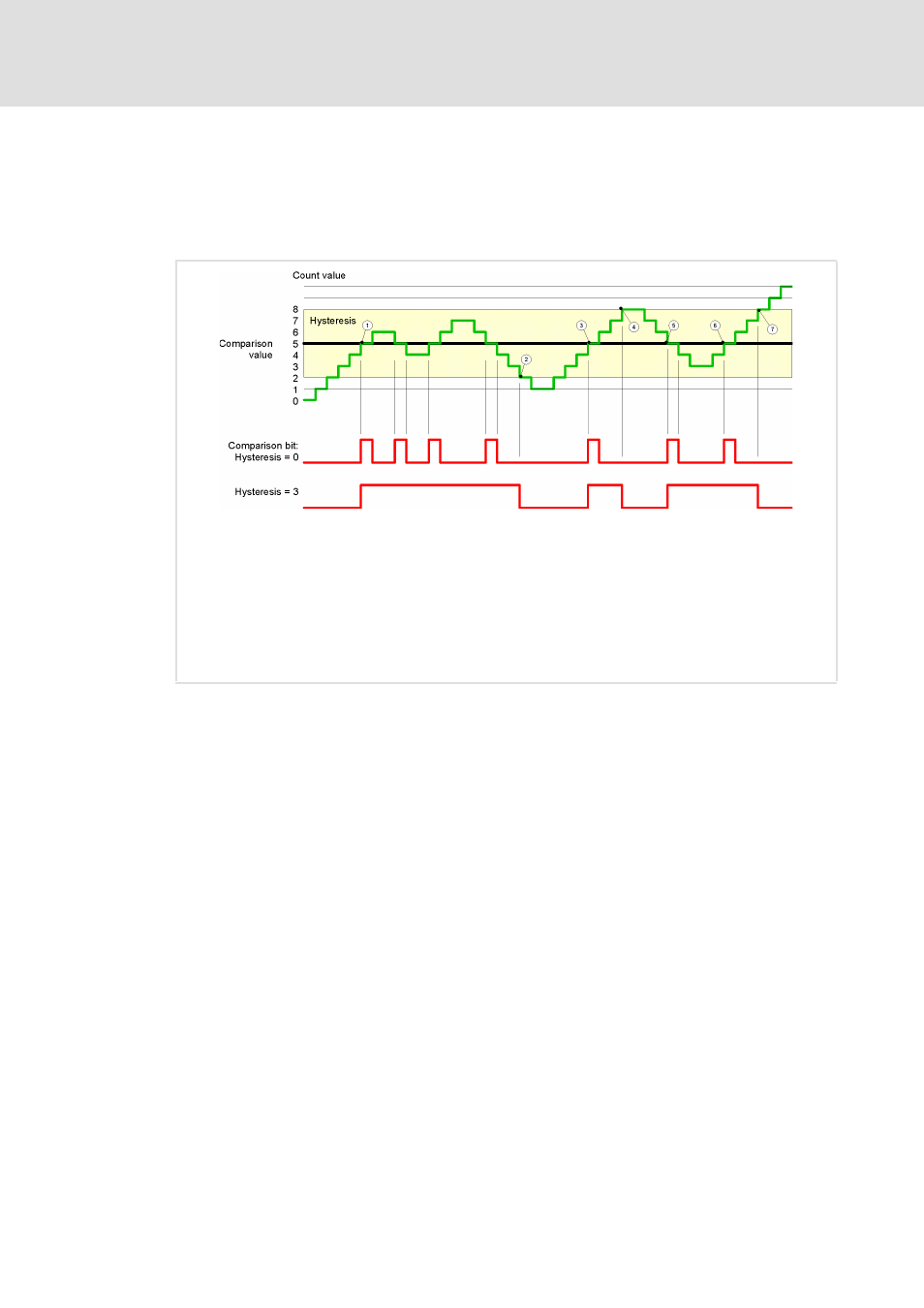

Comparison value with zero pulse duration
The hysteresis is activated if the comparison condition is met. When the hysteresis is
activated, the comparison result remains unchanged until the count value drops out of the
set hysteresis range. After the count value has exited the hysteresis range, the comparison
conditions must be met once more for the hysteresis to be activated again.
c Count value = comparison value: Output is set and hysteresis is activated
d Hysteresis range is exited: Output is reset and count value < comparison value
e Count value = comparison value: Output is set and hysteresis is activated
f Output is reset because hysteresis range is exited and count value > comparison value
g Count value = comparison value and hysteresis is active: Output remains set
h Count value ≥ comparison value: Output is not set because hysteresis is activated
i Hysteresis range is exited and count value > comparison value: Output is reset
