L-force Controls | I/O System 1000
Parameter setting
Electronic modules - digital output
40
L
2.0 EN - 11/2010
6.3.3 "DO2 PWM" electronic module

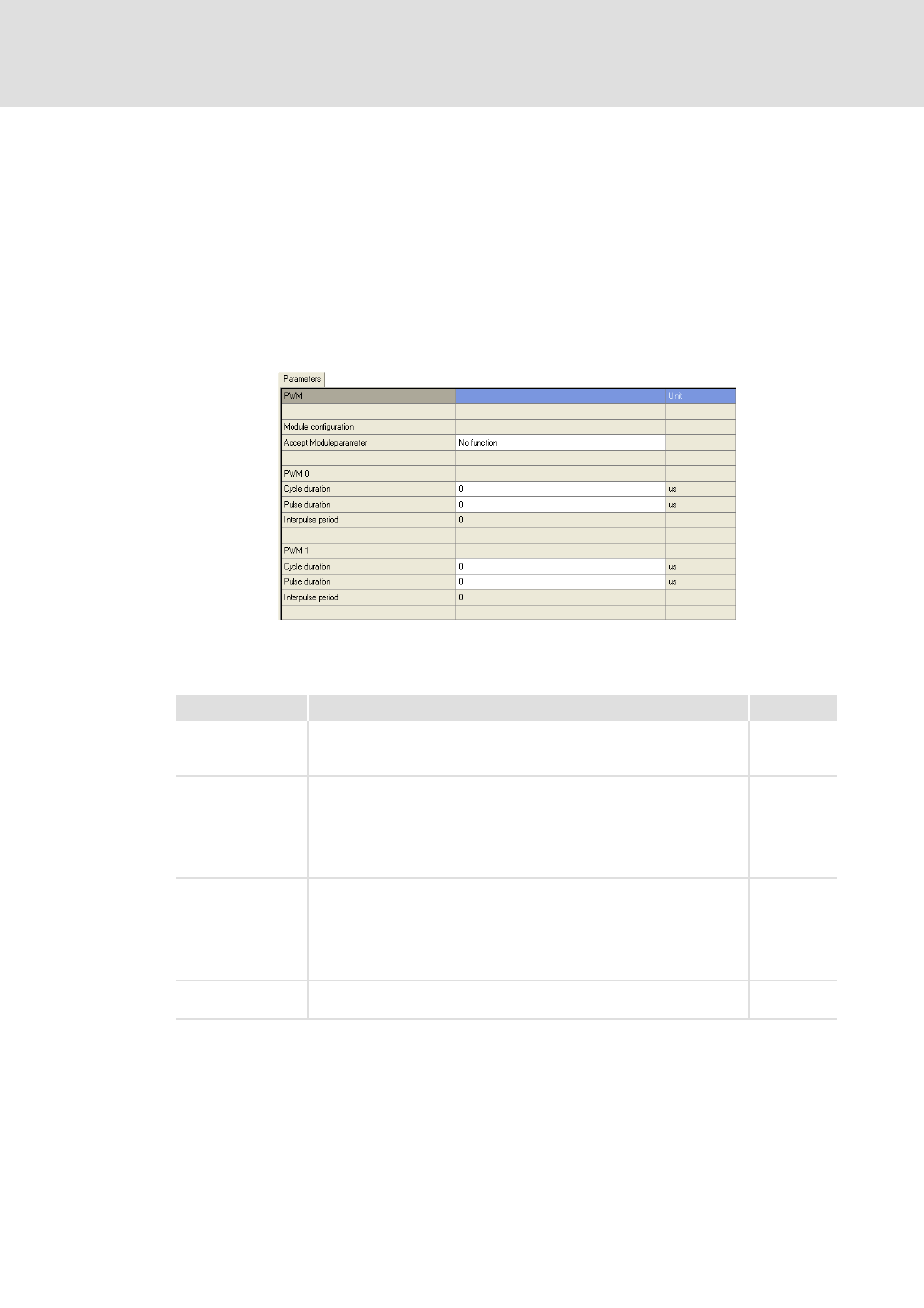

6.3.3.1 Parameters tab
Use the Parameters tab to select the settings for the electronic module. In addition, the
channel status is indicated.

How to parameterise the electronic module:
1. Select the electronic module in the project view.
2. Click the Parameters tab in the workspace.
3. Make settings for each channel.
Legend Description Index
Accept module
parameter
Changed settings will not be accepted until the function has been executed.
Click the input field to open the drop down menu.
• 255: Accept module parameters
0x31FF
Cycle duration Selection of the cycle duration in [μs]. The duty cycle is determined by
selecting the cycle duration and the pulse duration.
Input area:
1 {1 μs} 175000
Index representation:
48 {1} 8388607
PWM 1:
0x3100,
0x3103
PWM 2:
0x3104
0x3107
Pulse duration Selection of the pulse duration in [μs]. The duty cycle is determined by
selecting the cycle duration and the pulse duration.
Input area:
1 {1 μs} 175000
Index representation:
48 {1} 8388607
0x5620
Interpulse period Display of the interpulse period
• Cycle duration minus pulse duration results in the interpulse period.
