L-force Controls | I/O System 1000
Parameter setting
Electronic modules - digital output
6.3.2 "DO2 Timestamp" electronic module

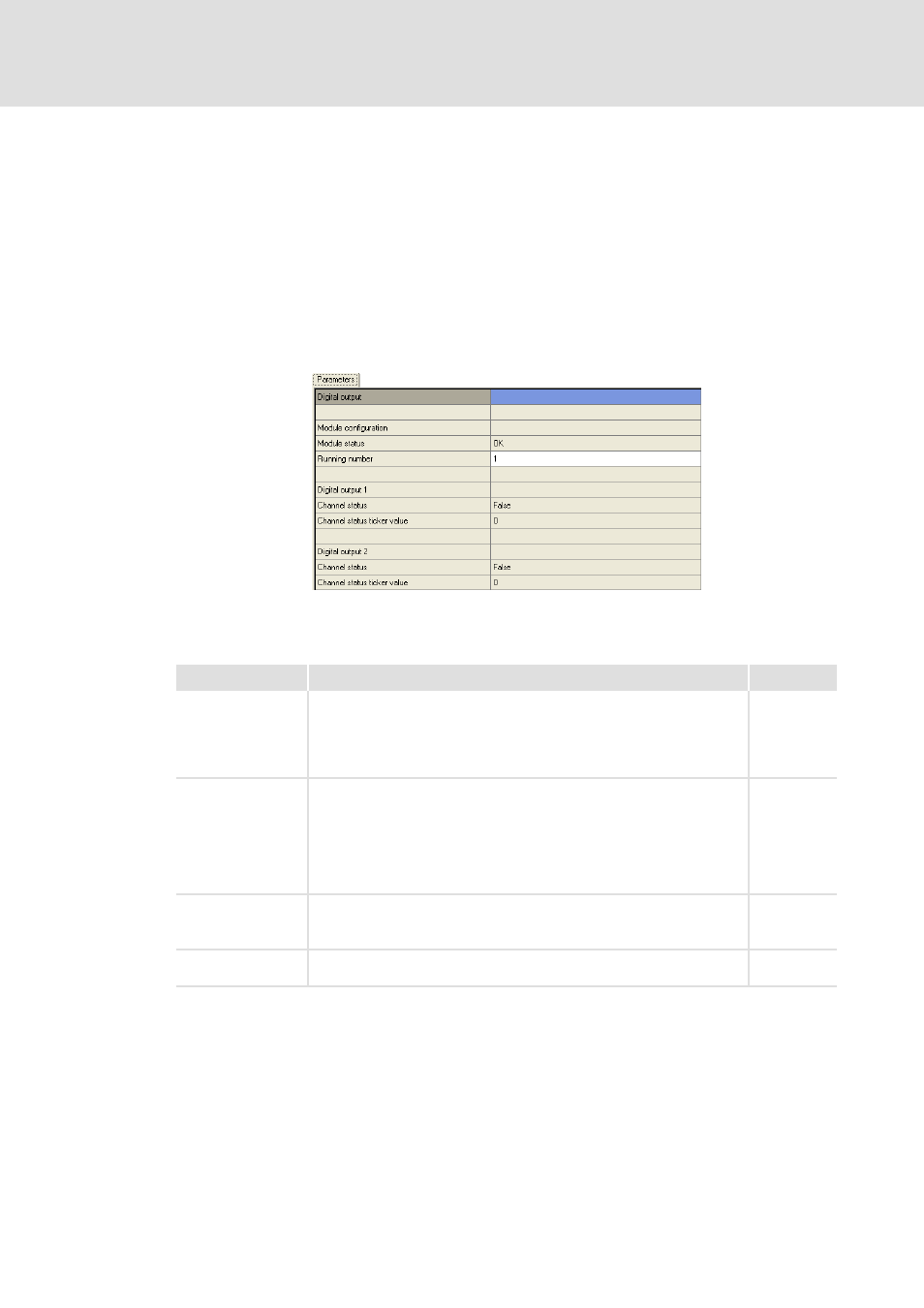

6.3.2.1 Parameters tab
Use the Parameters tab to select the settings for the electronic module. In addition, the
channel status is indicated.

How to parameterise the electronic module:
1. Select the electronic module in the project view.
2. Click the Parameters tab in the workspace.
3. Make settings for each channel.
6.3.2.2 TimeStamp function
Description
Long cycle times or cycle times varying as a function of the fieldbus load will inevitably lead
to large inaccuracies if switching at an exact point in time is required. Using the
Legend Description Index
Module status Display of the current status:
• 00h/80h: OK
• 01h/81h: No next entry
• 02h/82h: No new entries available
• 03h/83h: FIFO memory full. No new entries possible.
0x5440
Running number Display of the "Channel status" and "Channel status ticker value" referred to
the running number (RN).
Click the input field to open the drop down menu and select the required
running number (subindex of 0x5640).
• 1 … 4
–The display values for "Channel status" and "Channel status ticker
value" are refreshed automatically.
0x5640
Channel status Display of the current output signal.
• TRUE: Signal level = HIGH
• FALSE: Signal level = LOW
0x5640
Channel status ticker
value
Display of the current ticker value in [μs]. 0x5640
