L-force Controls | I/O System 1000
Configuring the station structure
Creating a new project (select component from catalogue)
20
L
2.0 EN - 11/2010
7. Enter the filing location for the project directory in the Directory input field.
• If the indicated directory is not available, it will be recreated.
• You can optionally select an available directory via the Browse... button.
• If you select the Always save projects here option, the indicated directory will
be the standard memory location for new projects.
8. Press Complete.

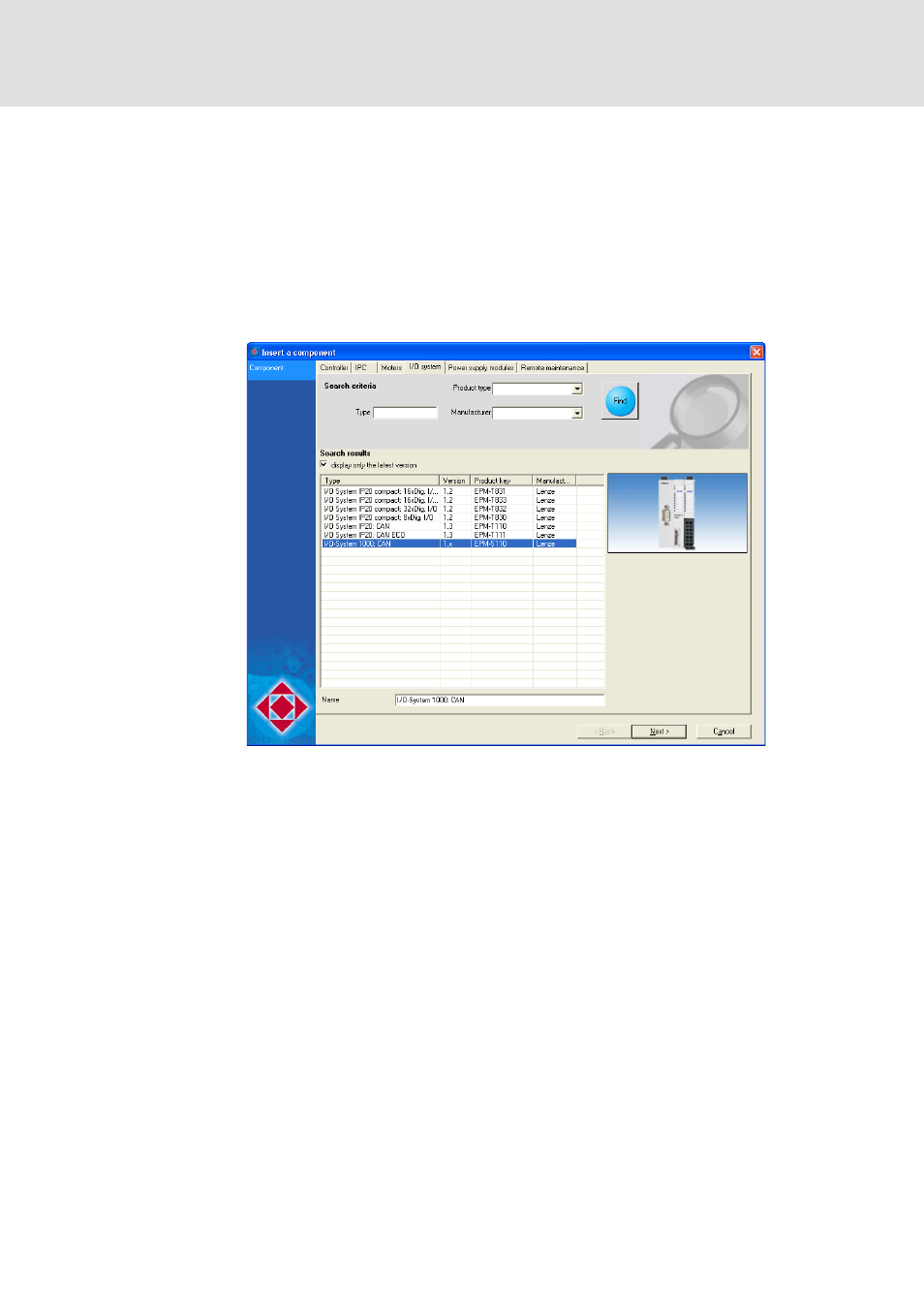

• The Insert a component dialog box appears.
Step 4 - Component
9. Select the I/O system tab.
• The Search results list field displays all I/O systems available.
10. Select the "I/O system 1000: CAN" module from the Search results list field.
• More details and technical data of the selected module are displays on the right
side.
11. Press Next.
