6.2.2 "DI2 TimeStamp" electronic module
6.2.2.1 Parameters tab

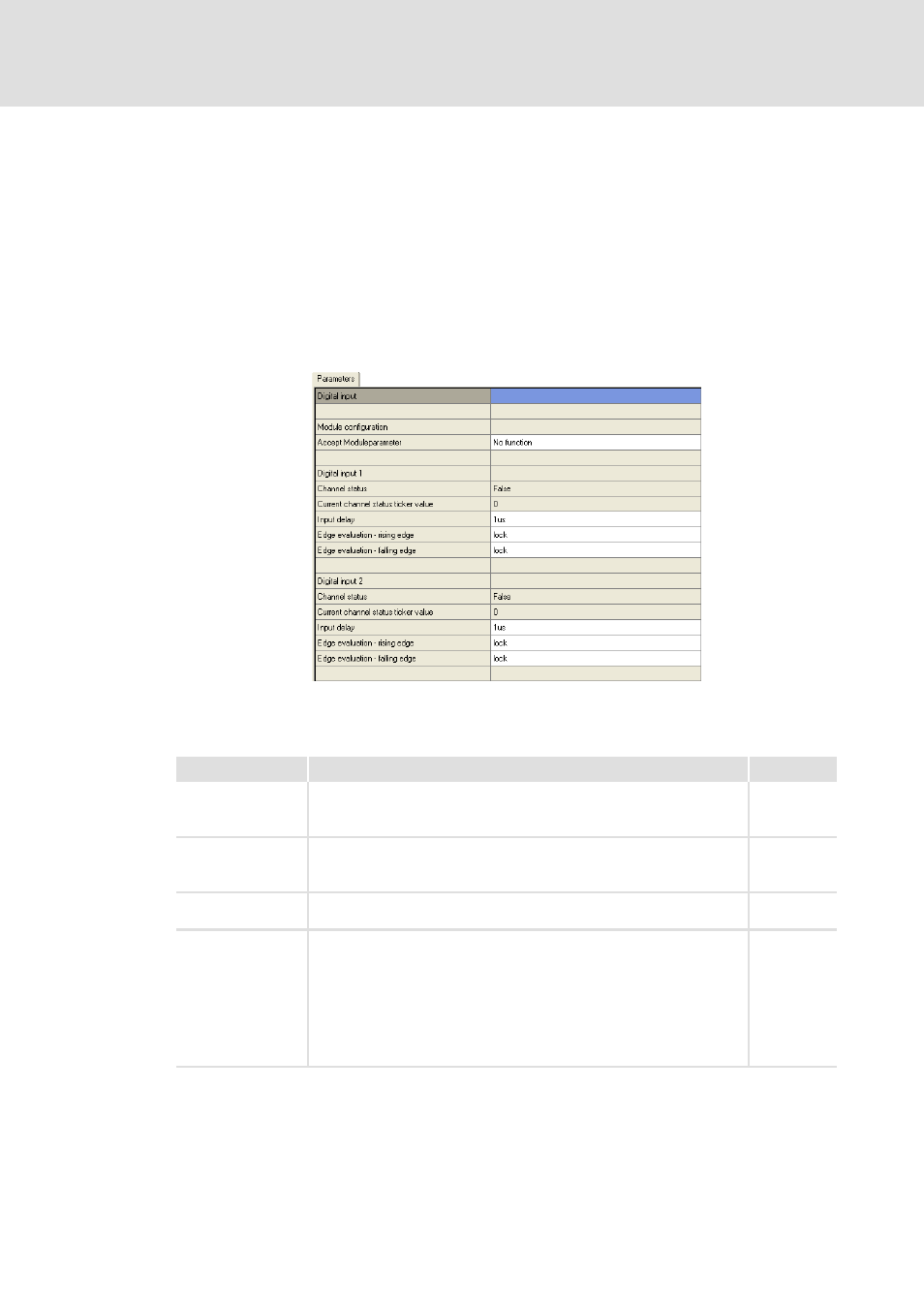

Use the Parameters tab to select the settings for the electronic module. In addition, the
channel status is indicated.

How to parameterise the electronic module:
1. Select the electronic module in the project view.
2. Click the Parameters tab in the workspace.
3. Make settings for each channel.
Legend Description Index
Accept module
parameter
Changed settings will not be accepted until the function has been executed.
Click the input field to open the drop down menu.
• 255: Accept module parameters
0x31FF
Channel status Display of the current output signal.
• TRUE: Signal level = HIGH
• FALSE: Signal level = LOW
0x5430
Current channel
status ticker value
Display of the current ticker value in [μs]. 0x5430
Input delay In the case of impure input signals, signal peaks can for instance be filtered.
Click the input field to open the drop down menu.
• 00: 1 μs
• 02: 3 μs
• 04: 10 μs
• 07: 86 μs
• 09: 342 μs
• 0C: 2731 μs
DI1: 0x3102
DI2: 0x3103
