5 Commissioning the device 29 2014-05-01
5.3 Selecting and editing parameters (plausibility inquiry for input values)
The values are displayed in the standard display.

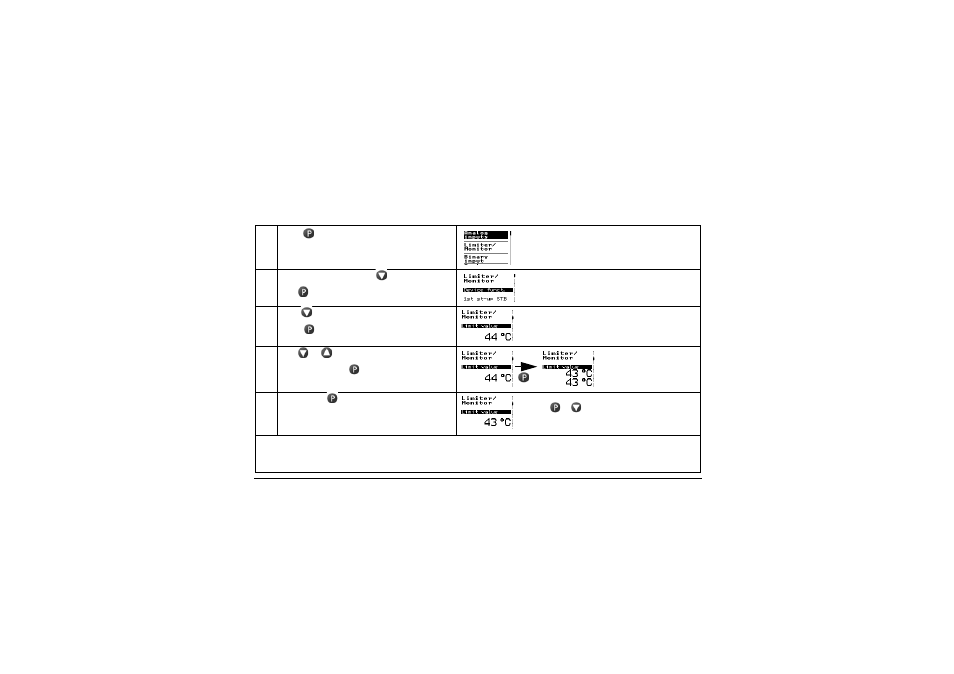

Carry out steps 1 to 4 to edit a value, e.g. in this case, the limit value
1 Press The first menu item "Analog inputs" has a black
background. The vertical line on the right shows
the current position.
2 Select limiter/monitor with
Use to change to the submenu
3 Press 2x until the limit value appears
Press (limit value flashes)
4 Use or to set the desired value
Acknowledge with
(limit value is shown in duplicate)
Limit value flashes in du-
plicate on the display as a
control.
5 Briefly press to confirm the value.
The value is applied and saved. Use + to return to the standard display
or menu topic "Back" or
return automatically after a timeout
H
If no key is pressed, the device automatically returns to the standard display after 30 seconds (timeout) and the value
is not saved. The length of the timeout is configurable.
v see operating overview on the first inner page of this manual.
