BIOS CONFIGURATION
66
• SCSI LUN
Each SCSI ID can support up to 8 LUNs. Most SAS controllers
treat each LUN as if it were a SAS disk.

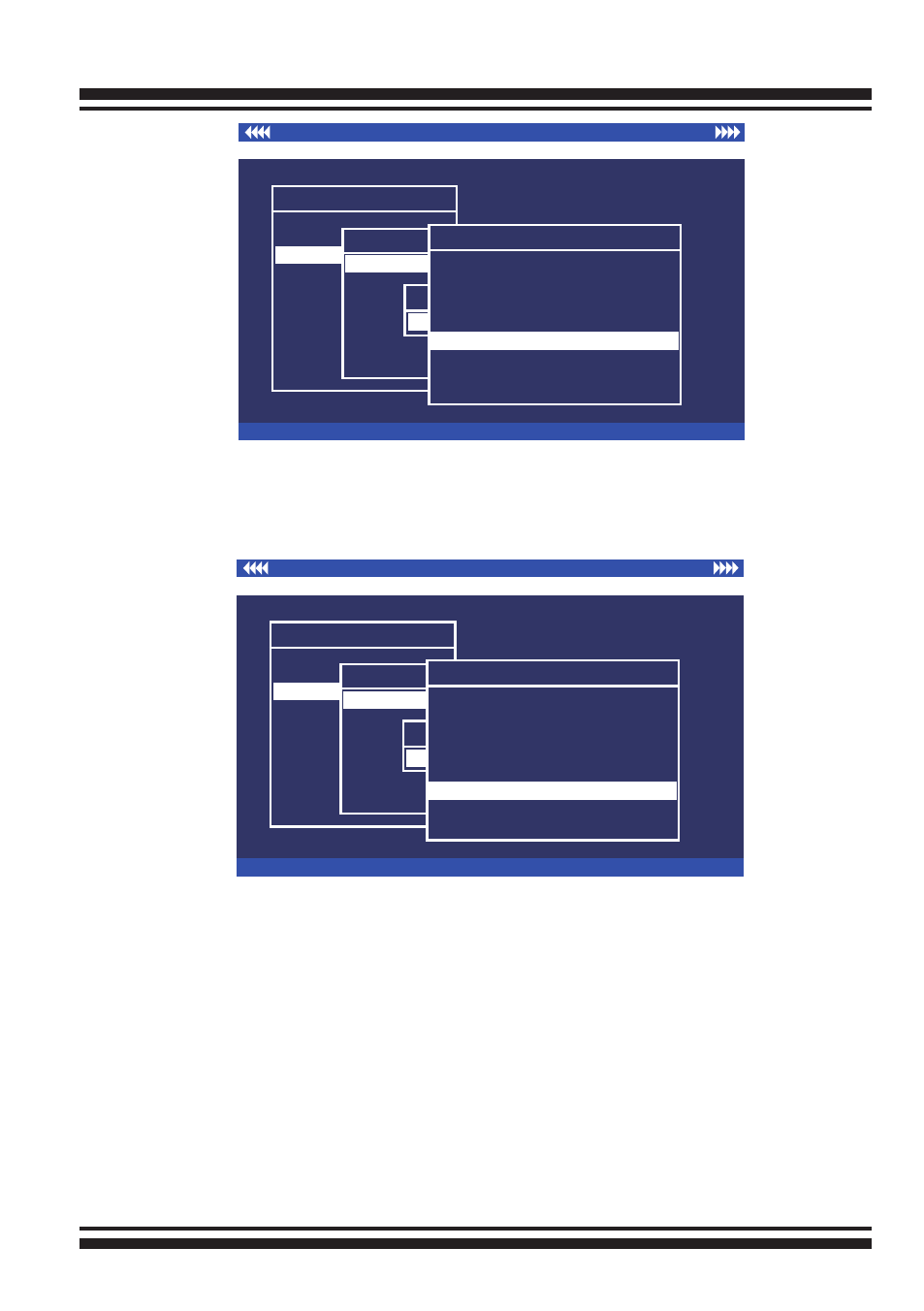

I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
Hdd Power Management
Ethernet Configuration
View System Events
Clear Event Buffer
Hardware Monitor
System information
Volume Set Function
Volume Set Functions
Creat Volume Set
Creat Raid30/50/60
Delete Volume Set
Modify Volume Set
Check Volume Set
StopVolume Check
Display Volume Info.
Create Volume Set
Create Volume From Raid Set
Raid Set # 00
Volume Creation
Volume Name : ARC-1680-VOL#00
Raid Level : 5
Capacity : 2400.0GB
Stripe Size : 64K
SCSI Channel : 0
SCSI ID : 0
SCSI LUN : 0
Cache Mode : Write Back
Tag Queuing : Enabled
SCSI ID : 0
I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
Hdd Power Management
Ethernet Configuration
View System Events
Clear Event Buffer
Hardware Monitor
System information
Volume Set Function
Volume Set Functions
Creat Volume Set
Creat Raid30/50/60
Delete Volume Set
Modify Volume Set
Check Volume Set
StopVolume Check
Display Volume Info.
Create Volume Set
Create Volume From Raid Set
Raid Set # 00
Volume Creation
Volume Name : ARC-1680-VOL#00
Raid Level : 5
Capacity : 2400.0GB
Stripe Size : 64K
SCSI Channel : 0
SCSI ID : 0
SCSI LUN : 0
Cache Mode : Write Back
Tag Queuing : Enabled
SCSI LUN : 0
• Cache Mode
User can set the cache mode to either “Write Through” or
“Write Back”.
