HARDWARE INSTALLATION
21
Connector Type Description
Front Side
1. (SCN5)
SAS 5-8 Ports (External) Min SAS 4x
2. (J4) Ethernet port RJ45
3. (J1) Manufacture Purpose Port 10-pin header
4. (JP1) RS232 Port for CLI to configure the ex-
pander functions
10-pin header
5. (J2) Battery Backup Module Connector 12-pin box header
6. (J6) Global Fault/Activity LED 4-pin header
7. (J8) Individual Fault LED Header 8-pin header
8. (J5) Individual Fault LED Header 8-pin header
9. (J3) I2C/LCD Connector 8-pin header
10. (SCN2) SAS 5-8 Ports (Internal) Min SAS 4i
11. (SCN1) SAS 1-4 Ports (Internal) Min SAS 4i
Back Side
12. (SCN4)
SAS 13-16 Ports (Internal) Min SAS 4i
13. (SCN3) SAS 9-12 Ports (Internal) Min SAS 4i
Table 2-5, ARC-1680IXL-12/16 Connectors

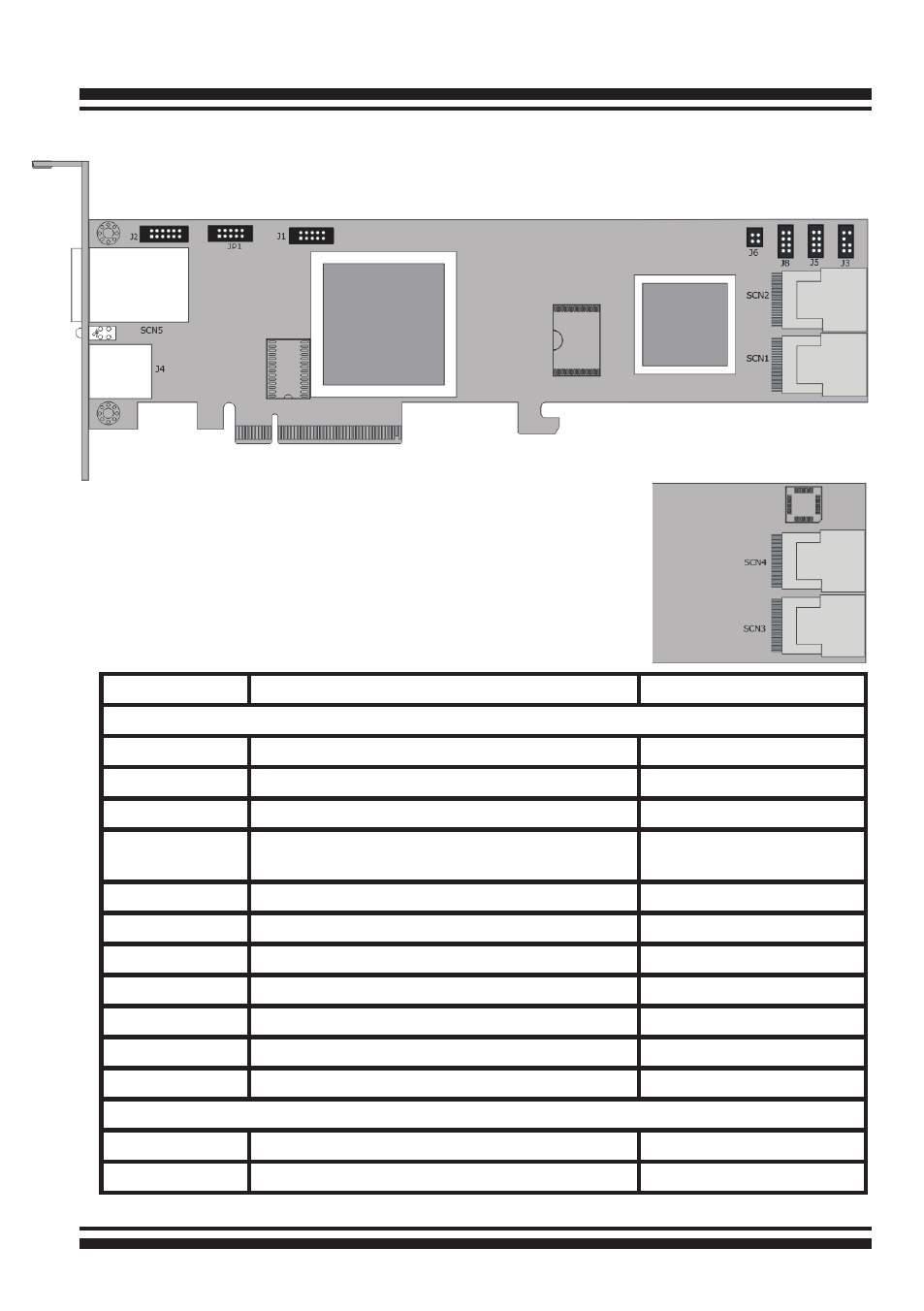

Figure 2-5, ARC-1680IXL-12/16
SAS RAID Controller
Front Side
Back Side
