5. After completed the modification of the volume set, press
the Esc key to confirm it. An “Initialization Mode” screen ap-
pears.
•Select “Foreground (Faster Completion)” for faster initializa-
tion of the selected volume set.
• Select “Background (Instant Available)” for normal initializa-
tion of the selected volume set.
• Select “No Init (To Rescue Volume)” for no initialization of
the selected volume.

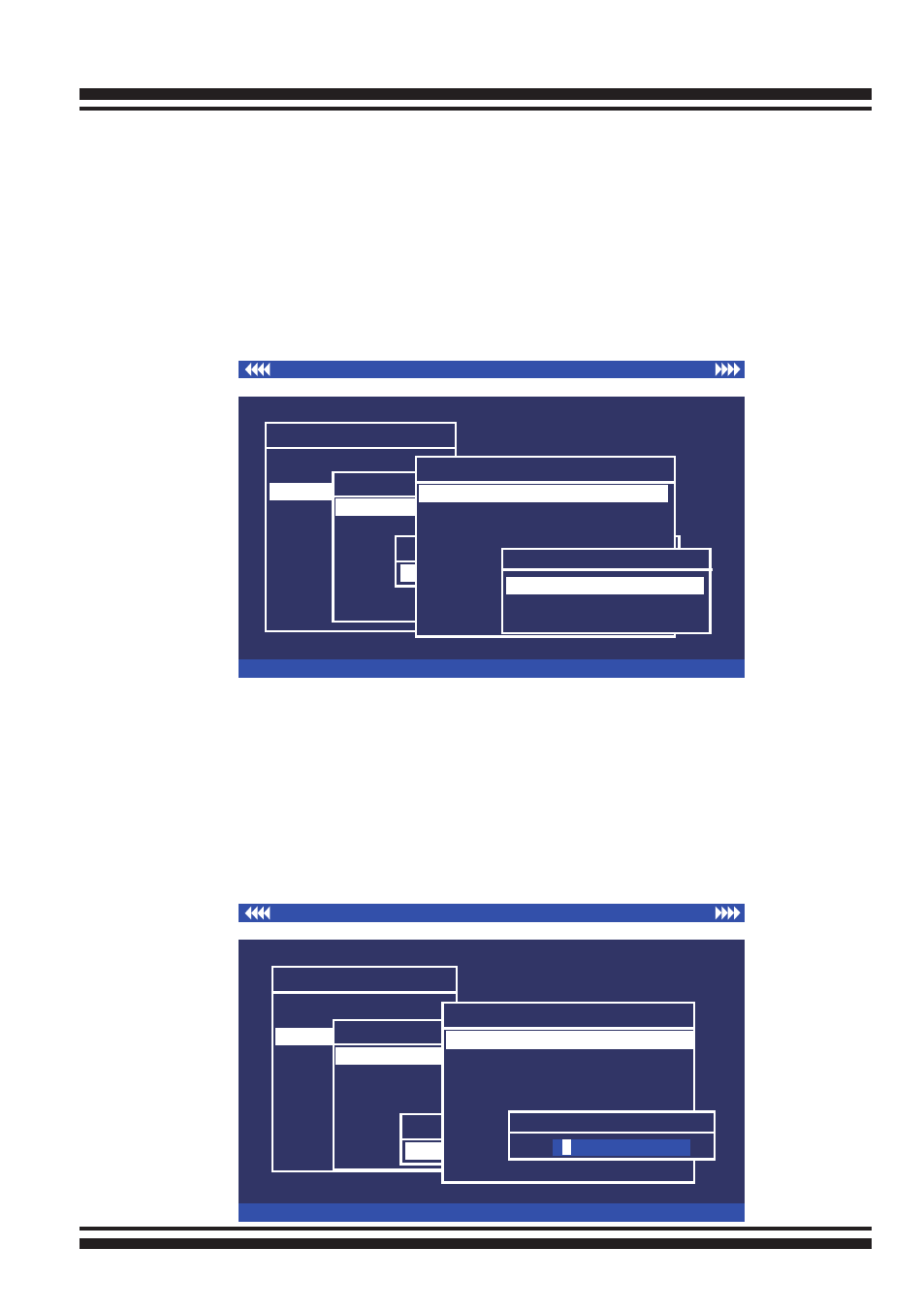

I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
Hdd Power Management
Ethernet Configuration
View System Events
Clear Event Buffer
Hardware Monitor
System information
Volume Set Function
Volume Set Functions
Creat Volume Set
Creat Raid30/50/60
Delete Volume Set
Modify Volume Set
Check Volume Set
StopVolume Check
Display Volume Info.
Create Volume Set
Create Volume From Raid Set
Raid Set # 00
Volume Creation
Raid Level : 5
Capacity : 2400.0GB
Stripe Size : 64K
SCSI Channel : 0
SCSI ID : 0
SCSI LUN : 0
Cache Mode : Write Back
Tag Queuing : Enabled
Volume Name : Volume Set # 00
Initialization Mode
Background (Instant Available)
No Init (To Rescue Volume)
Foreground (Faster Completion)
6. Repeat steps 3 to 5 to create additional volume sets.
7. The initialization percentage of volume set will be displayed at
the button line.
• Volume Name
The default volume name will always appear as ARC-1680-VOL
#. You can rename the volume set providing it does not exceed
the 15 characters limit.
I/O Port Addr : 28000000h, F2(Tab): Select Controller, F10: Reboot System
ArrowKey Or AZ:Move Cursor, Enter: Select, ESC: Escape, L:Line Draw, X: Redraw
Areca Technology Corporation RAID Controller
Main Menu
Quick Volume/Raid Setup
Raid Set Function
Volume Set Function
Physical Drives
Raid System Function
Hdd Power Management
Ethernet Configuration
View System Events
Clear Event Buffer
Hardware Monitor
System information
Volume Set Function
Volume Set Functions
Creat Volume Set
Creat Raid30/50/60
Delete Volume Set
Modify Volume Set
Check Volume Set
StopVolume Check
Display Volume Info.
Create Volume Set
Create Volume From Raid Set
Raid Set # 00
Volume Creation
Raid Level : 5
Capacity : 2400.0GB
Stripe Size : 64K
SCSI Channel : 0
SCSI ID : 0
SCSI LUN : 0
Cache Mode : Write Back
Tag Queuing : Enabled
Volume Name : ARC-1680-VOL# 00
Edit The Volume Name
RC-1680-VOL# 00 A
