WEB BROWSER-BASED CONFIGURATION
to the 10/100 RJ45 LAN port.
To configure RAID controller on a remote machine, you need to
know its IP address. The IP address will default show in McBIOS
RAID manager of “Ethernet Configuration” or “System Informa-
tion” option. Launch your firmware-embedded TCP/IP & web
browser-based McRAID storage manager by entering http://[IP
Address] in the web browser.
6.2 SAS RAID controller McRAID Storage
Manager

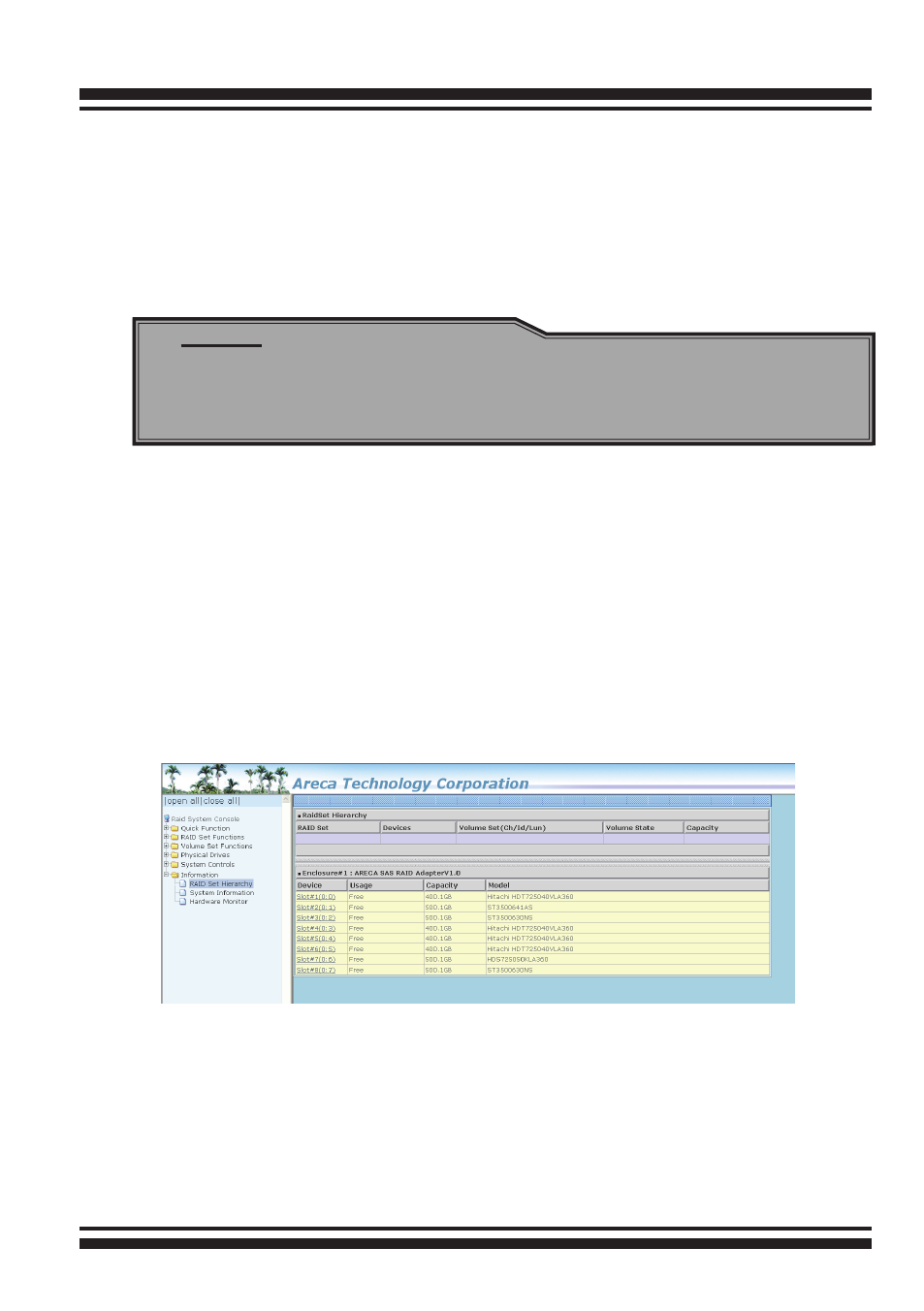

The McRAID storage manager initial start-up screen displays the
current configuration of your SAS RAID controller. It displays the
“Raid Set List”, “Volume Set List”, and “Physical Disk List”. The
RAID set information, volume set information, and drive informa-
tion can also be viewed by clicking on the “RAID Set Hierarchy”
screen. The current configuration can also be viewed by clicking on
“RAID Set Hierarchy” in the main menu.
Note:
You can find controller Ethernet port IP address in McBIOS
RAID manager “System Information” option.
To display RAID set information, move the mouse cursor to the
desired RAID set number, then click it. The RAID set information
will appear. To display volume set information, move the mouse
cursor to the desired volume set number, then click it. The volume
set Information will display. To display drive information, move the
mouse cursor to the desired physical drive number, then click it.
The drive information will display.
