HARDWARE INSTALLATION
19

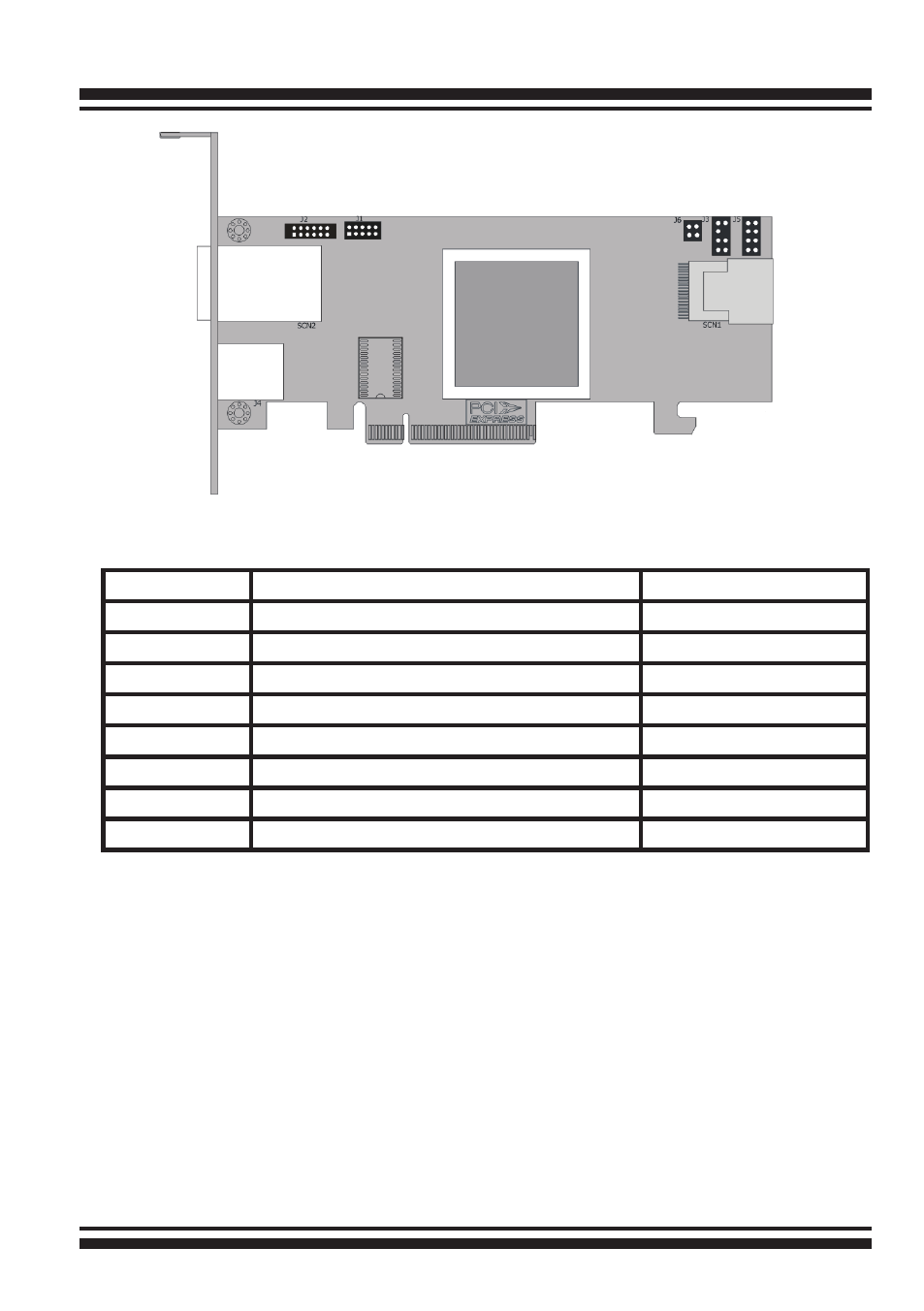

Figure 2-3, ARC-1680LP SAS RAID Controller
Connector Type Description
1. (J2) Battery Backup Module Connector 12-pin box header
2. (J1) Manufacture Purpose Port 10-pin header
3. (J6) Global Fault/Activity LED 4-pin header
4. (J3) I2C/LCD Connector 8-pin header
5. (J5) Individual Fault/Activity LED Header 8-pin header
6. (SCN1) SAS 1-4 Ports (Internal) Min SAS 4i
7. (SCN2) SAS 5-8 Ports (External) Min SAS 4x
8. (J4) Ethernet port RJ45
Table 2-3, ARC-1680LP Connectors
