WEB BROWSER-BASED CONFIGURATION
120
6.3 Main Menu
The main menu shows all available functions, accessible by clicking
on the appropriate link.
Individual Category Description
Quick Function Create a default configuration, which is based
on the number of physical disks installed; it can
modify the volume set Capacity, Raid Level, and
Stripe Size.
Raid Set Functions Create a customized RAID set.
Volume Set Functions Create customized volume sets and modify the
existed volume sets parameter.
Physical Drives Create pass through disks and modify the existing
pass through drives parameters. Also provides
the function to identify disk drives (blinking fault
LED).
System Controls Setting the RAID system configuration.
Information Viewing the controller information. The Raid Set
Hierarchy can be viewed through the “Raid Set
Hierarchy” item.

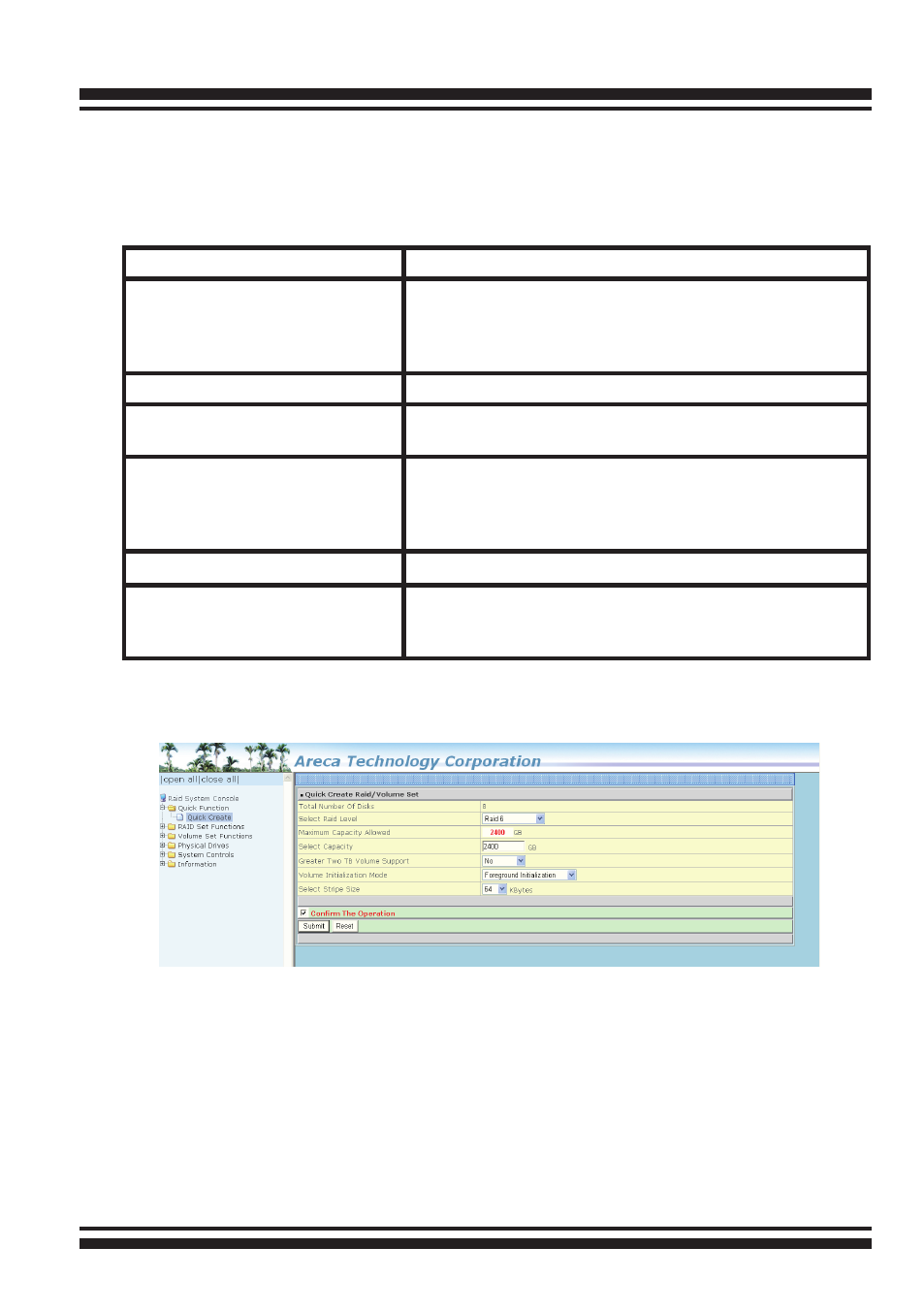

6.4 Quick Function
The number of physical drives in the SAS RAID controller deter-
mines the RAID levels that can be implemented with the RAID set.
You can create a RAID set associated with exactly one volume set.
The user can change the RAID Level, Capacity, Initialization Mode
and Stripe Size. A hot spare option is also created, depending on
the exist configuration. Click the “Confirm The Operation” check
box and click on the “Submit” button in the “Quick Create” screen,
the RAID set and volume set will start to initialize.
