SwitchBlade x8112 Chassis Switch Installation Guide
85
3. Insert one end of the grounding wire into the grounding lug, as shown
in Figure 40, and use a crimping tool to secure the wire to the
grounding lug.

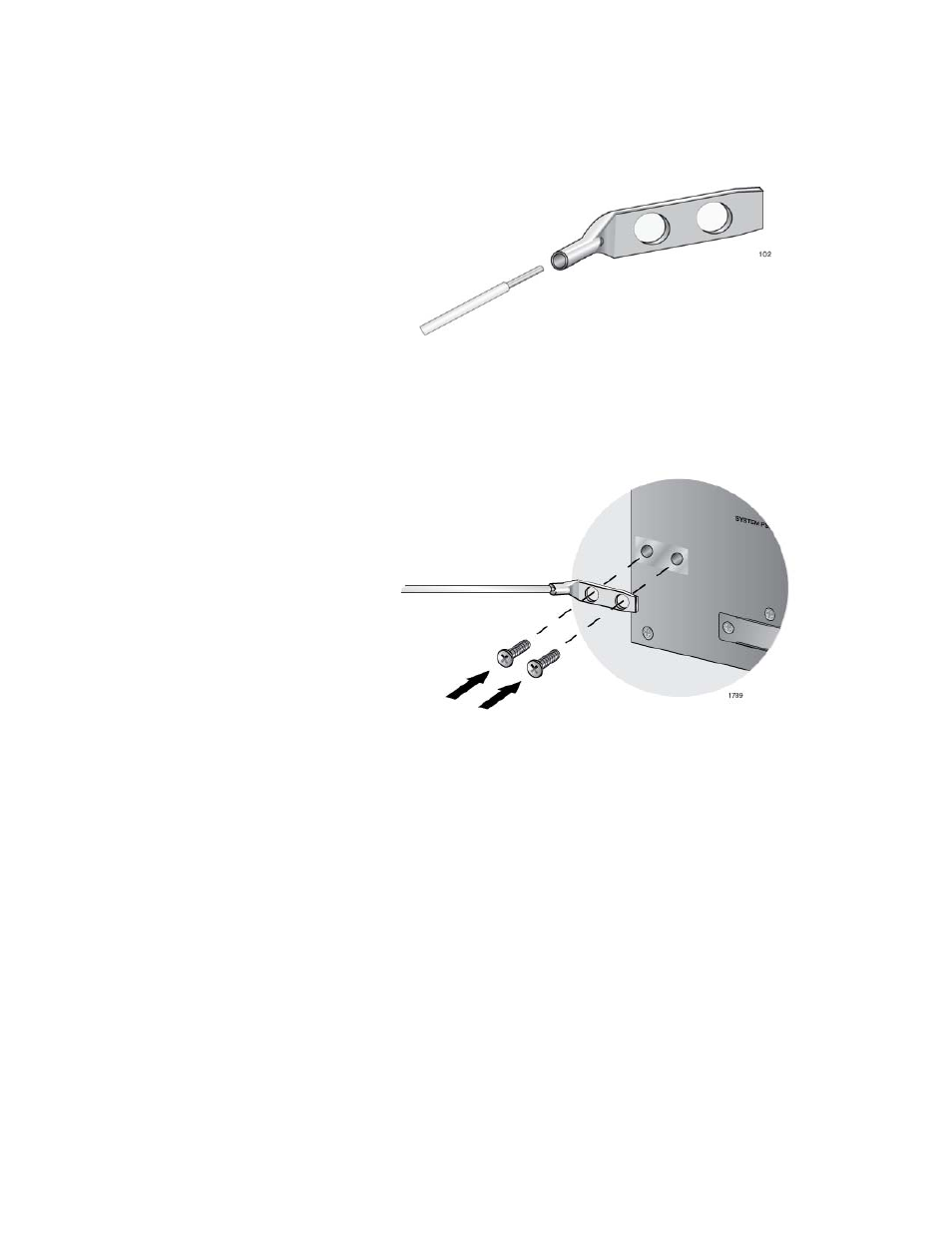

Figure 40. Attaching the Grounding Wire to the Grounding Lug
4. Install the grounding lug on the rear panel of the chassis, as shown in
Figure 41. Allied Telesis recommends tightening the screws to
20 inch-lbs.
Figure 41. Installing the Grounding Lug and Wire
5. Connect the other end of the grounding wire to the building protective
earth.
6. Go to Chapter 4, “Installing the Power Supplies” on page 87.
