Allied Telesis SwitchBlade x8112 User Manual
Page 172
Chapter 7: Powering On the Chassis
172

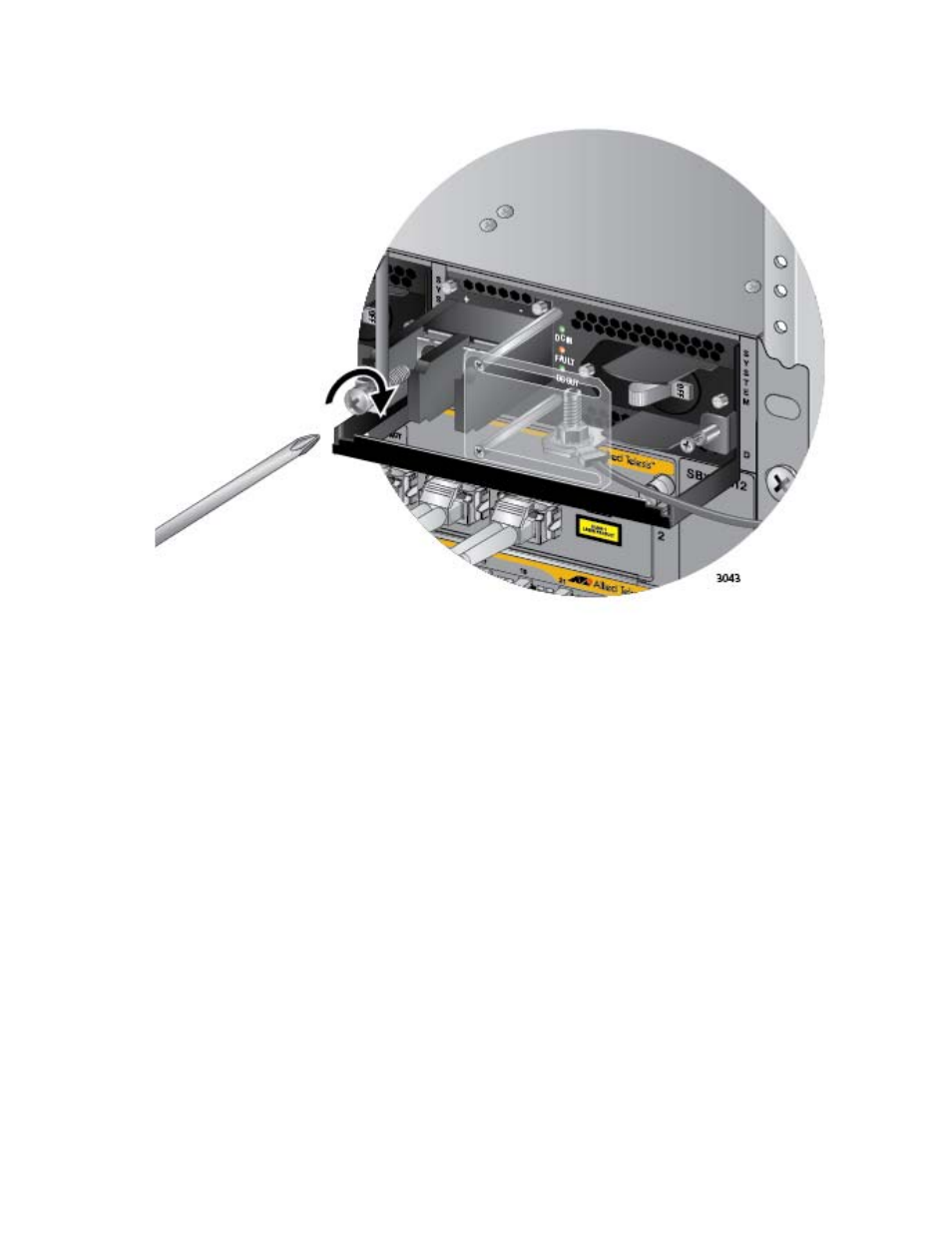

Figure 126. Connecting the Positive Wire With Bare Wire
5. Wrap the negative lead wire clockwise around the remaining terminal
screw and secure the screw and wire to the negative terminal
connection on the terminal block with a #3 Phillips-head screwdriver,
as shown in Figure 127 on page 173. The negative terminal is on the
right.
