Allied Telesis SwitchBlade x8112 User Manual
Page 225
SwitchBlade x8112 Chassis Switch Installation Guide
225

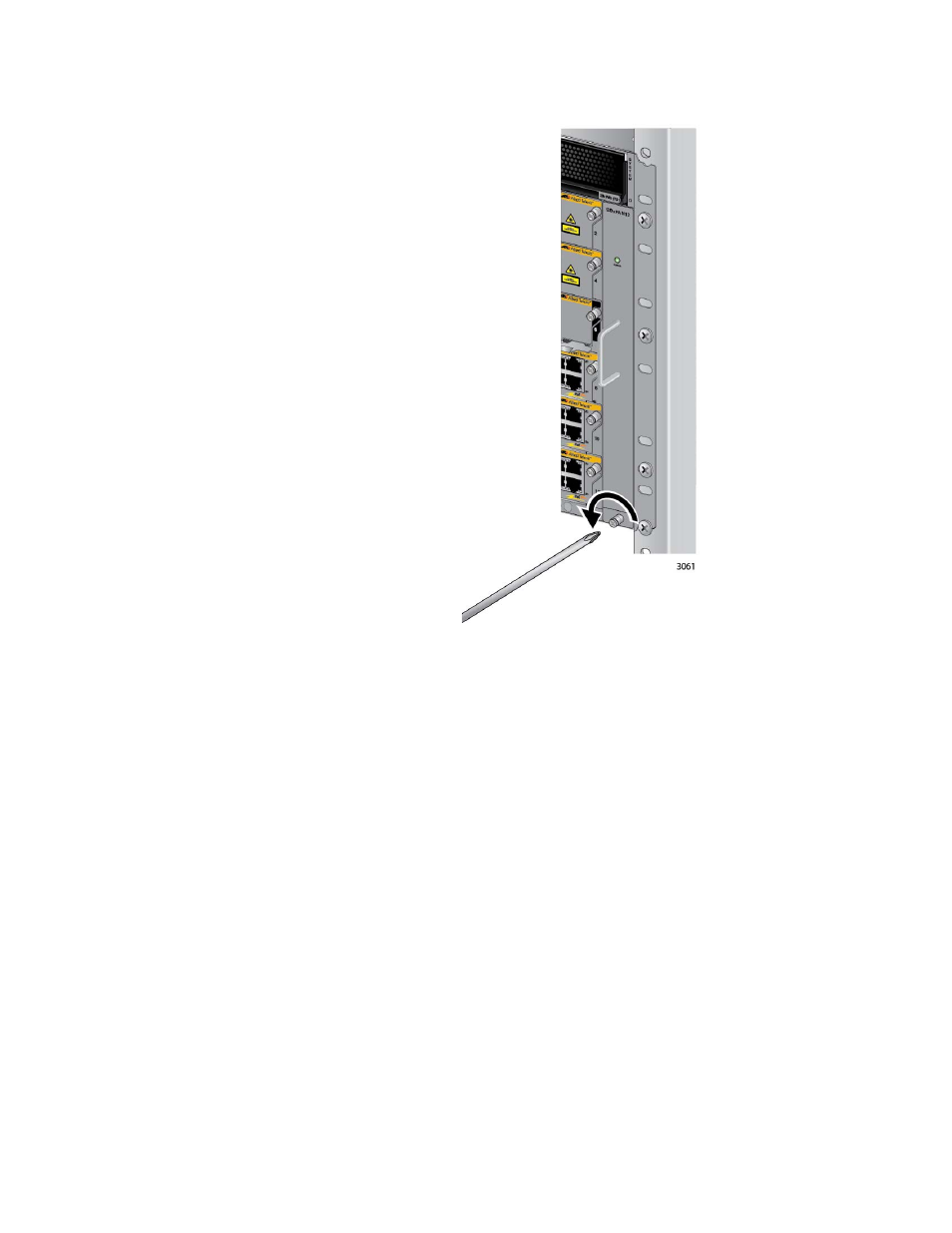

Figure 149. Loosening the Screw on the AT-SBxFAN12 Fan Module
3. Carefully pull on the handle to disconnect the fan module from the
connector on the backplane of the chassis. Refer to Figure 150 on
page 226.
