SwitchBlade x8112 Chassis Switch Installation Guide
147
3. Use the twist tie that comes with the power supply to secure the cord to

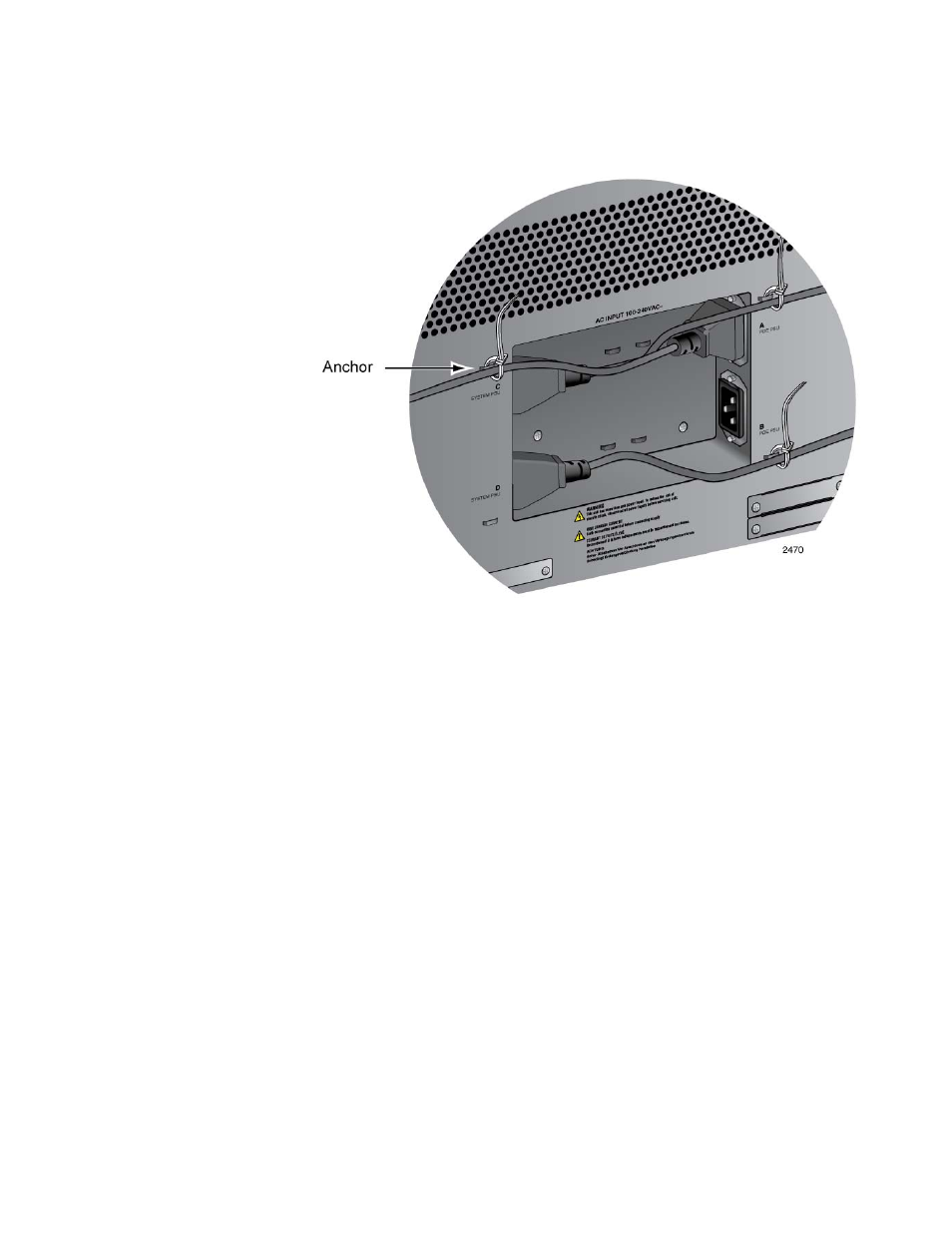

an anchor on the chassis, as shown in Figure 97.
Figure 97. Securing the Power Cord for the AT-SBxPWRPOE1 Power
Supply to an Anchor
4. Connect the power cord to an appropriate AC power source to power
on the power supply.
5. If the chassis has two AT-SBxPWRPOE1 Power Supplies, repeat this
procedure to power on the second power supply.
Figure 98 on page 148 is an illustration of the power cords for a
chassis with four power supplies.
