Figure 112: opening the plastic cover – Allied Telesis SwitchBlade x8112 User Manual
Page 159
SwitchBlade x8112 Chassis Switch Installation Guide
159

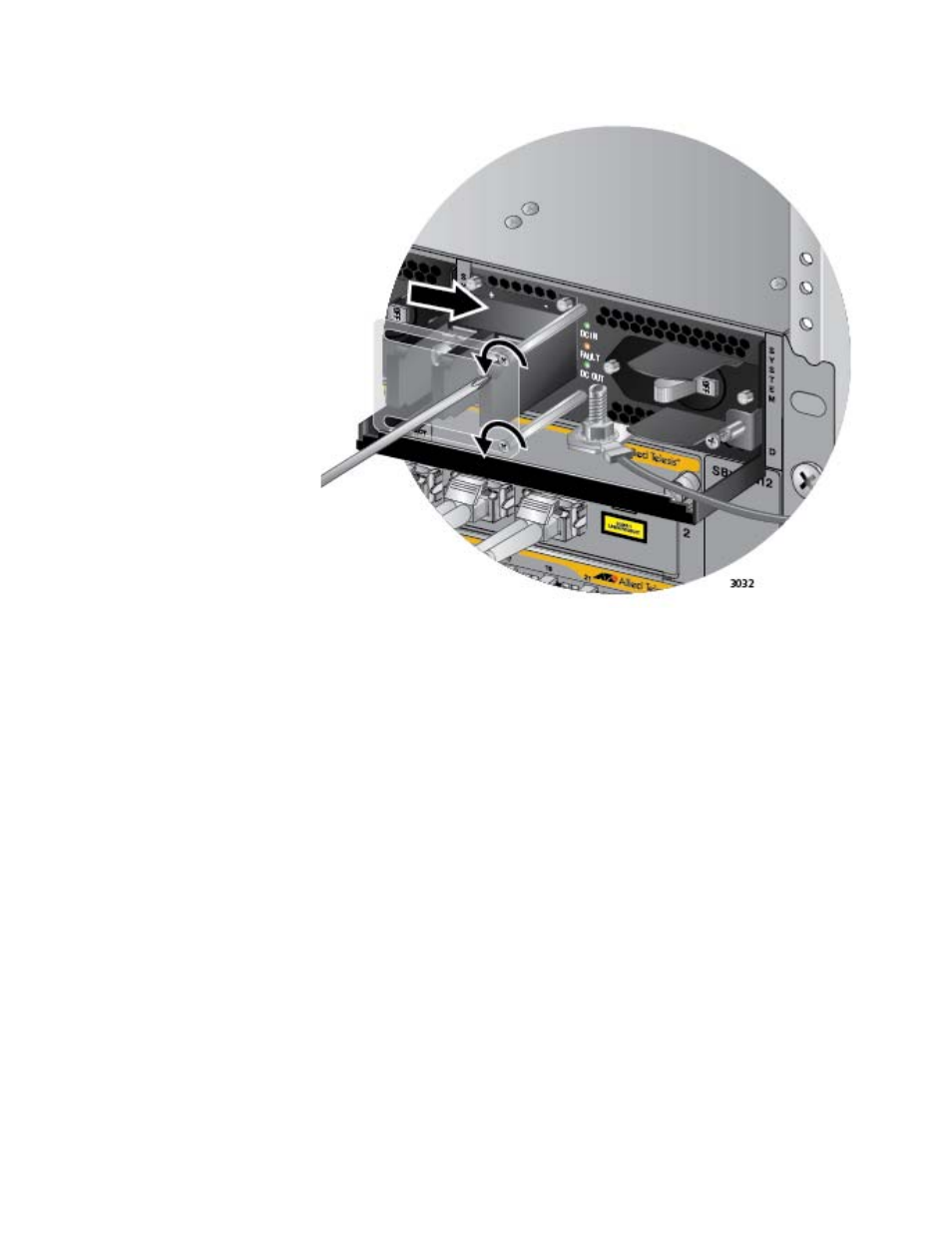

Figure 112. Opening the Plastic Cover
5. Use a #3 Phillips-head screwdriver to remove the two screws from the
positive and negative terminals, as shown in Figure 113 on page 160.
