SwitchBlade x8112 Chassis Switch Installation Guide
39
AT-SBx81GT40
Line Card
The LEDs for a port on the AT-SBx81GT40 Line Card are found on the RJ
point 5 cable connector. The LEDs are shown in Figure 17.

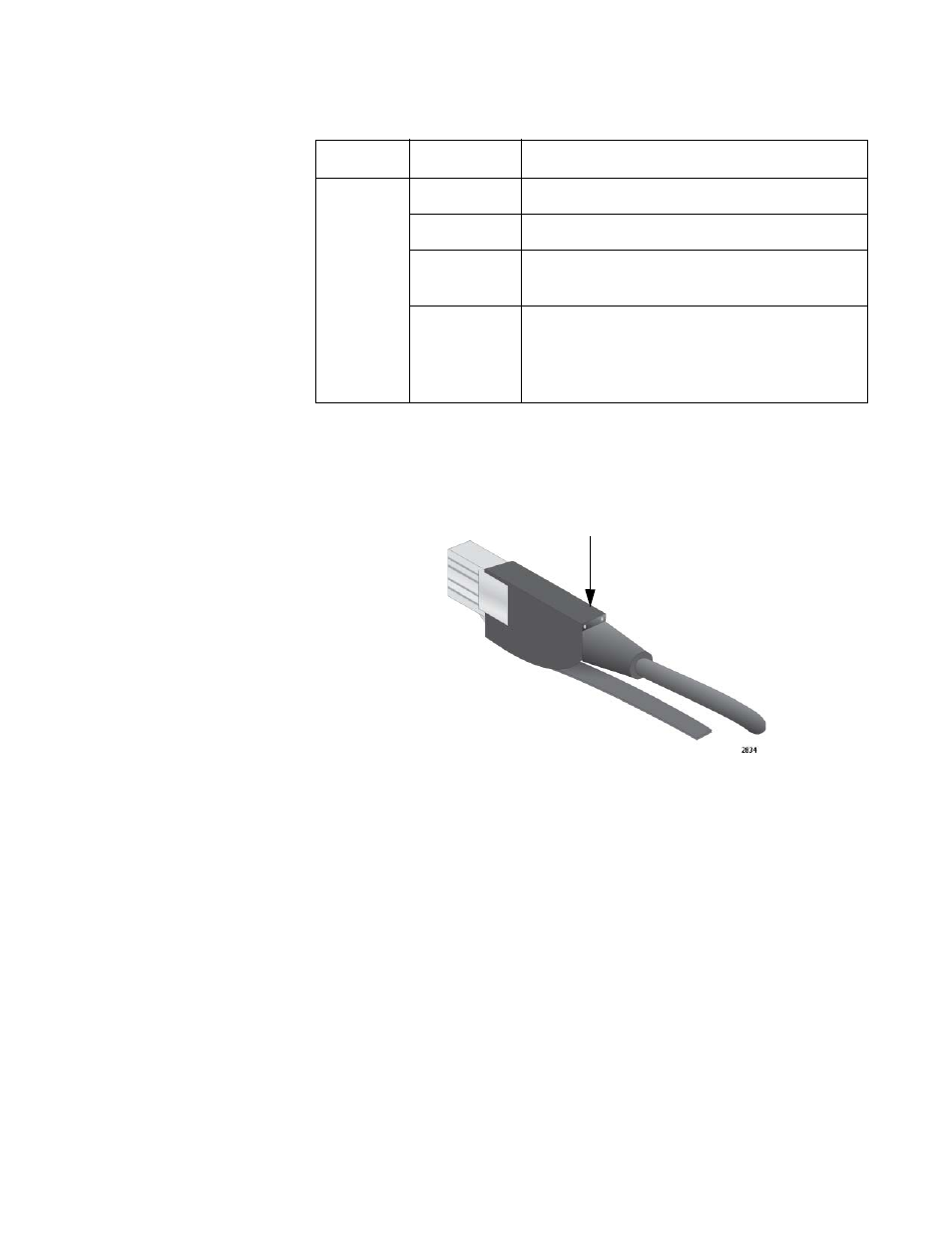

Figure 17. Port LEDs on an RJ Point 5 Cable Connector for the AT-
SBx81GT40 Line Card
Only the left LED is active. Refer to Figure 18 on page 40. It displays link
and activity information about a port. The states of the LED are defined in
Table 6 on page 40.
Duplex
Mode
Solid Green The port is operating in full duplex mode.
Solid Amber The port is operating in half duplex mode.
Flashing
amber The port is operating in half duplex mode,
with collisions.
Off The port has not established a link with
another network device or the LEDs are
turned off. To turn on the LEDs, use the
eco-friendly button.
Table 5. Port LEDs on the AT-SBx81GT24 Line Card (Continued)
LED State Description
LEDs
