Allied Telesis SwitchBlade x8112 User Manual
Page 24
Chapter 1: Overview
24

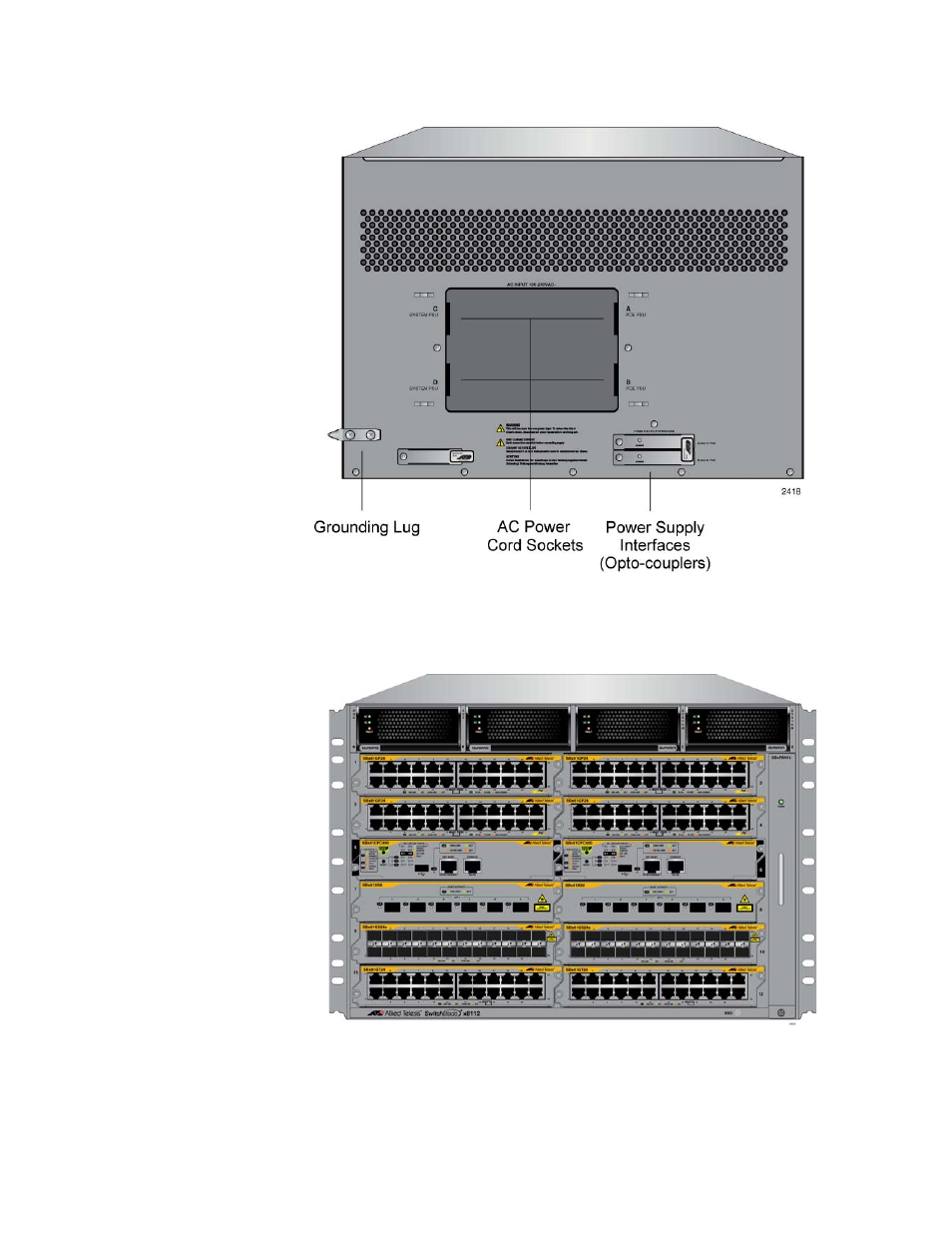

Figure 7. Rear View of the AT-SBx8112 Chassis
Figure 8 is an example of a fully populated chassis.
Figure 8. AT-SBx8112 Chassis with Line Cards, Controller Cards, and
Power Supplies
