Allied Telesis SwitchBlade x8112 User Manual
Page 230
Chapter 10: Replacing Modules
230

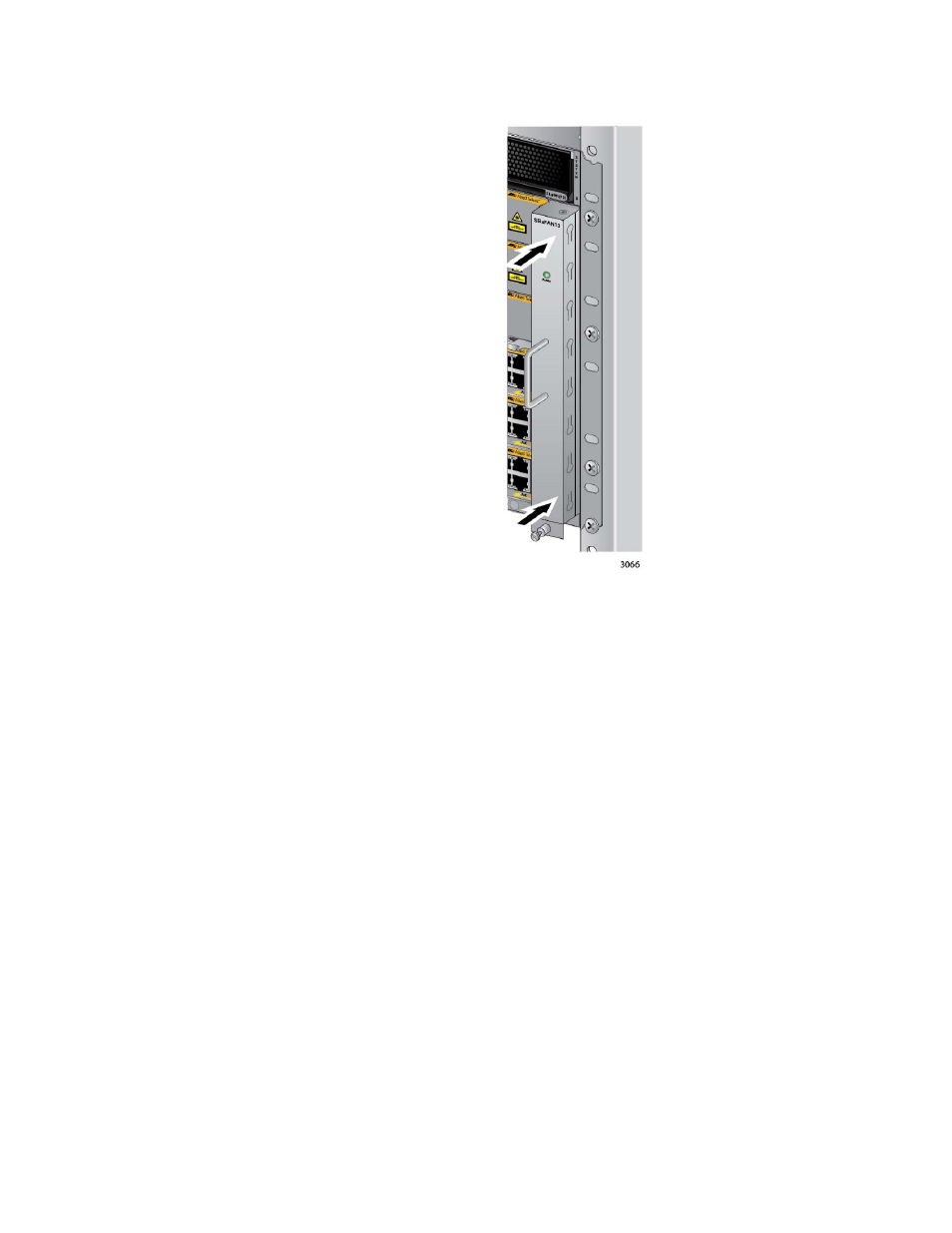

Figure 154. Securing the AT-SBxFAN12 Fan Module on the Backplane
Connector
3. With a #2 Phillips-head screwdriver, tighten the screw at the base of
the module to secure the module to the chassis. Refer to Figure 155
on page 231.
