Chapter 7: Powering On the Chassis
158

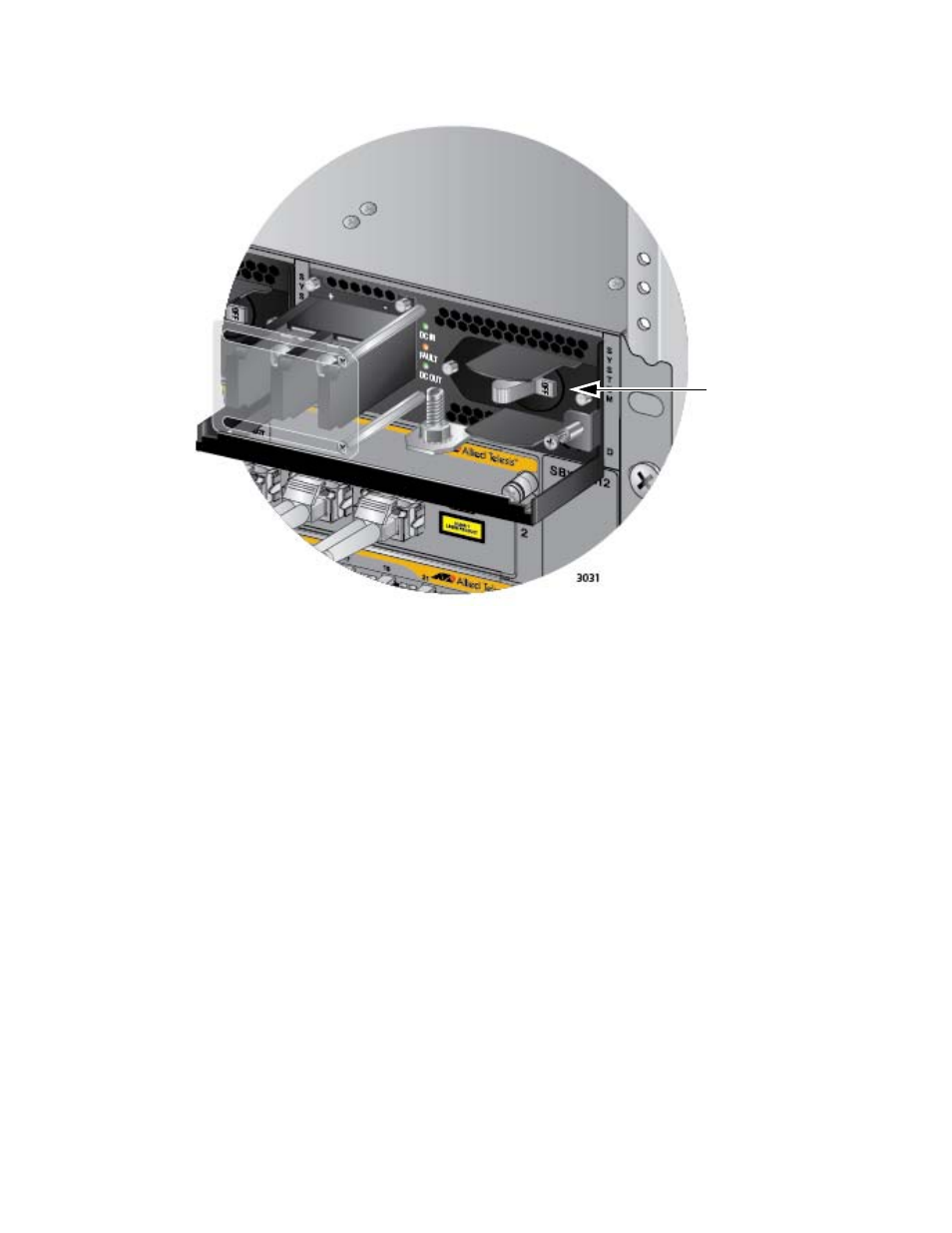

Figure 111. On/Off Switch on the AT-SBxPWRSYS1 DC Power Supply
4. Use a #1 Phillips-head screwdriver to loosen the two screws on the
plastic cover over the positive and negative terminals on the power
supply and slide the cover to the right, as shown in Figure 112 on page
159. You may need to lift the locking handle slightly to access the
bottom screw.
On/Off Switch
