Allied Telesis SwitchBlade x8112 User Manual
Page 213
SwitchBlade x8112 Chassis Switch Installation Guide
213

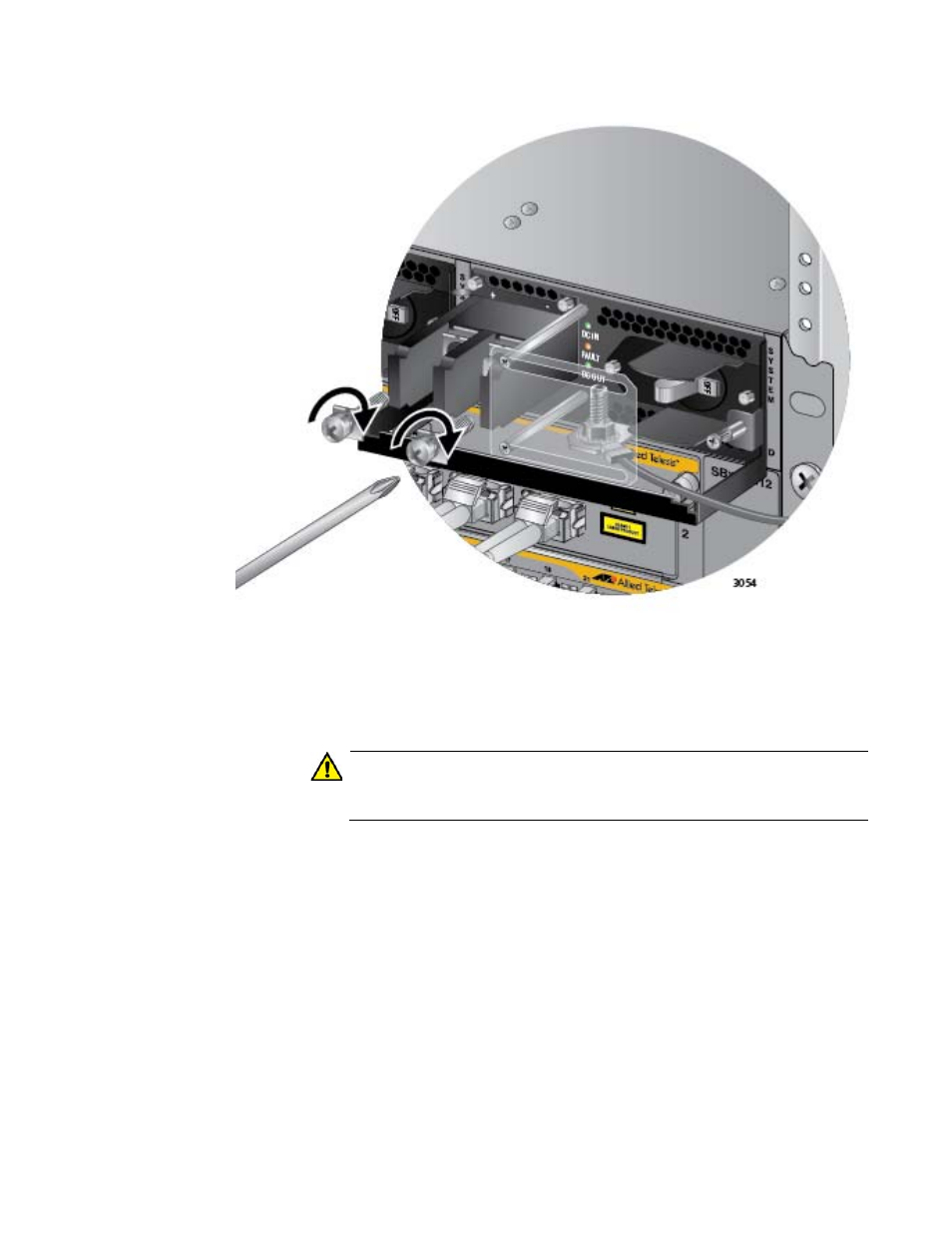

Figure 142. Reinstalling the Screws on the Positive and Negative
Terminals
8. Slide the plastic cover to the left and lightly tighten the two screws to
secure it in place. Refer to Figure 143 on page 214.
Caution
Do not over tighten the screws or you may crack or break the plastic
cover.
The plastic cover may not be present if the lead wires were connected
to the terminal block with the right angle terminals. If this is the case,
you may either skip this step or reinstall the plastic cover on the power
supply.
