Allied Telesis SwitchBlade x8112 User Manual
Page 119
SwitchBlade x8112 Chassis Switch Installation Guide
119

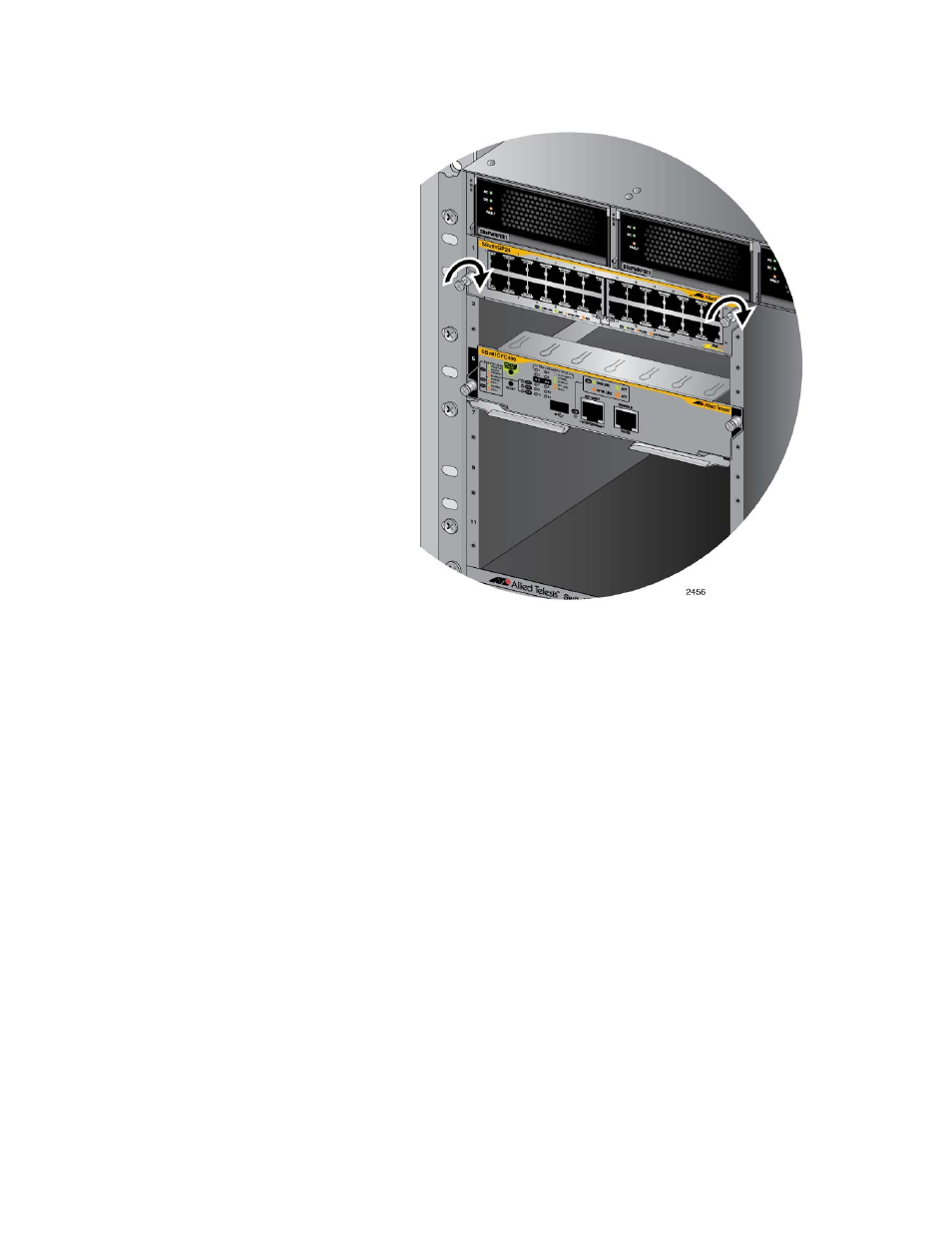

Figure 75. Tightening the Thumb Screws on an Ethernet Line Card
8. Tighten the two screws with a # 2 Phillips-head screwdriver to secure
the line card to the chassis.
Allied Telesis recommends tightening the screws to 5 inch-lbs.
9. Repeat this procedure to install the remaining Ethernet line cards.
10. After installing the line cards. go to “Installing the Blank Slot Covers” on
