SwitchBlade x8112 Chassis Switch Installation Guide
117

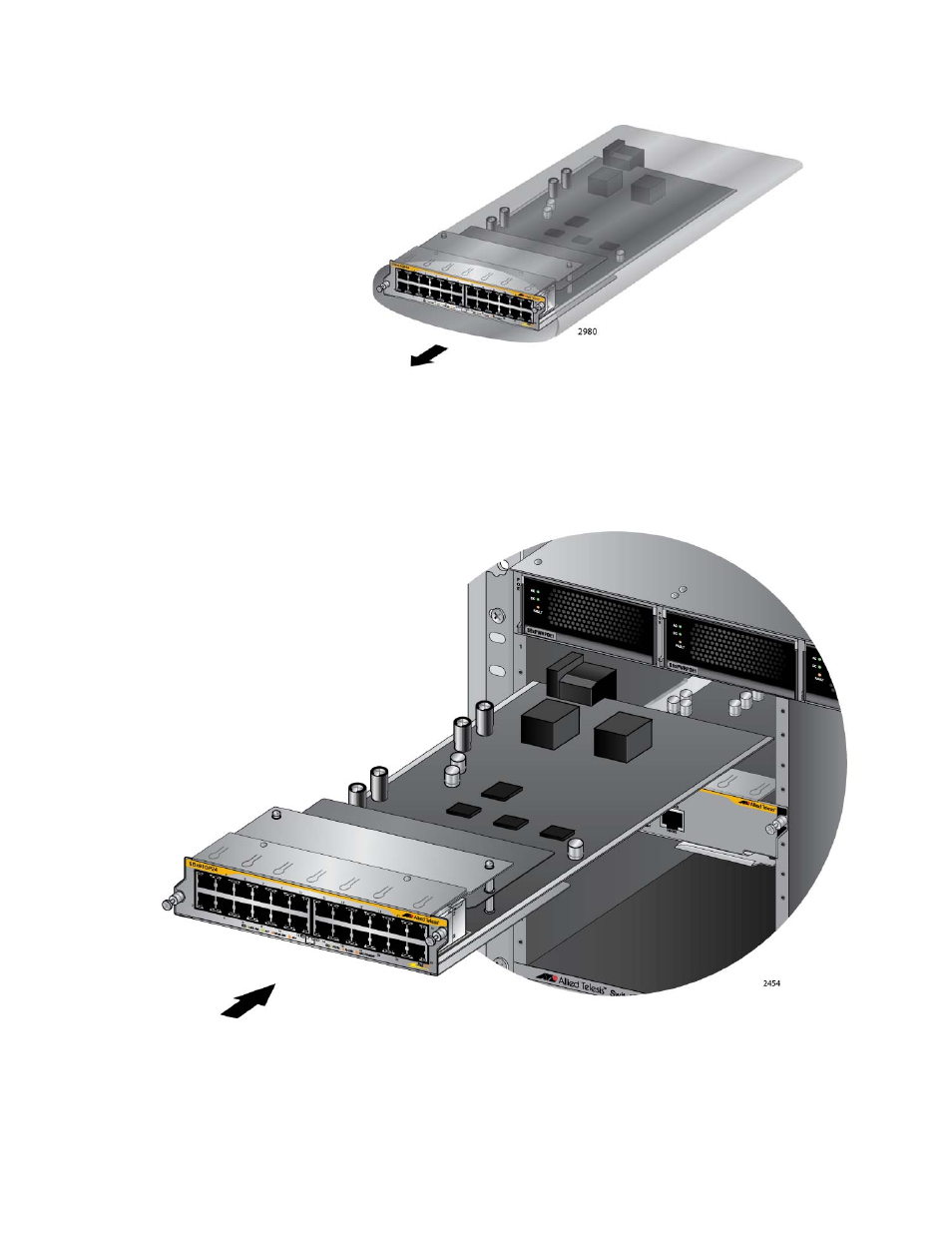

Figure 72. Removing an Ethernet Line Card from the Anti-static Bag
4. Align the line card with the internal chassis card guides in the selected
slot in the chassis.
Figure 73 shows an Ethernet line card aligned with slot 1.
Figure 73. Aligning an Ethernet Line Card in a Chassis Slot
5. Carefully slide the card into the slot.
