Powering On the AT-SBxPWRSYS1 AC System Power Supply

The procedure in this section explains how to power on the AT-
SBxPWRSYS1 AC System Power Supplies in slots C and D on the front
panel. If you have not already installed the power supplies, refer to
“Installing the AT-SBxPWRSYS1 AC System Power Supply” on page 89
for installation instructions.

Note

If the chassis has both AT-SBxPWRSYS1 and AT-SBxPWRPOE1
Power Supplies, you may power on the power supplies in any order.
The power supplies may also be powered on simultaneously.

To power on the chassis, perform the following procedure:

1. Identify AC sockets C and D in the recessed panel on the back panel

of the chassis, shown in Figure 93. These sockets are for the AT-
SBxPWRSYS1 System Power Supplies in slots C and D on the front
panel of the chassis.

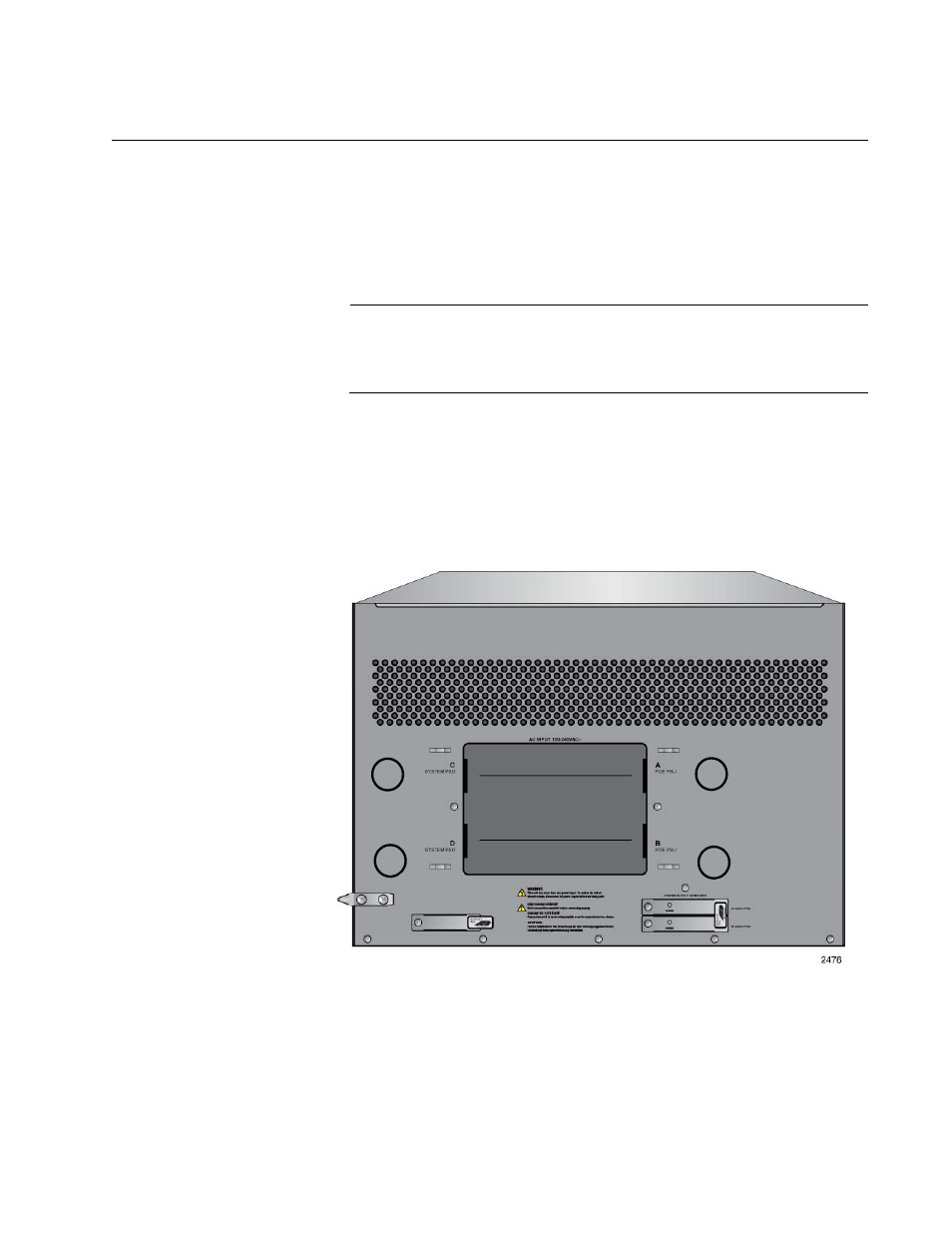

Figure 93. AC Sockets on the Rear Panel of the AT-SBx8112 Chassis

2. Plug the AC power cord that comes with the power supply into a plug

whose corresponding slot on the front panel has a system power
supply.
