Chapter 10: Replacing Modules

212

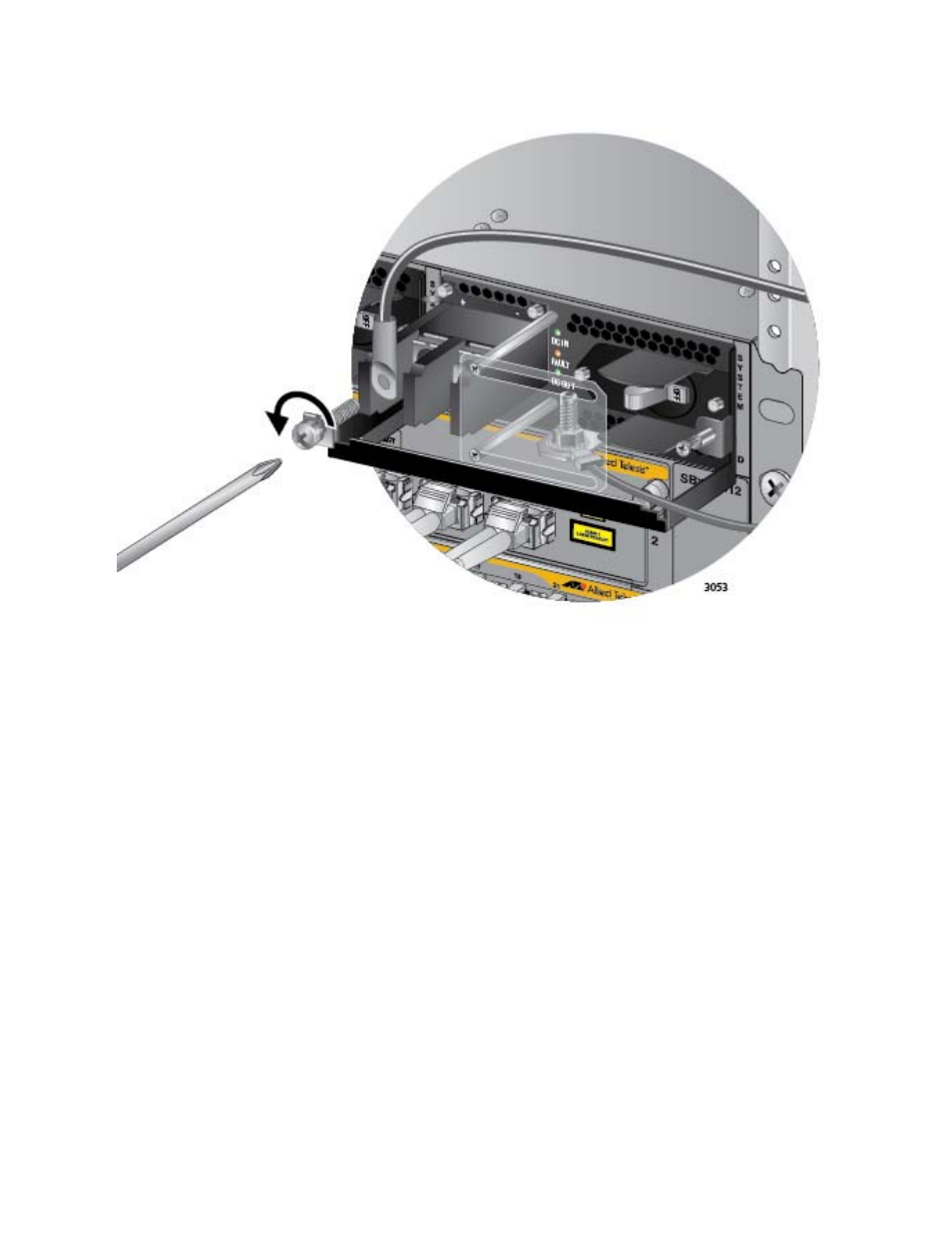

Figure 141. Removing the Positive Lead Wire from the Terminal Block

7. Reinstall the two screws on the negative (-) and positive (+) terminals.

Refer to Figure 142 on page 213.
