Allied Telesis SwitchBlade x8112 User Manual
Page 112
Chapter 5: Installing the AT-SBx81CFC400 Control Card and Ethernet Line Cards
112

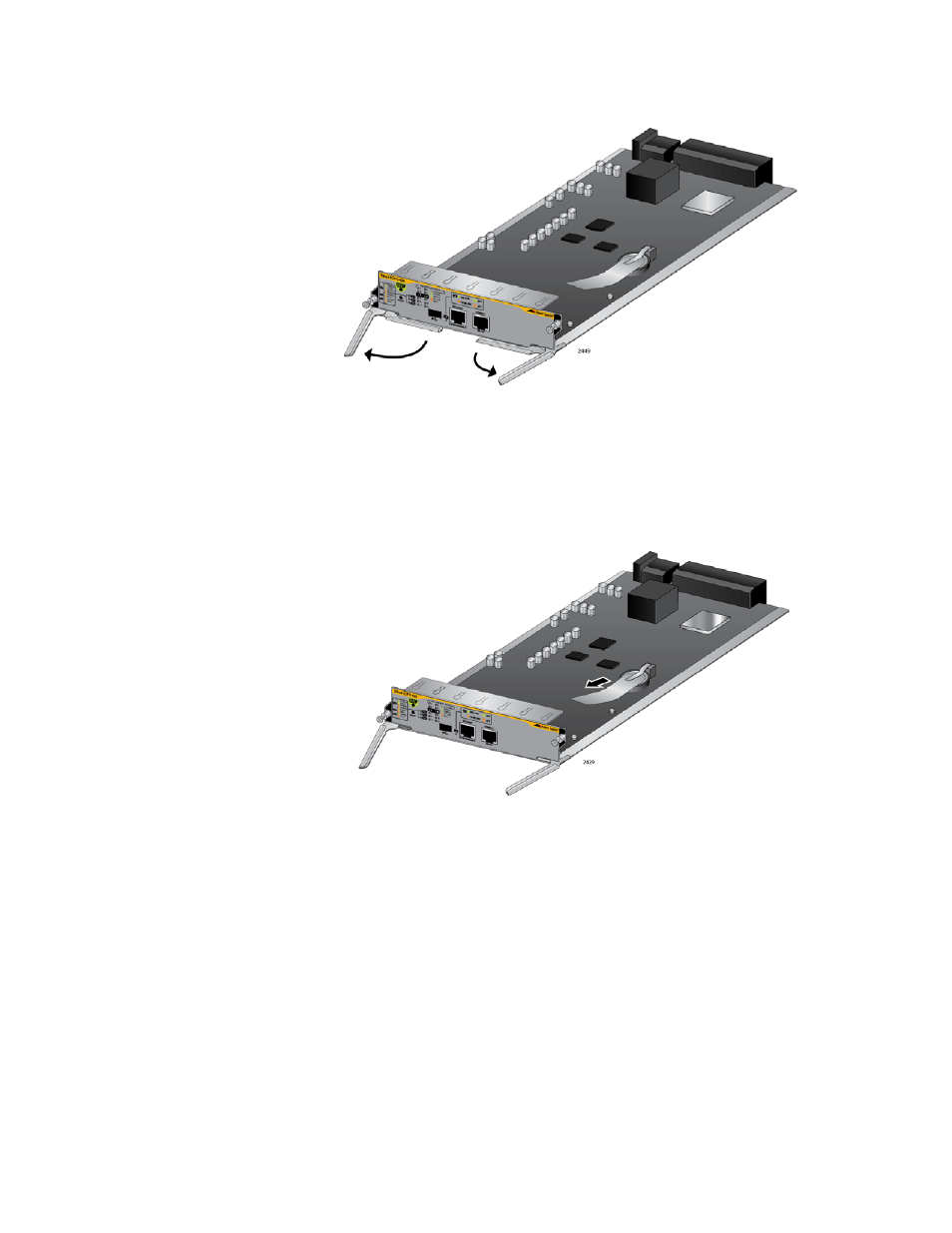

Figure 66. Opening the Locking Handles on the AT-SBx81CFC400
Controller Fabric Card
5. Carefully remove the battery insulator tab on the controller card by
sliding it out from between the battery and battery clip, as shown in
Figure 67.
Figure 67. Removing the Battery Insulator
6. Align the edges of the AT-SBx81CFC400 Controller Fabric Card with
the internal chassis card guides in slot 5 or 6 of the AT-SBx8112
Chassis. Figure 68 on page 113 shows the AT-SBx81CFC400 Card
aligned in slot 5.
