Chapter 10: Replacing Modules

228

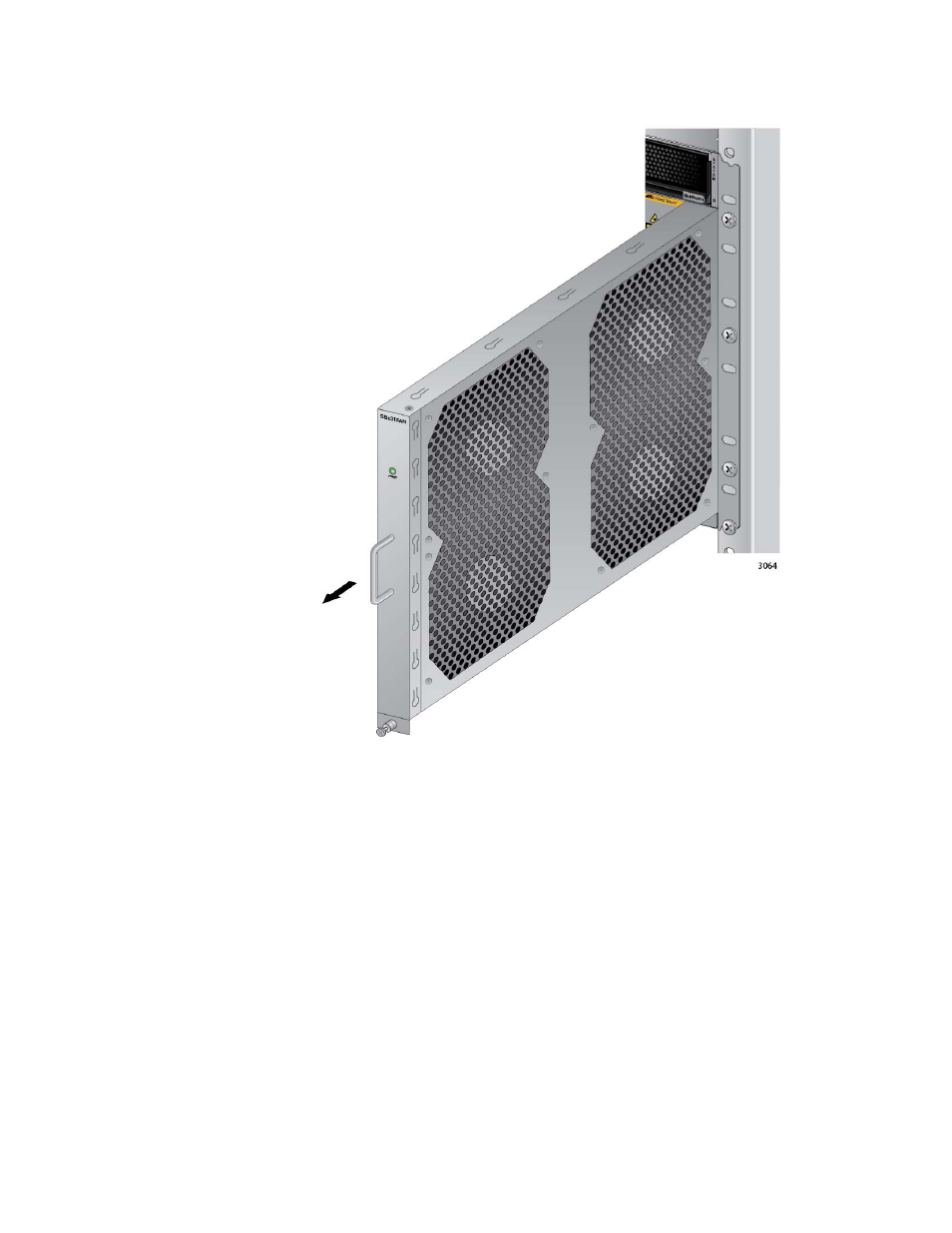

Figure 152. Removing the AT-SBxFAN12 Fan Module from the Chassis

Installing a New

AT-SBxFAN12

Fan Module

This procedure assumes that you have already removed the old fan
module from the chassis and are continuing directly from the previous
procedure, “Removing the AT-SBxFAN12 Fan Module” on page 224. To
install the new fan module, perform the following procedure

1. Orient the new module with the LED and module name on top and

carefully slide the new module into the slot in the chassis. Refer to
Figure 153 on page 229.
