To restore station settings backup with AWS Client, proceed as follows:
1.
Establish connection to the data logger.
2.
Open the Settings menu and choose Parameters and Restore to
logger.
3.
In the file dialog, select the file containing the backup.
0906-067

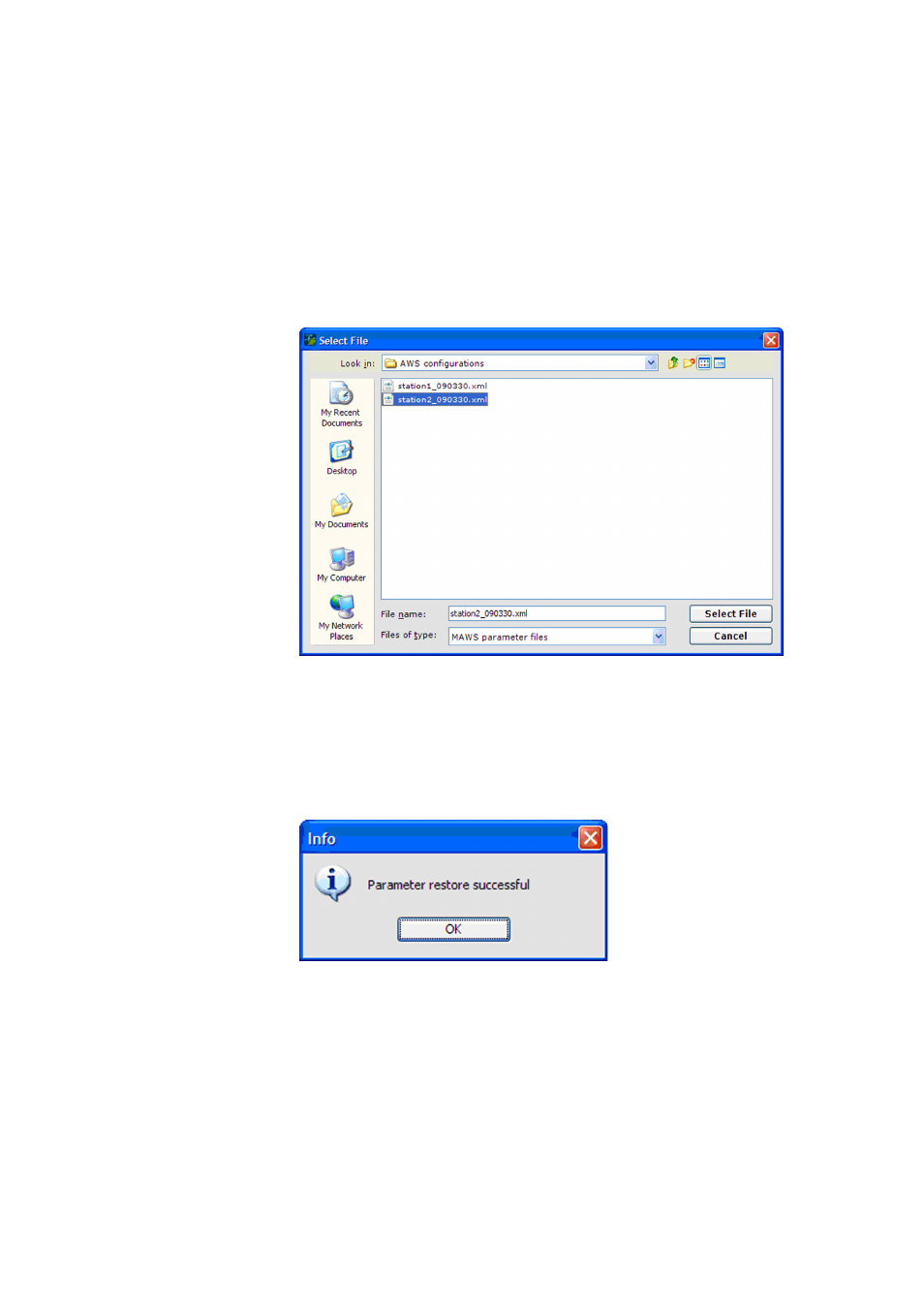

Figure 34
Selecting File for Station Settings Restore
4.
Click Select File to start the restoring.
5.
A file upload progress dialog appears, and the restoring is complete
when AWS Client displays the following message:
0906-068
Figure 35
Parameter Restore Complete
