Chapter 5 ____________________________________________________________ Technical Data
VAISALA______________________________________________________________________ 141
0903-023

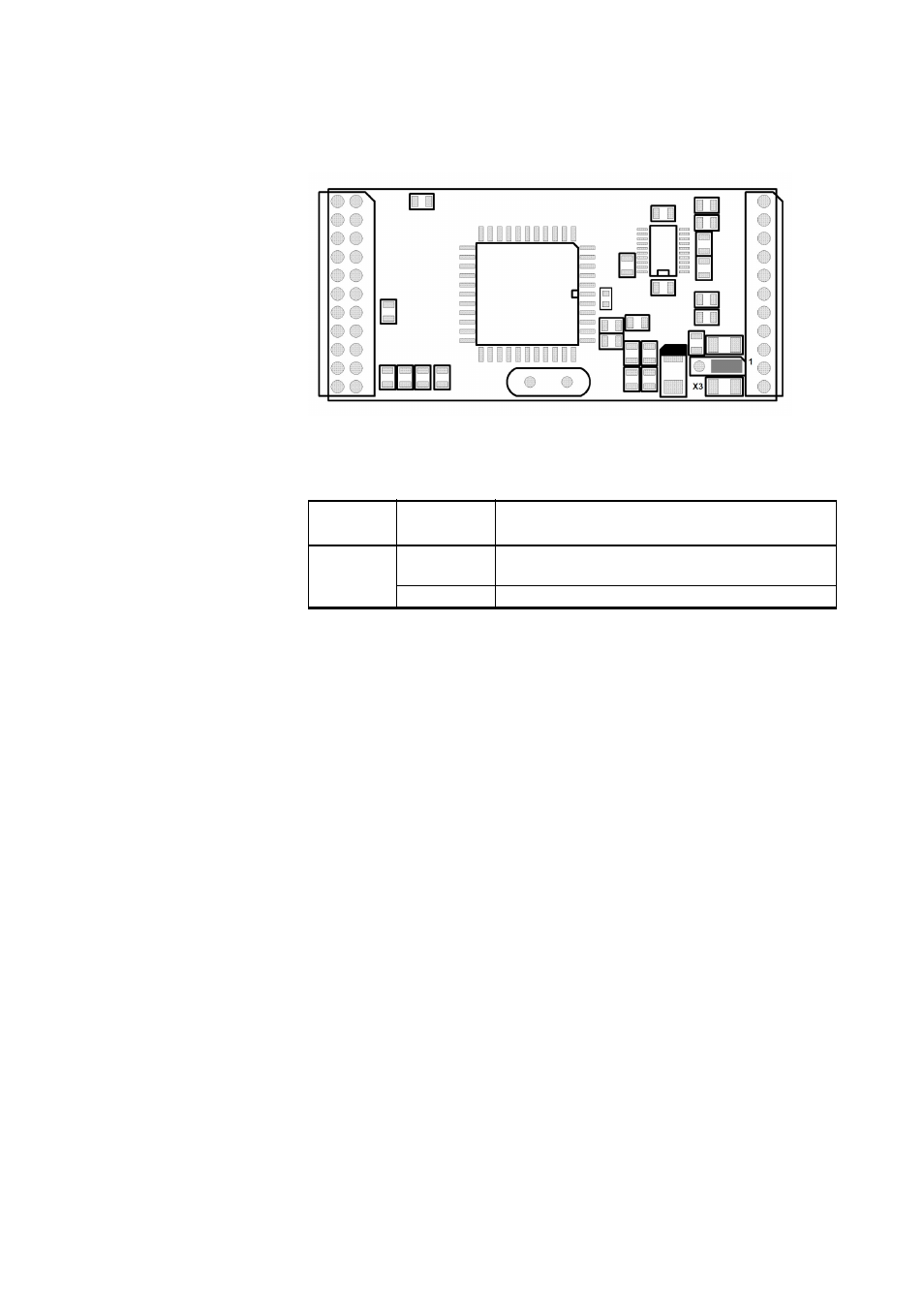

Figure 63
SDI-12 Jumper of DSU232-C
Table 32
DSU232-C Jumper Settings
Jumper
Connected
Pins
Function
X3
1-2
Pin 5 is GND (default, compatible with the old
DSU232)
2-3
SDI-12 connected to pin 5
